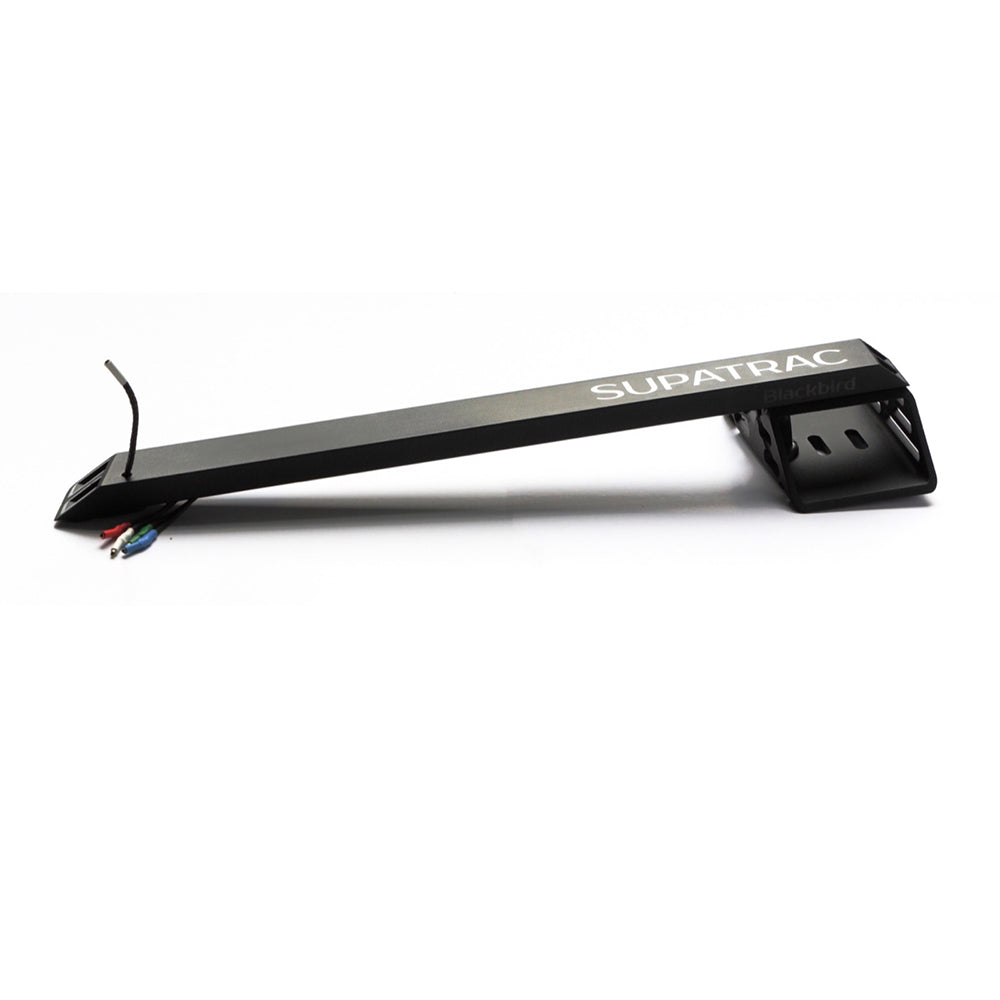

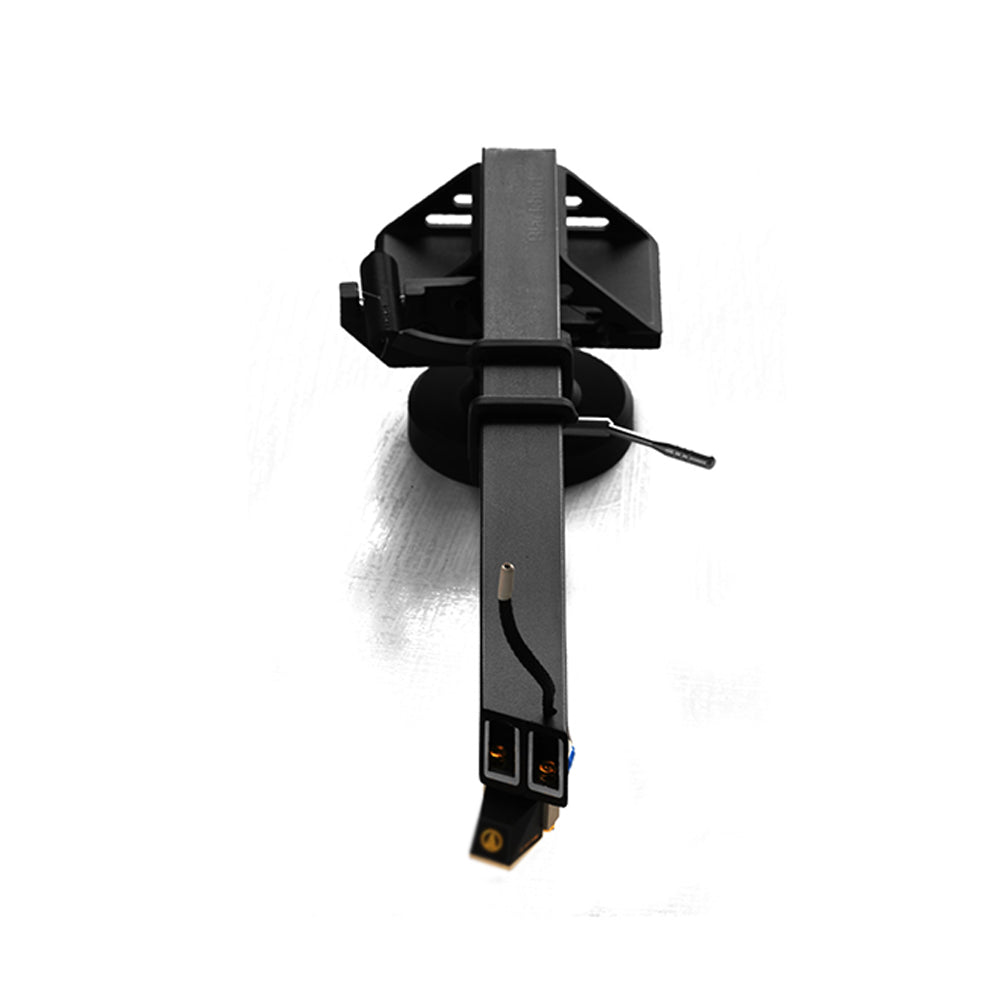

SUPATRAC Blackbird Tonearm

The sideways uni-pivot bearing directly opposes stylus drag at a single point of contact, eliminating microscopic play in the time axis and avoiding the scrubbing and roll movements which can degrade the performance of conventional uni-pivots. The Blackbird's SUPA bearing delivers unprecedented performance.

Available in 9", 9.3", 10.5", and 12".

Reactive Downforce
Loud passages increase stylus drag, producing oscillating vertical torque on normal tone-arms - the stylus can struggle to stay in good contact with the groove. The SUPA bearing pivots just below the record level so that bursts of stylus drag produce a slight downwards torque, just when it's needed.
That's how the Blackbird hugs the groove with tenacity during punchy dynamics. Torque-Reaction-Assisted Contact (TRAC) plays the hottest grooves with less distortion.

Perfect Timing
The Blackbird is designed to resist the pull of the cartridge with unyielding rigidity on the microscopic scale. Only by maintaining a perfect position in the groove’s time axis can a cartridge reproduce the true shape and explosive energy of a recorded signal. By directly opposing the oscillating drag forces from the cartridge, the SUPA bearing avoids scrubbing, chatter and the resulting time errors which can frustrate the retrieval of music.

Universal SUPA
The Blackbird is designed to be lightweight and stable, fitting almost any turntable including classics like Linn, Technics, Garrard, Rega and many more. It can be matched with high-compliance cartridges due to its low inertia, and it comes with a mass adaptor to keep low-compliance cartridges under control too, making it compatible with the broadest range of cartridges from Shures to Miyajima Monos.

Blackbird Arm Tube
The Blackbird's arm tube is made of pultruded carbon-fibre. The headshell area is reinforced with aluminium and the tube cavity is filled with a damping foam. The arm tube is clamped firmly to the thrust box with machine screws and steel nuts for high rigidity. The arm forms an exceptionally inflexible and dead structure with tennis-racquet-class strength-to-weight ratio.

Length & Geometry
Due to its construction the Blackbird can be made in any length you desire. You may specify Stevenson geometry instead of the default Baerwald. Headshell slots are 7mm long to accommodate a range of cartridges. Prices for arms longer than 12 inches are available on request.

Inertia
A nine-inch Blackbird has a base effective mass of roughly 10g. A mass adaptor is supplied with all SUPATRAC arms for compatibility with cartridges which suit heavier arms. Multiple mass adaptors can be used with very stiff cartridge suspensions because the SUPA bearing does not bear the arm's weight. It is possible to load SUPATRAC arms with a kilogram or more of mass with outlier cartridges, without compromising arm performance.

Wires
The Blackbird is designed for maintenance and modification. If you have specific wiring requirements, the internal wiring is easily replaced. By default the internal wiring is 30/0.04mm silk-covered copper litz. If supplied, arm cables come with straight or right-angle DIN connectors as requested.

Finger Lifters
The Blackbird comes with an additional rigid finger lift for those who do not wish to use the string finger lift.
However, the elegant simplicity of the tress of soft cord is recommended as it protects the cartridge from accidental downward pressure. With the tress you can ensure that the stylus has engaged with the groove at the beginning of the record before you let go, and you can grip it firmly at the end of a record before lifting the stylus out of the groove. Many skeptics have changed their minds after finding there is less stress with the tress.
