Sonus faber Suprema Loudspeaker System

Name: Sonus faber Suprema Loudspeaker System
Brand: Sonus faber
Price: 1000000.0 USD
Availability: InStock

Finish:Red

Red

Wenge

Graphite

Walnut

Product variants

In-Store Only - View store locations and hours

The most ambitious project of Sonus faber to date, Suprema reflects the pinnacle of audio engineering. Building on a legacy of artisanal design and a relentless pursuit of perfection, Suprema honors the 40th anniversary of a brand dedicated to pushing the boundaries of audio excellence.

OVERVIEW

EXTENDING BEYOND CONVENTIONAL LIMITS

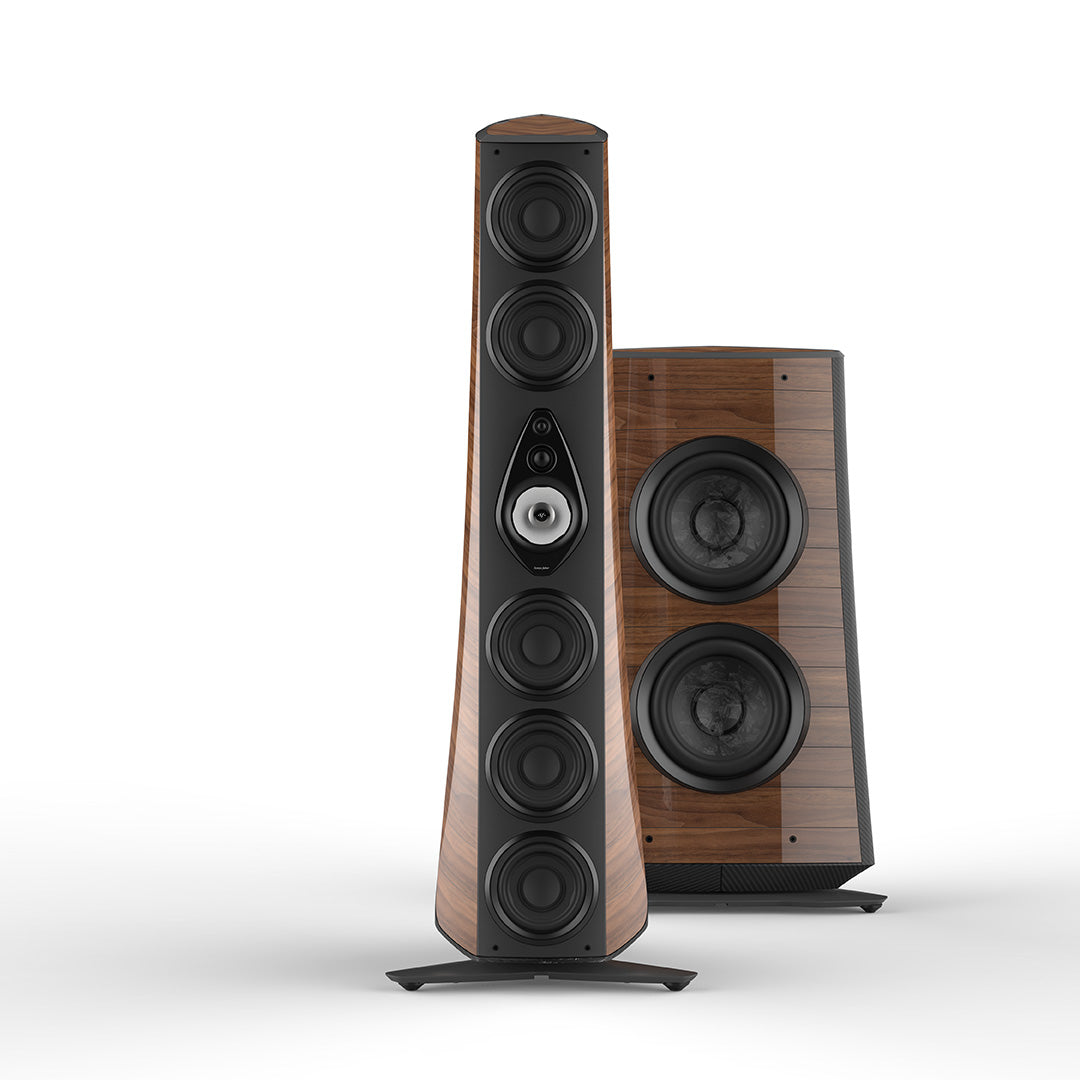

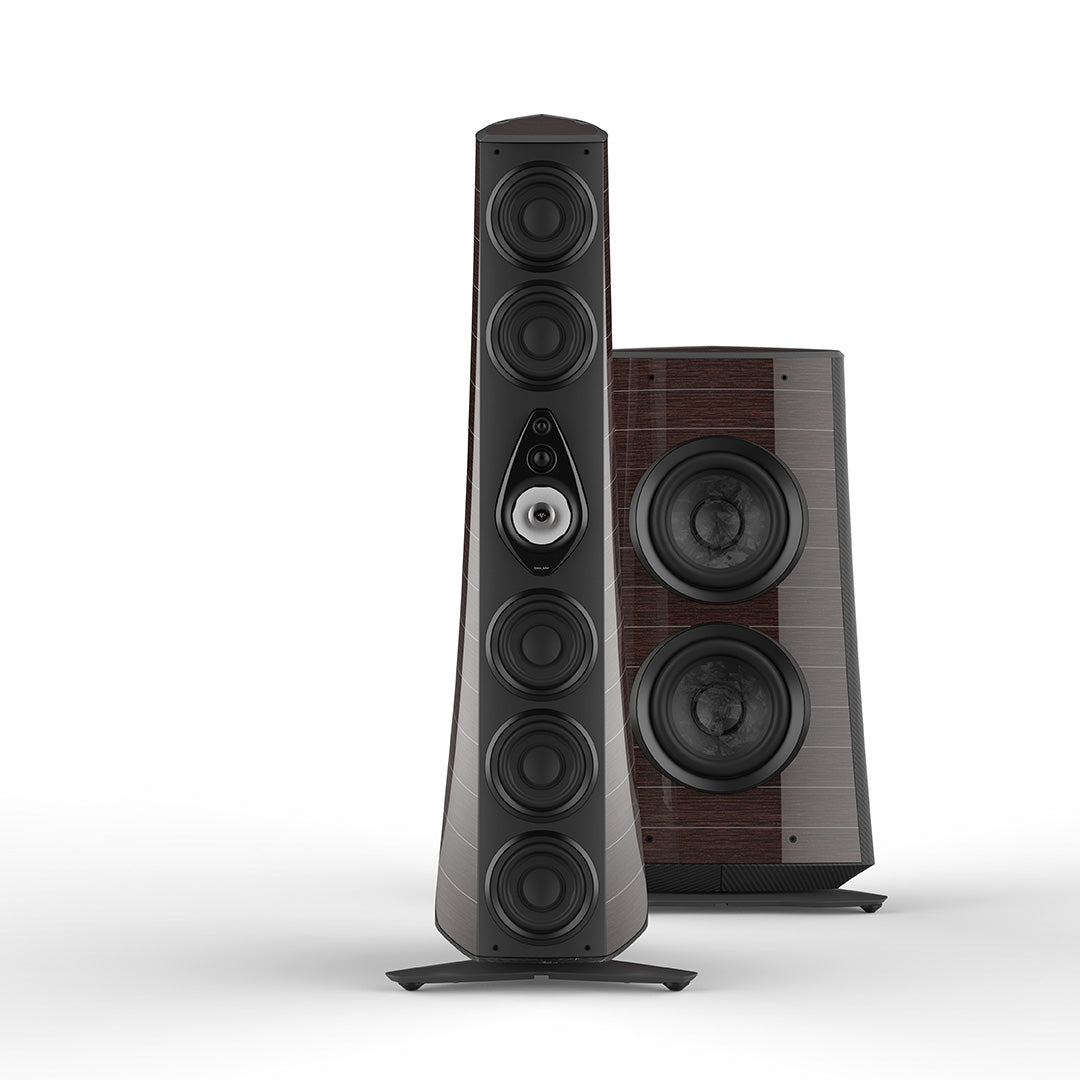

Suprema consists of a sophisticated four column system— two main columns and two subwoofers, and an external electronic crossover. This new design was pioneered by Sonus faber’s engineering team to enhance acoustic performance to new levels of excellence.

FEATURES

LEGACY REDESIGNED

The two main columns of Suprema take the signature Sonus faber lute shape, originally introduced with Guarneri in 1993.

This iconic design represents the optimal solution for enhancing a virtual soundstage while blending seamlessly into the background. The two subwoofers, in contrast, take on Stradivari’s elliptical shape, which is most suitable for the reproduction of low frequencies.

AN INNOVATIVE COMBINATION OF DRIVERS

Each of the two main columns of Suprema is a 4.5 ways system, featuring 2 back-firing speakers in addition to 8 front-firing speakers— 4 dual drive woofers, 1 mid-woofer, 1 Camelia midrange, 1 mid-tweeter, 1 super tweeter. The back-firing speakers improve staging and dispersion while the combination of front speakers allows for unparalleled audio reproduction at every level of frequency.

VOICE OF SONUS FABER, EVOLVED

In developing Suprema, careful attention was paid to maintaining and enhancing the signature Natural Sound of Sonus faber. The configuration of the tweeters and midranges evolves into three brand new elements: one midrange with a cellulose pulp diaphragm, a new mid-tweeter with a treated silk dome, and a new super tweeter with a treated silk dome.

SPECIFICATIONS

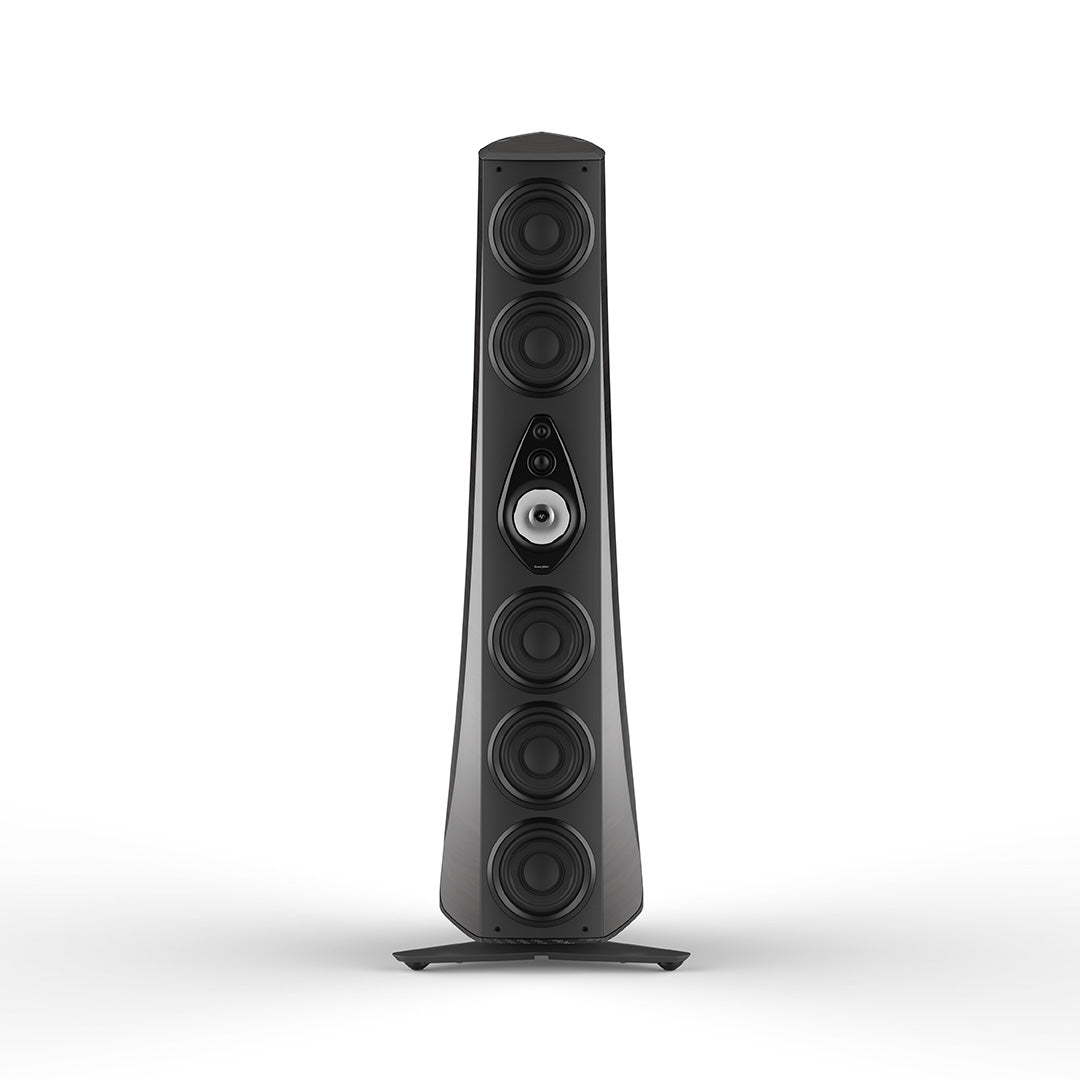

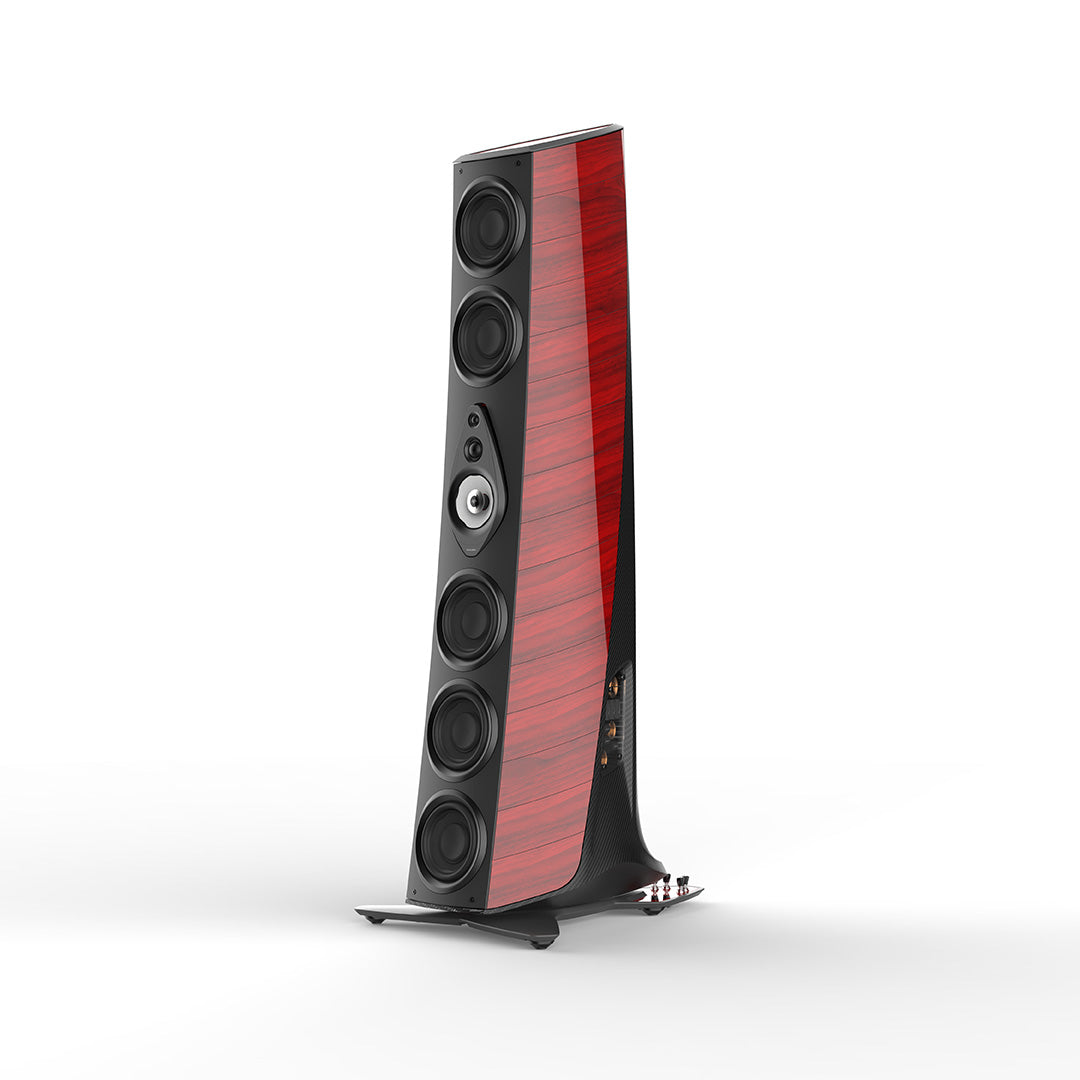

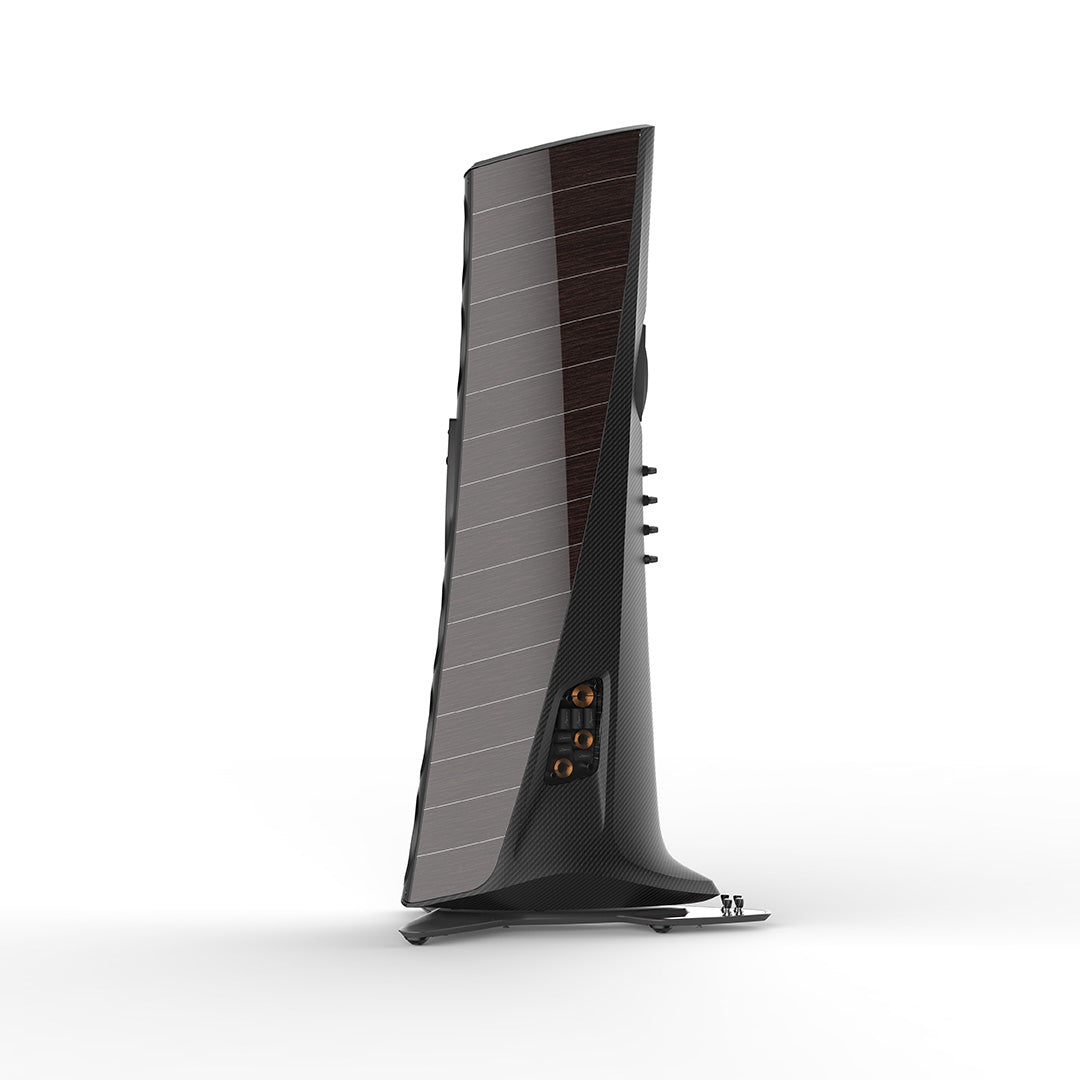

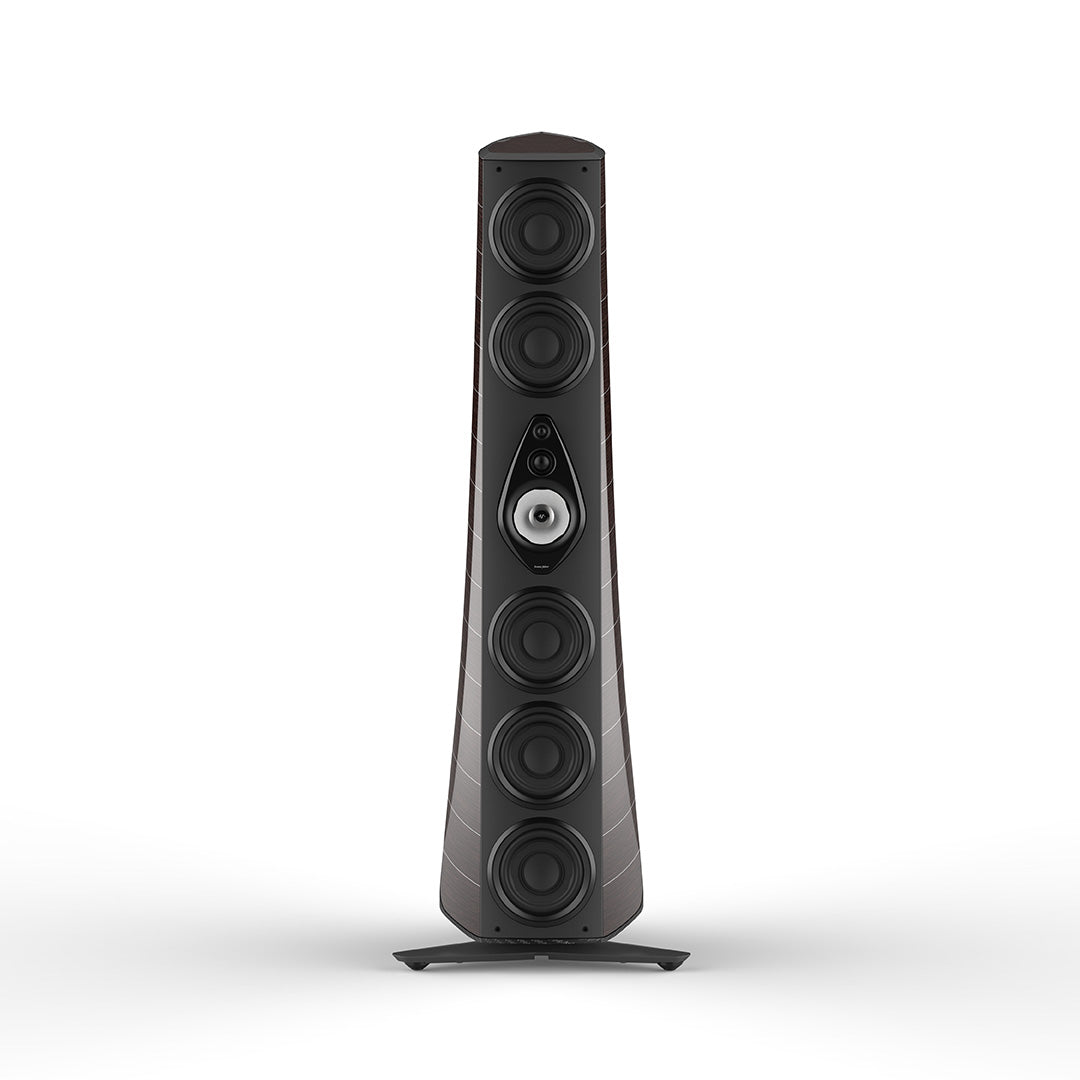

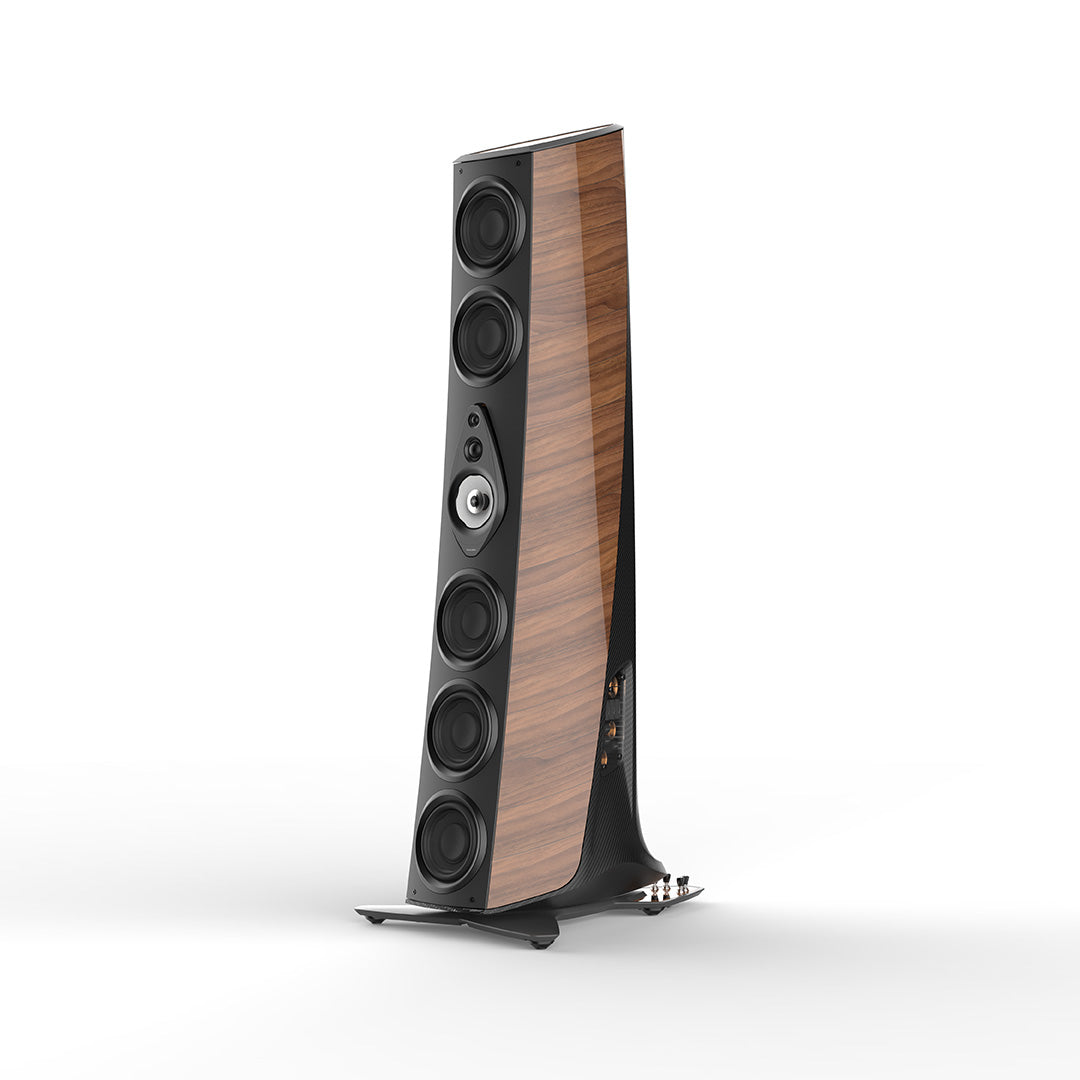

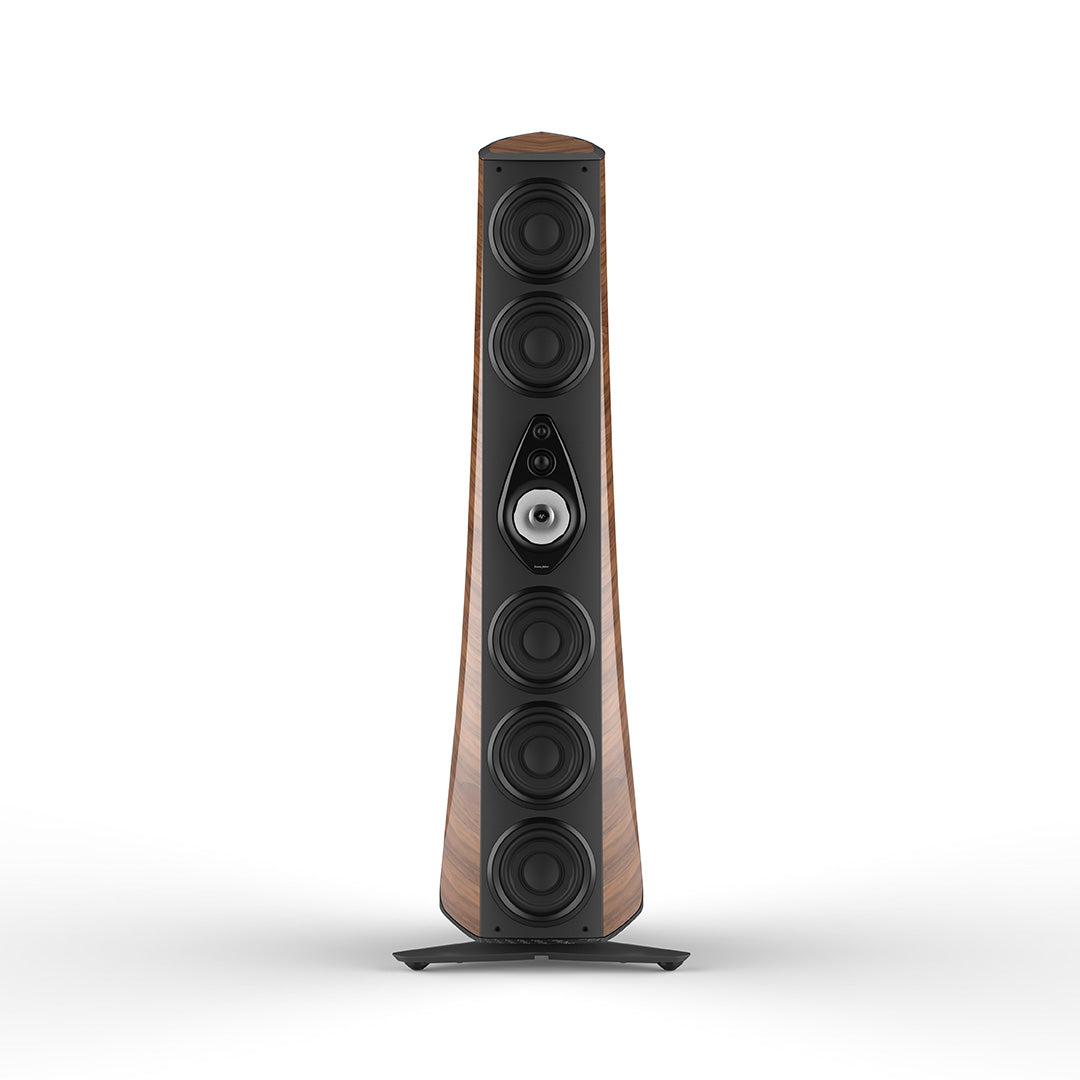

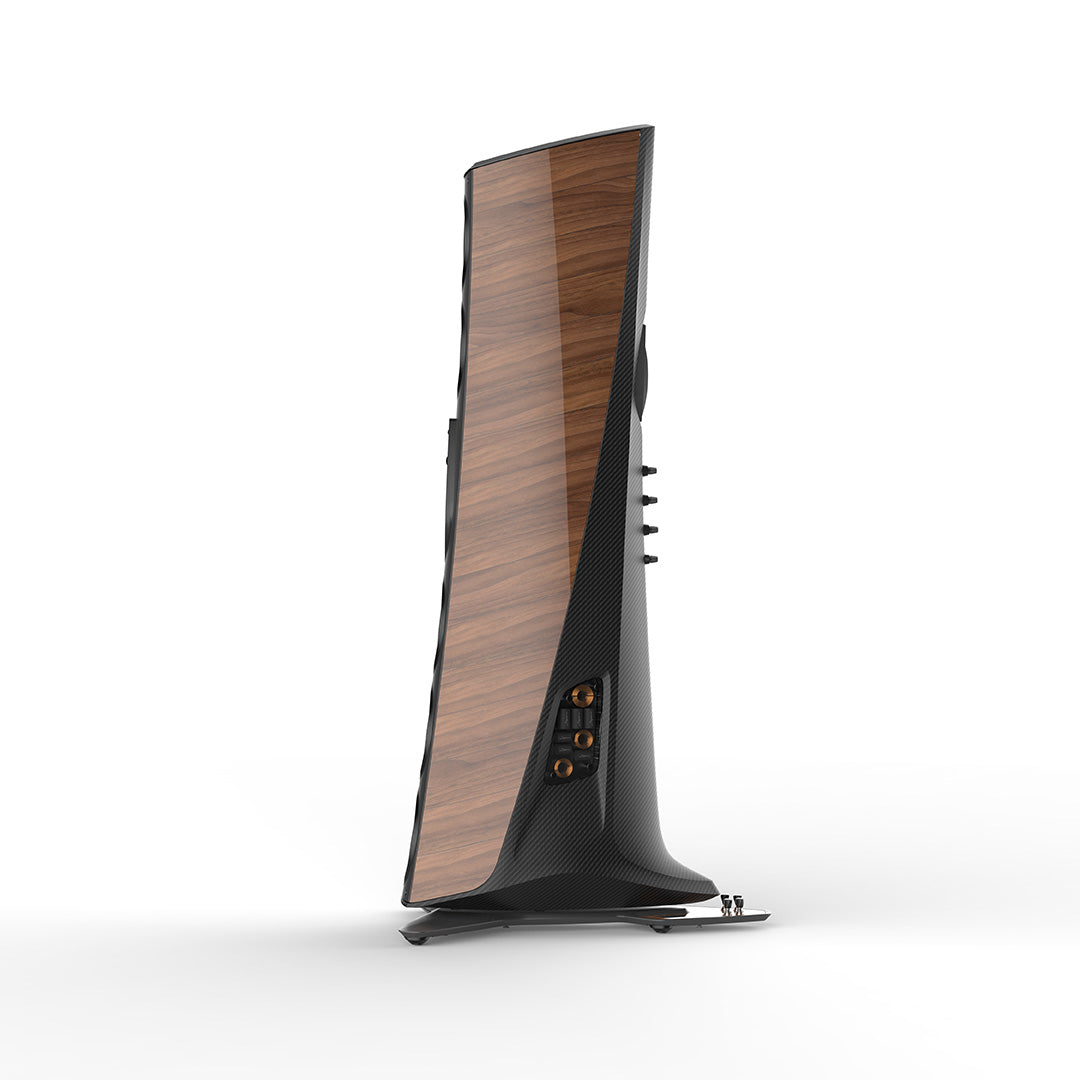

Main Column

System: 4-way sealed box

Loudspeakers:

SUPER TWEETER: 20mm silk dome with dedicated waveguide, neodymium magnet
TWEETER: 38mm silk dome with dedicated waveguide, neodymium magnet
MIDRANGE: 6.5” dual driver motor system with neodymium ring magnet,
LINK MIDWOOFER: 8” neodymium slug magnet, Ø 65mm voice coil, sandwich paper cone
WOOFERS: 4 x 8” dual driver motor system with neodymium ring magnet, Ø 50mm voice coil, sandwich paper cone
BACK EMISSION TW: 28mm silk dome, neodymium magnet
BACK EMISSION MD: 4” paper cone driver, neodymium magnet

Crossover Points:

FRONT EMISSION: 360, 430, 1700, 6700 Hz
BACK EMISSION: 500, 2300 Hz

Frequency Response:

FRONT EMISSION: 45Hz – 40KHz
BACK EMISSION: 500Hz – 20KHz

Sensitivity: 91dB 1m/2.83V

Nominal Impedance: 4 Ohm

Suggested Amplifier Power Output: 100 W – 700 W

Dimensions (HXWXD): 1905 x 650 x 880mm // 75 x 25.6 x 65 in

Weight: 110 kg/pc // 242.5 lb

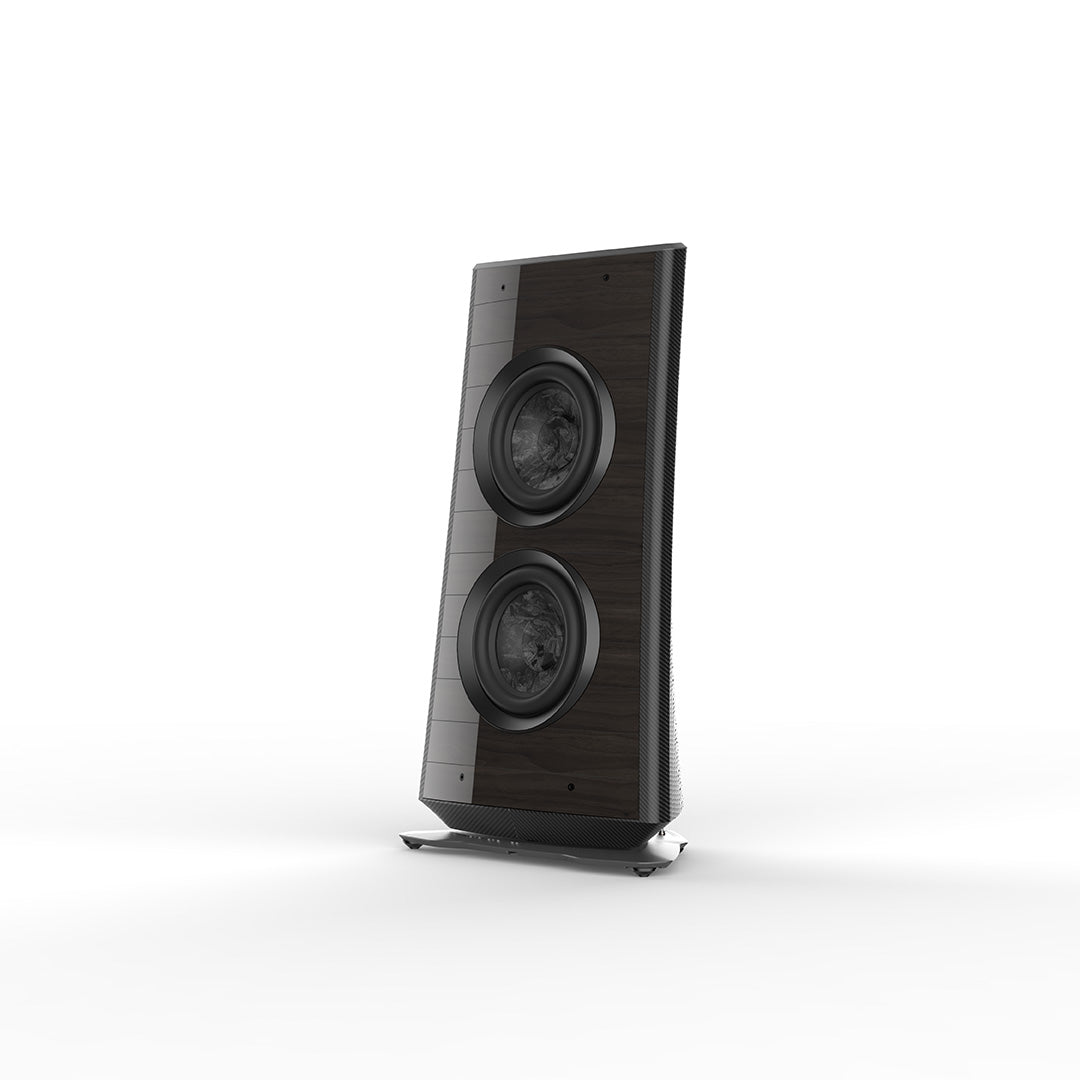

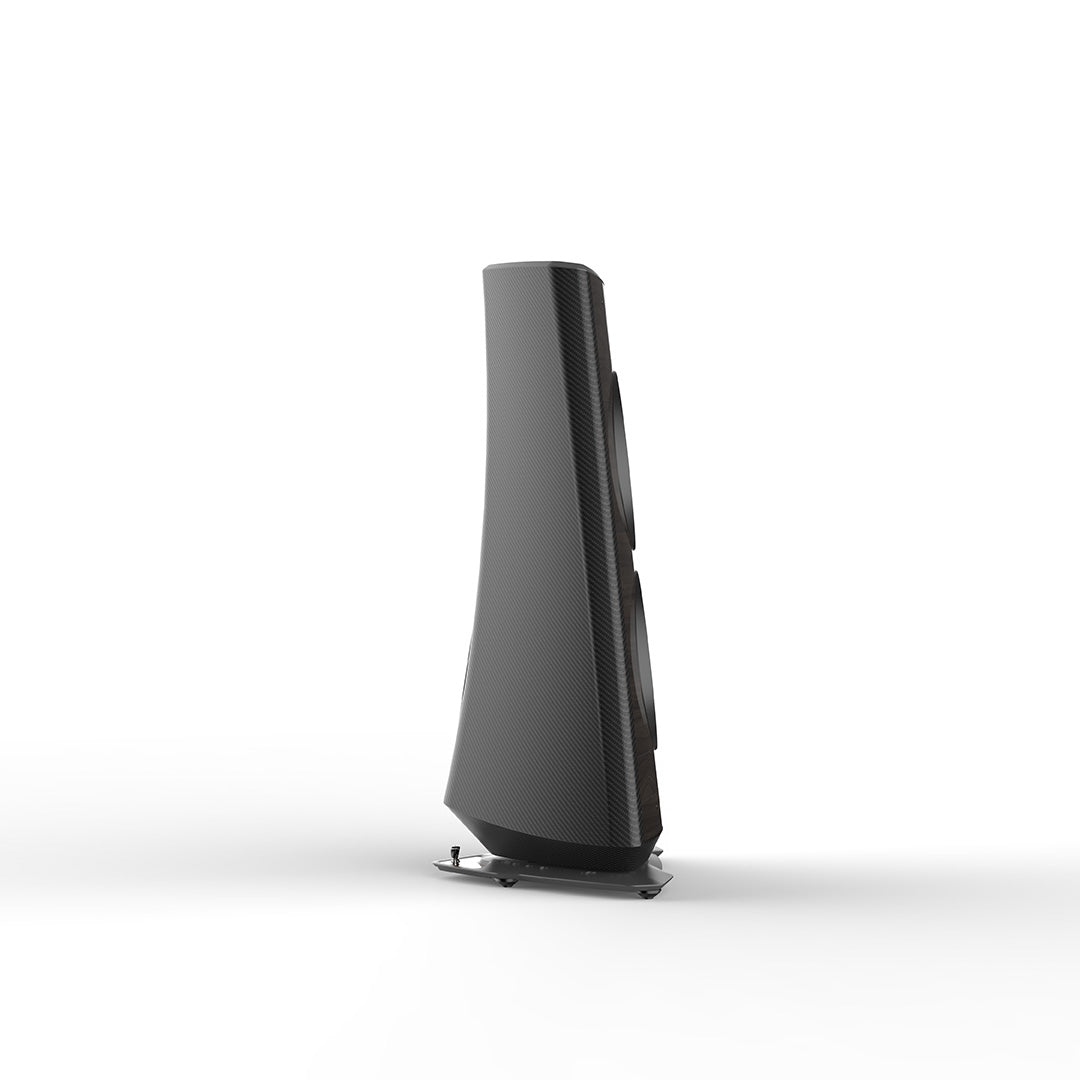

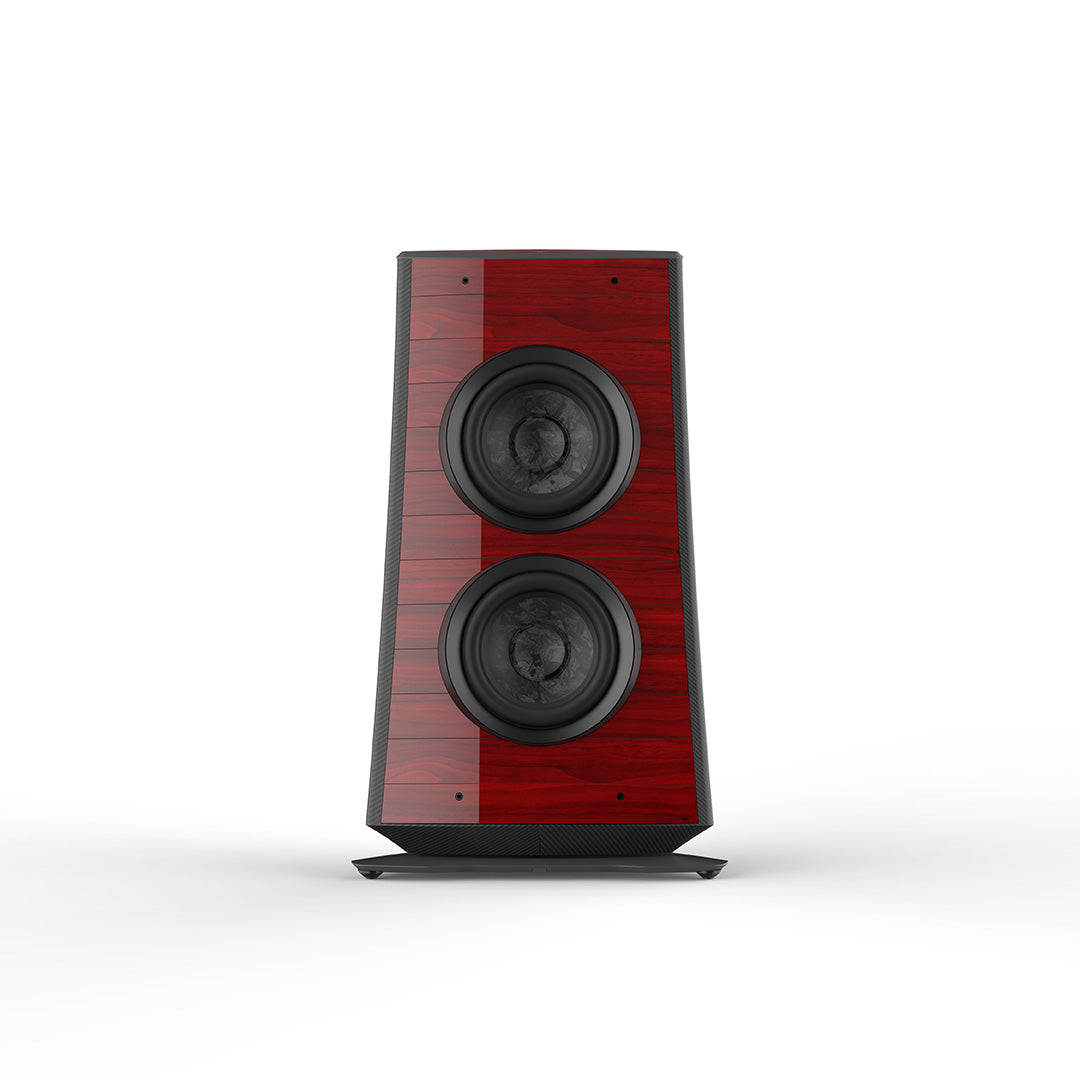

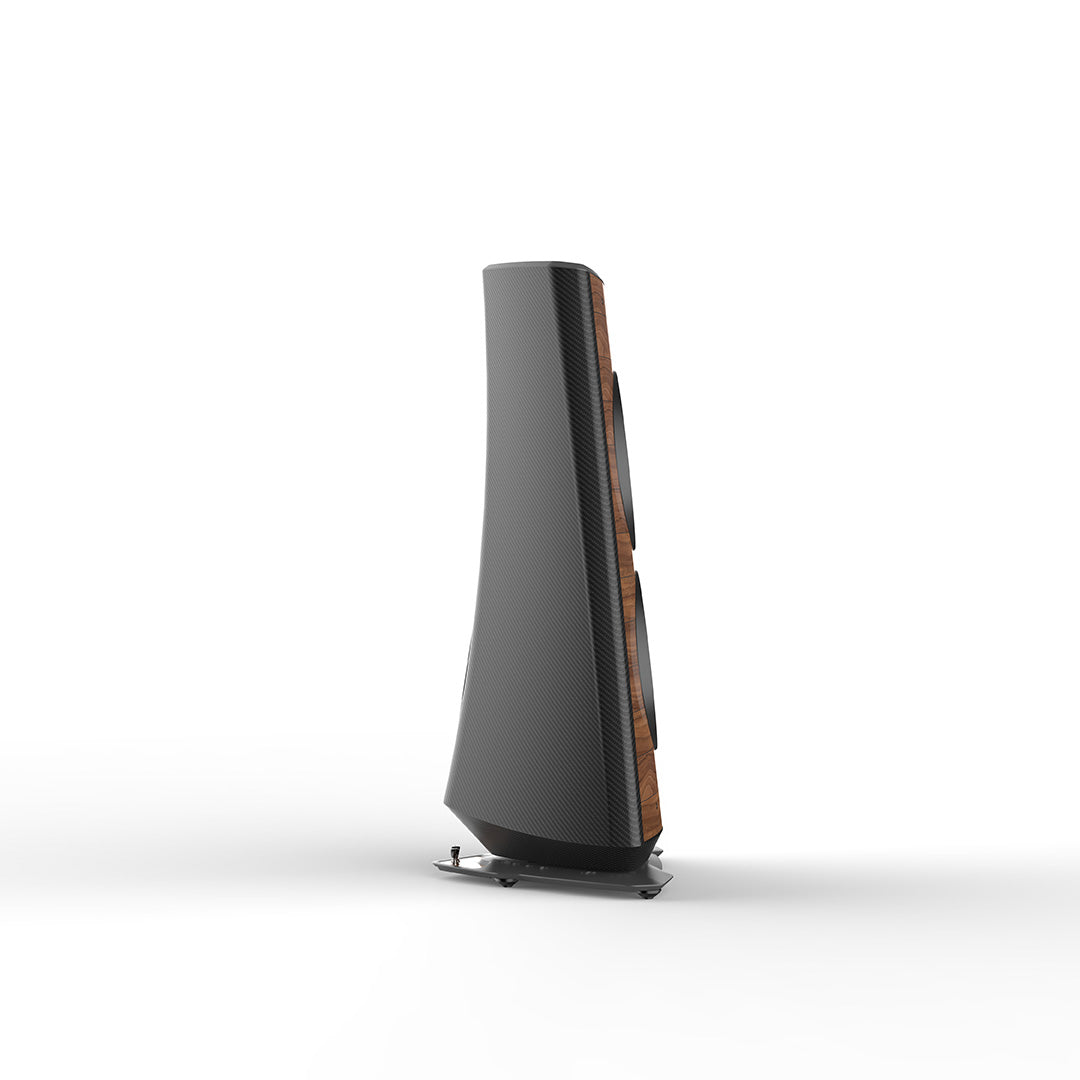

Subwoofer

System: Sealed box loading, passive subwoofer

Loudspeakers:

WOOFERS: 2 x 38 cm carbon fiber sandwich cone

Frequency Response: 16 to 30/80 Hz – variable based on the setting of the electronic crossover

Sensitivity: 92dB 1m/2.83V

Nominal Impedance: 4 Ohm

Suggested Amplifier Power Output: 500 W – 2000 W

Dimensions (HXWXD): 1451 x 850 x 525 mm // 57.1 x 33.46 x 23.42 in

Weight: 103 kg/pc // 227 lb

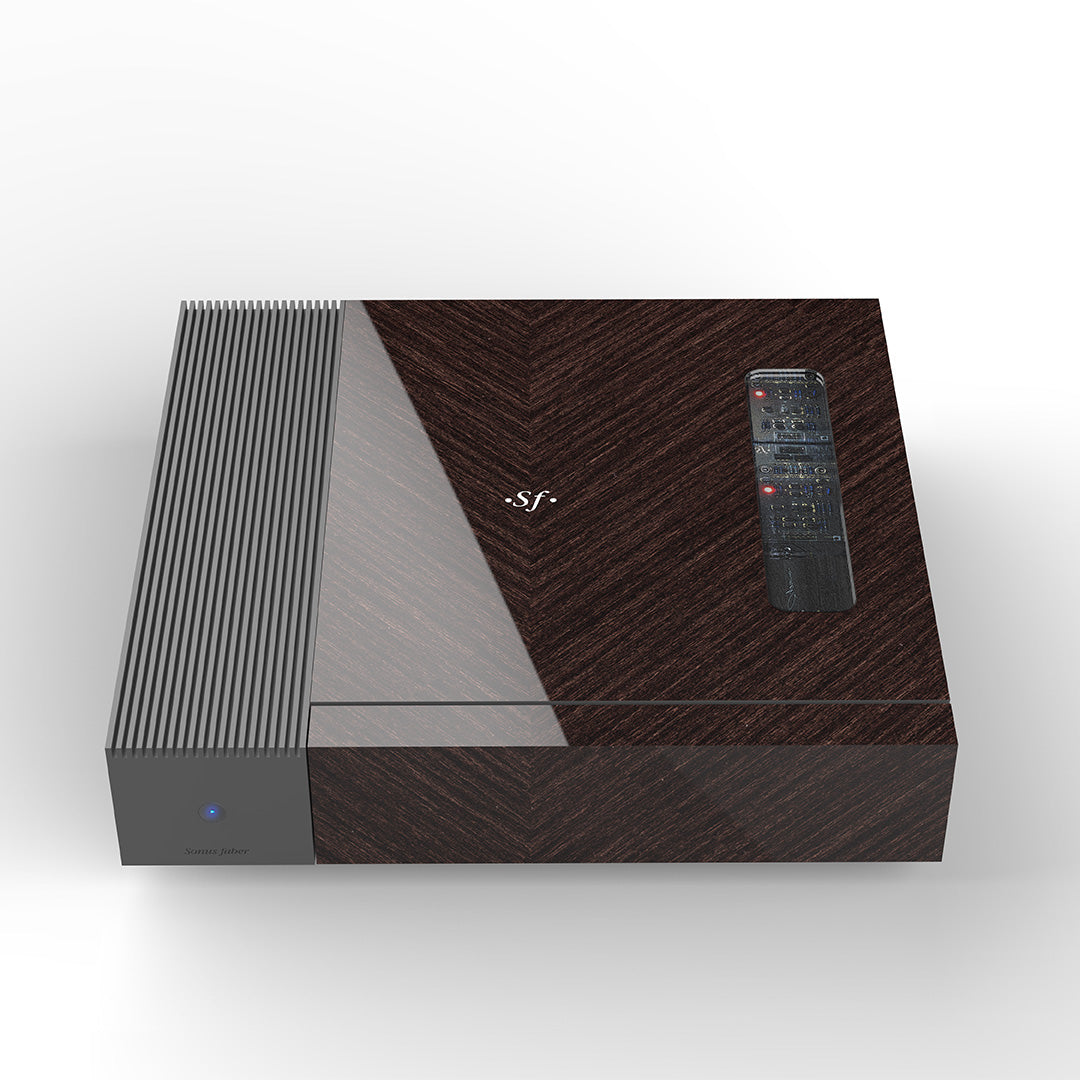

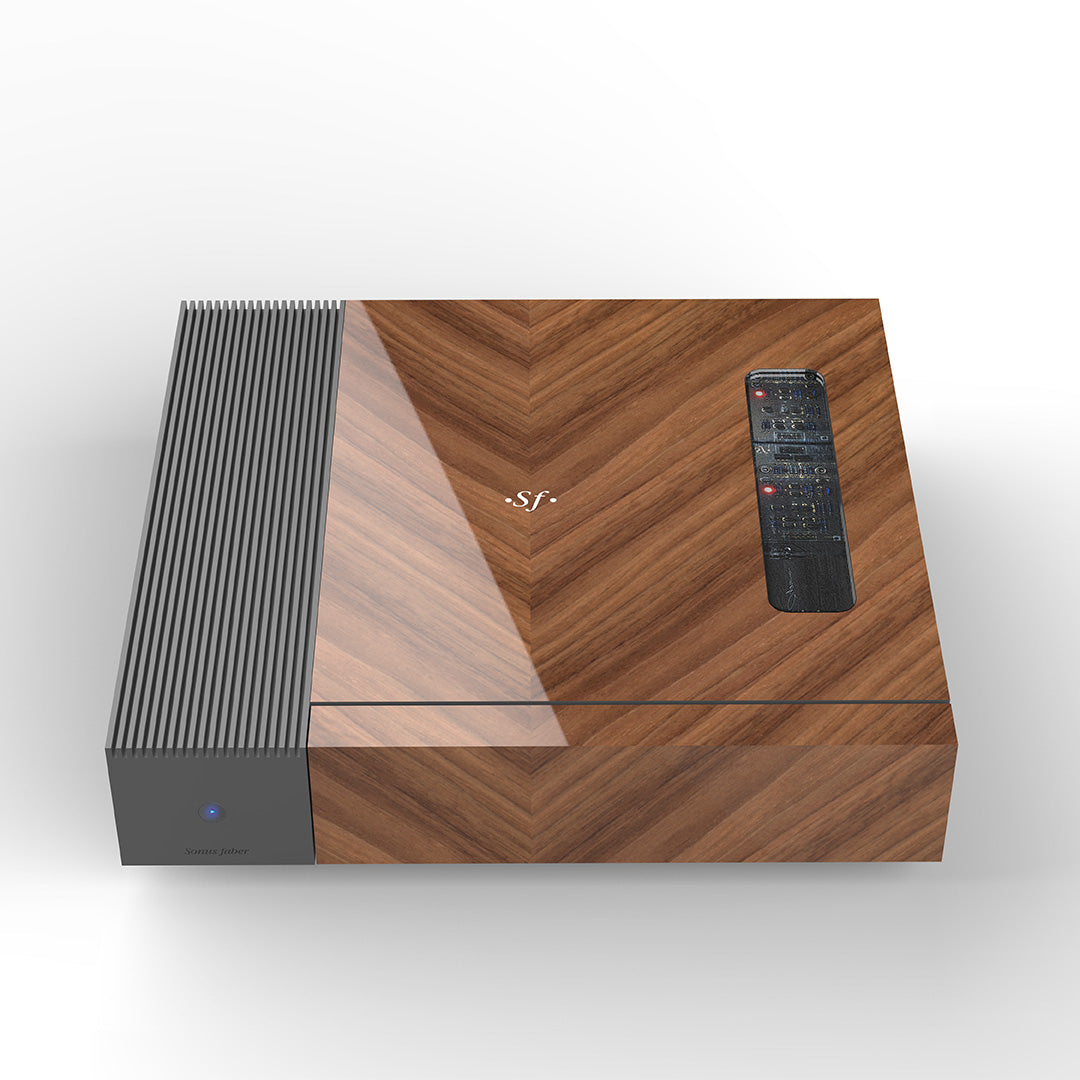

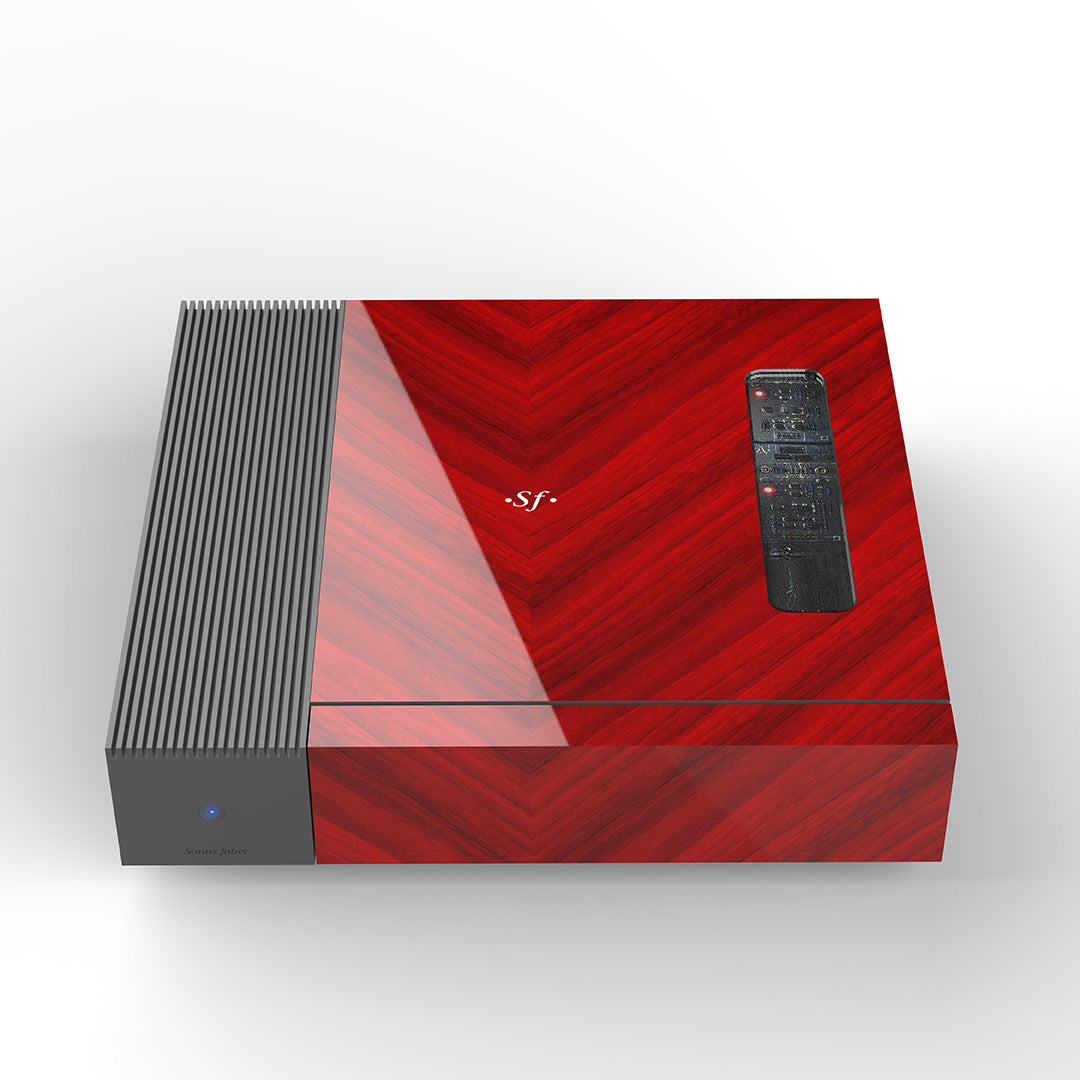

Crossover

System: Full discrete – pure analog stereo/mono active crossover

Input Channels: 2 Unbalanced – 2 Balanced

Output Channels: 8 Unbalanced – 8 Balanced

Frequency Response:

MAIN: 25Hz – 150KHz
PROC: 5Hz – 150KHz

Input Impedance:

UNBALANCED: 20 kΩ
BALANCED: 10 kΩ

Output Driving Capacity:

UNBALANCED: 6 V rms (+15,5 dBv) @ 490 Ω
BALANCED: 11 V rms (+20 dBv) @ 980 Ω

Mains Voltage (Frequency): 115V (60 Hz) or 230V (50 Hz), factory-set

Dimensions (HXWXD): 110 x 451 x 424 mm // 4.3 x 17.7 x 16.7 in

Weight: 17 kg // 37.5 lb
