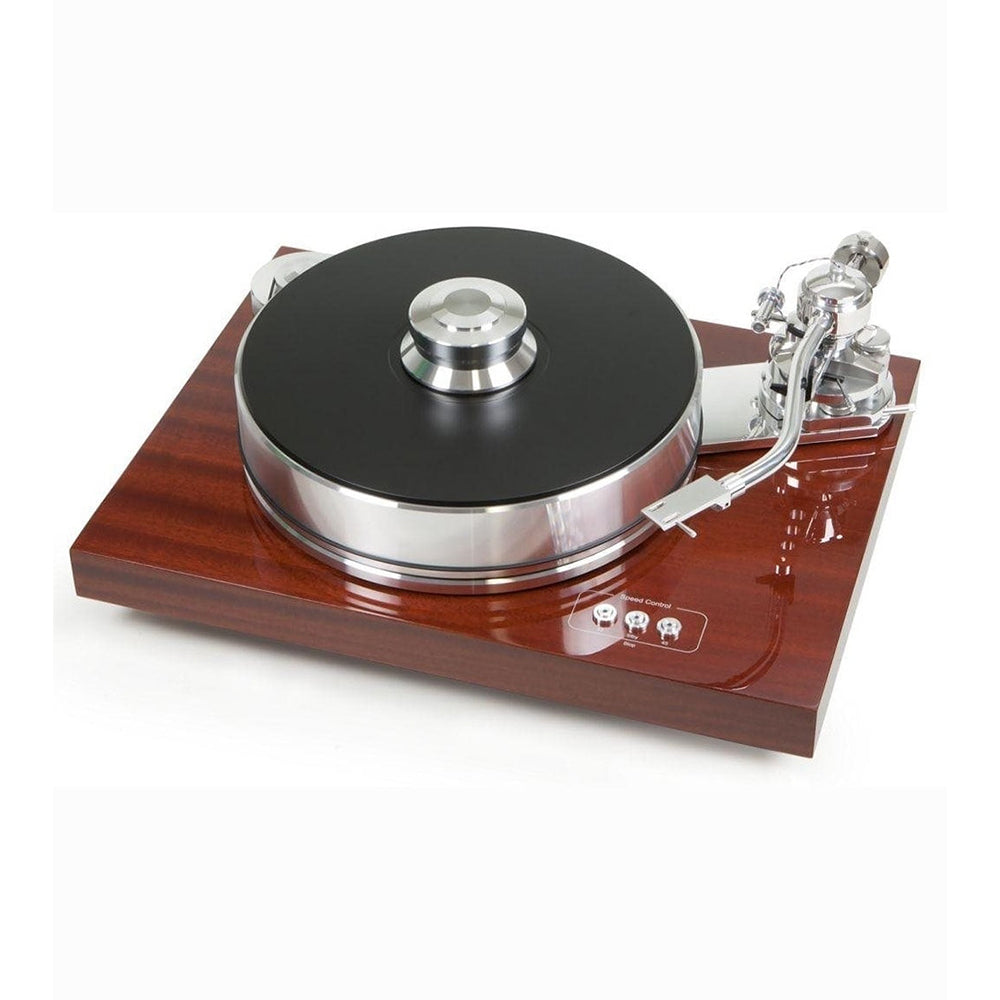

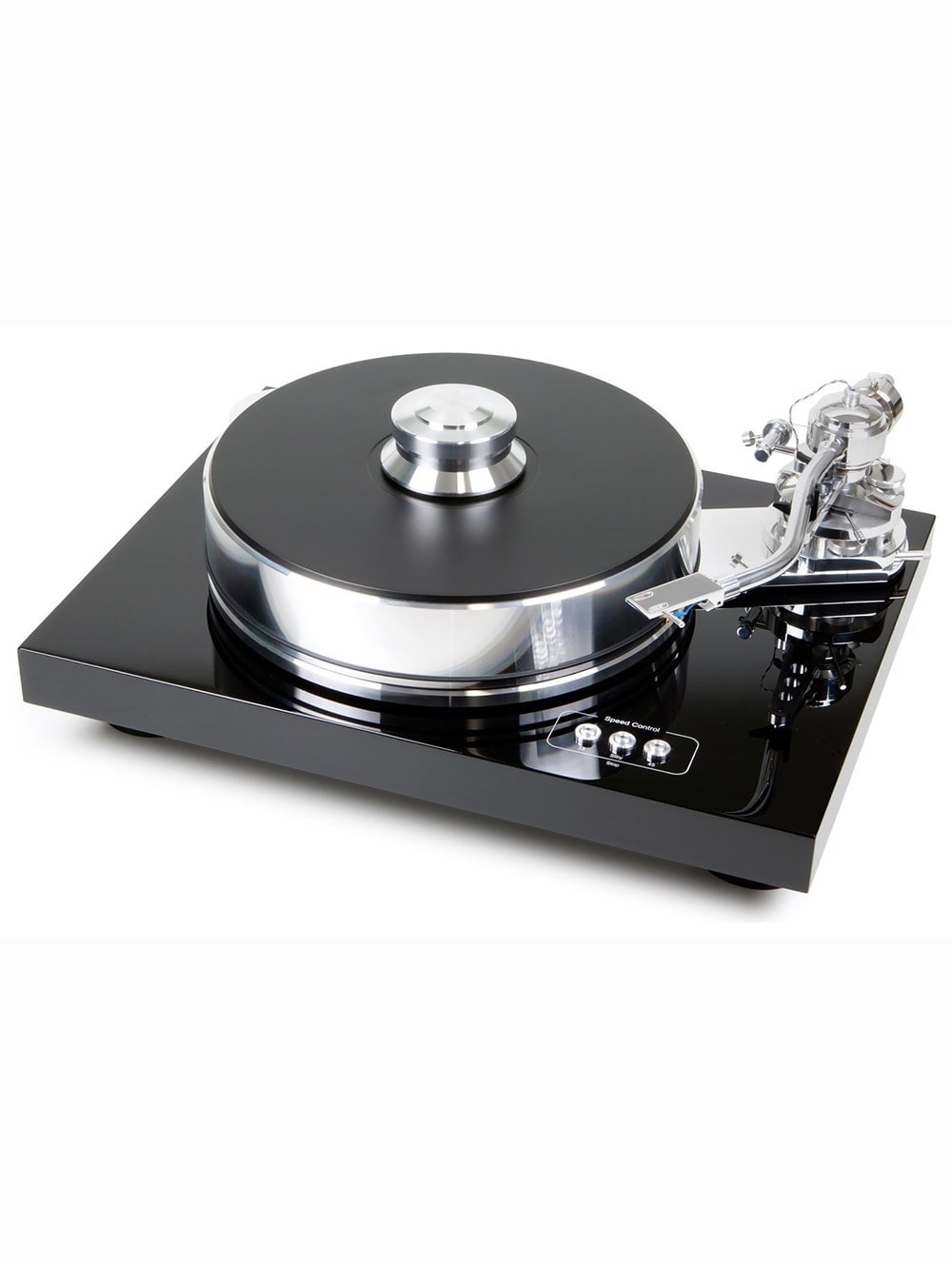

Pro-Ject Signature 10 Turntable
- Price
- $9,999.00
Signature 10 is a non-compromise high end turntable/arm configuration with a sophisticated concept combining mass-loaded and floating turntable principles. Magnetic feet and TPE "pillows" decouple the resonance-free, metal granulate filled MDF chassis from the surface.
The result is a resonance-free heavy platter that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension that is also TPE damped. The new 10" single-pivot tonearm is an exclusive Pro-Ject design. With its wide range of adjustment possibilities and a range of included counterweights, nearly all cartridges can be mounted.
Note: Please allow 6-8 weeks for delivery.
OVERVIEW
Signature 10 is a non-compromise high end turntable/arm configuration with a sophisticated concept combining mass-loaded and floating turntable principles. Magnetic feet and TPE “pillows” decouple the resonance-free, metal granulate filled MDF chassis from the surface. The result is a resonance-free heavy platter that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension that is also TPE damped. The new 10 single-pivot tonearm is an exclusive Pro-Ject design.
With its wide range of adjustment possibilities and a range of included counterweights, nearly all cartridges can be mounted. Signature 10 is an audiophile marvel – one that represents Pro-Ject’s championship in precision engineering and our deep love for music!
Superpack Upgrade
The optional Superpack upgrade includes a Sumiko Pearwood Celebration II cartridge at a significantly reduced price. For years Sumiko has provided the Pearwood Celebration to music lovers seeking the musical experience of the finest and most expensive phono pickups at a more reasonable cost. New advances in material technology and construction techniques have allowed for a significant improvement in sound quality and have resulted in the creation of this new Mark II version. Improvements to the original Pearwood Celebration include a brand new handcrafted Pearwood cartridge body, refined long-grain boron cantilever, and most notably a new ultra low-mass Ogura Jewel Co. P9 Stylus (Vital Design).
TURNTABLE SPECIFICATIONS
• Speed: 33, 45 electronic speed change
• Motor Control System: Precision generator
• Platter: 10.40 kg TPE damped
• Mains bearing: Ceramic (ball/plate), magnetically decoupled
• Tonearm: 10″ single-pivot, alu (SME headshell)
• Effective arm length/overhang: 254.8 mm / 16 mm
• Effective arm mass: 15.5 g
• Suitable cartridge mass: 4 – 10g, several counterweights included
• Tonearm cable included: Pro-Ject Connect it 5P-C
• Power supply: 16Volt DC/1600 mA included
• Standby power consumption: < 1 watt
• Dimensions (WxHxD): 475 x 350 x 188 mm
• Weight: 22.5 kg net
• Warranty: 2-Years
CARTRIDGE SPECIFICATIONS
• Cartridge Type: Moving Coil
• Suspension: Synthetic Rubber
• Frequency Response: 10Hz-40Khz +/- 1.5dB
• Output Voltage/Channel: 0.5mV (3.54 cm/sec., 1kHz)
• Channel Separation: 30dB @ 1kHz
• Channel Balance: 0.5dB @ 1kHz
• Optimum Tracking Force: 2.0 grams
• Tracking Force Range: 1.9 ¬ 2.2 grams
• Dynamic Compliance: (x10-6 cm/dyne)12
• Internal Impedance:30 Ohms
• Capacitance Range: 100 ¬ 300 pf
• Cantilever: Long grain Boron
• Stylus Size/Shape: Ultra low-mass Ogura Jewel Co. P9 Stylus
• Output Terminals: Unique gold plated tapered brass pins
• Load Impedance: 100-1k Ohms
• Cartridge Weight: 7.0 grams
• Mounting System Standard: 0.5” hole spacing, threaded M2.5
