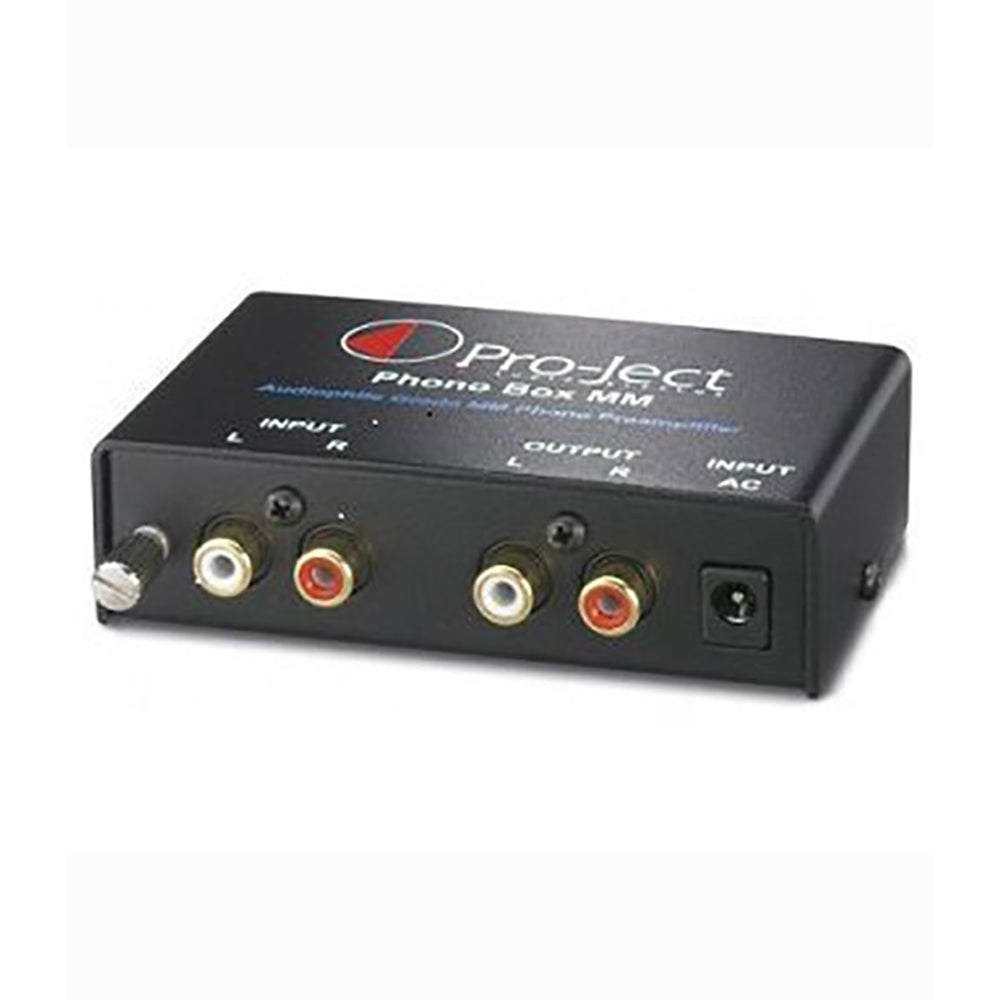

Entry-level audiophile MM phono stage!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box MM is an ideal phono preamplifier for these hifi systems. Phono Box MM offers an audiophile music experience at an entry-level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level.
OVERVIEW
Entry-level audiophile MM phono stage!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box MM is an ideal phono preamplifier for these hifi systems. Phono Box MM offers an audiophile music experience at an entry-level price.
Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box MM can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box MM can be connected easily to a line-input (AUX etc) of your amplifier.
SPECIFICATIONS
• Input impedance: 47kohms/100pF Gain 32dB
• Output voltage: typically 200mV/1kHz at 5mV/1kHz
• Noise floor: 82dB (88dB – A weighted)THD<0.05%
• RIAA-equalisation curve: accuracy 20Hz – 20kHz / max. 0.5dB
• Power consumption: 16V/40mA
• AC: Outboard power supply 16V/200mA
• Dimension: W x H x D: 4.13 x 1.18 x 2.95 inches
• Weight: 0.62 oz without power supply
• Warranty: 2-Years
