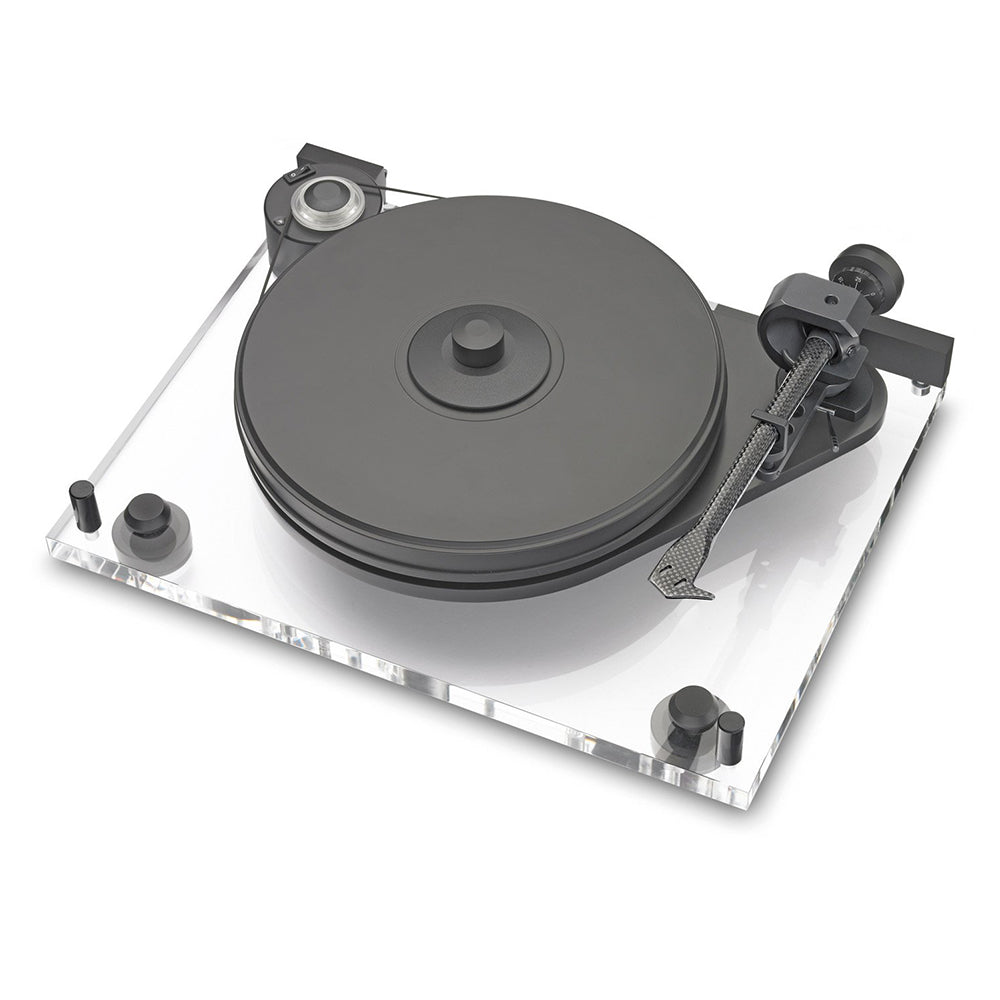

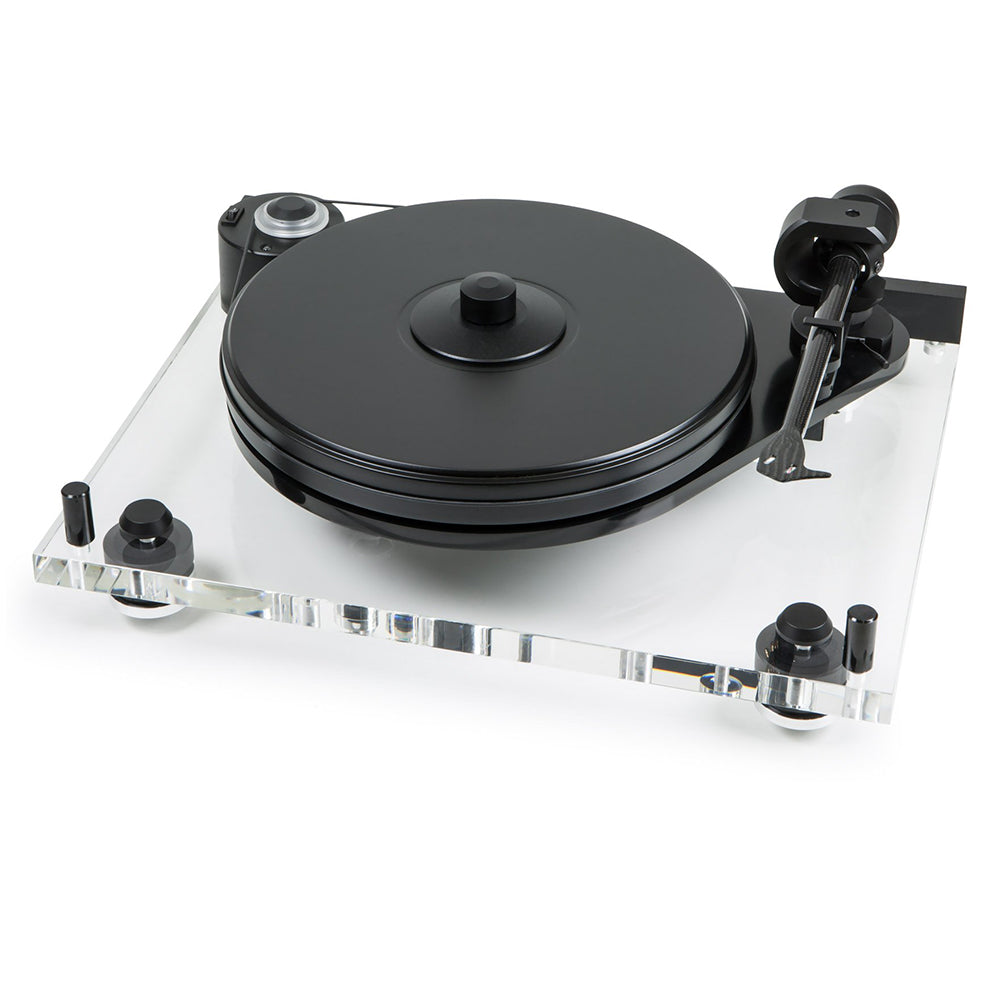

The new 6 Perspex SB is constructed using a visually stunning, clear acrylic plinth. Floating above the plinth is a sophisticated sub-chassis system made of Corian suspended by three height adjustable opposing magnet fields.
Available in transparent acrylic with black details. An optional Superpack upgrade includes a Sumiko Amethyst Cartridge.
OVERVIEW
The new 6 Perspex SB is constructed using a visually stunning, clear acrylic plinth. Floating above the plinth is a sophisticated sub-chassis system made of Corian suspended by 3 height adjustable opposing magnet fields. Additional features include: a bonded MDF platter with vinyl mat, a threaded record clamp, and adjustable cone feet. A new 9″ tonearm, the 9cc Evolution, incorporates a conical carbon fiber armtube with an integrated headshell made of a single piece of carbon fiber. Additionally, the new ultra-rigid bearing assembly gives the option to use more massive and lower compliant moving coil (MC) cartridges. Female chassis-mount RCA connectors on the rear panel allow for the use of any single-ended interconnect cables.
Available in transparent acrylic with black details.
Superpack Upgrade
The Superpack Upgrade includes a premium Sumiko Amethyst Moving Magnet cartridge, hand-made in Japan by the cartridge experts at Sumiko. Supplied counterweights are suitable for cartridges weighing between 5-14 g. Also supplied in the box is the Connect-IT E RCA cables, a semi-balanced, low-capacitance cable with superior shielding that’s optimized for turntable use.
FEATURES
• Magnet supported sub-chassis decouples platter and tonearm.
• Tonearm bearing comprises inverted hardened stainless tips in ABEC7 spec ballraces.
• Headshell and conical armtube formed from a single piece of carbon fiber.
• Armtube allows adjustment of needle azimuth despite fixed headshell.
• Vertical tracing angle adjustable.
• MDF platter with perimeter belt drive, vinyl playing surface and record clamp.
• Inverted main bearing with ceramic thrust-pad.
• Sorbothane-damped aluminum cones.
• Pro-Ject 9cc Evolution tonearm.
• Nominal speeds 33 / 45 rpm.
• Record clamp included.
• Gold-plated RCA phono sockets.
• Dust cover included.
• Transparent acrylic plinth.
• Pro-Ject spirit level supplied.
SPECIFICATIONS
• Nominal speeds: 33/45 r.p.m.
• Speed Variance: ±0.5%
• Wow & Flutter: ±0.06%
• Signal-to-Noise: -73dB
• Effective Tonearm Length: 9 ” (230 mm)
• Effective Tonearm Mass: 8g
• Overhang: 18 mm
• Power Consumption: 2W
• Outboard power supply: 16V/500mA AC, suitable for your country’s main supply
• Dimensions (WHD): 460 x 183 x 365 mm, dust cover open 460 x 420 x 465 mm
• Weight: 10.5 kg
• Warranty: 2-Years
