Today’s AC power is littered with byproduct from the operation of millions of personal computers, satellite set-top boxes and myriad other noise inducing devices.
The new MPC1500 Power Controller provides total isolation, low noise, and maximum power transfer to enable the best performance possible from your McIntosh components.
OVERVIEW
At the heart of the MPC1500 is a large but quiet toroidal isolation transformer that has been specially wound to act as a low pass filter to remove unwanted noise from the AC line.
The MPC1500 also employs a quick-acting surge suppression module that activates when the voltage reaches approximately 2V above nominal operating levels. This excess voltage is slowly and harmlessly released to the circuit’s neutral wire rather than the ground wire, where it could still find its way to your audio components and cause damage. Unlike surge protection devices that use other suppression methods or “power conditioners,” the MPC1500’s suppression module is not sacrificial and will not need replacing after a surge event.

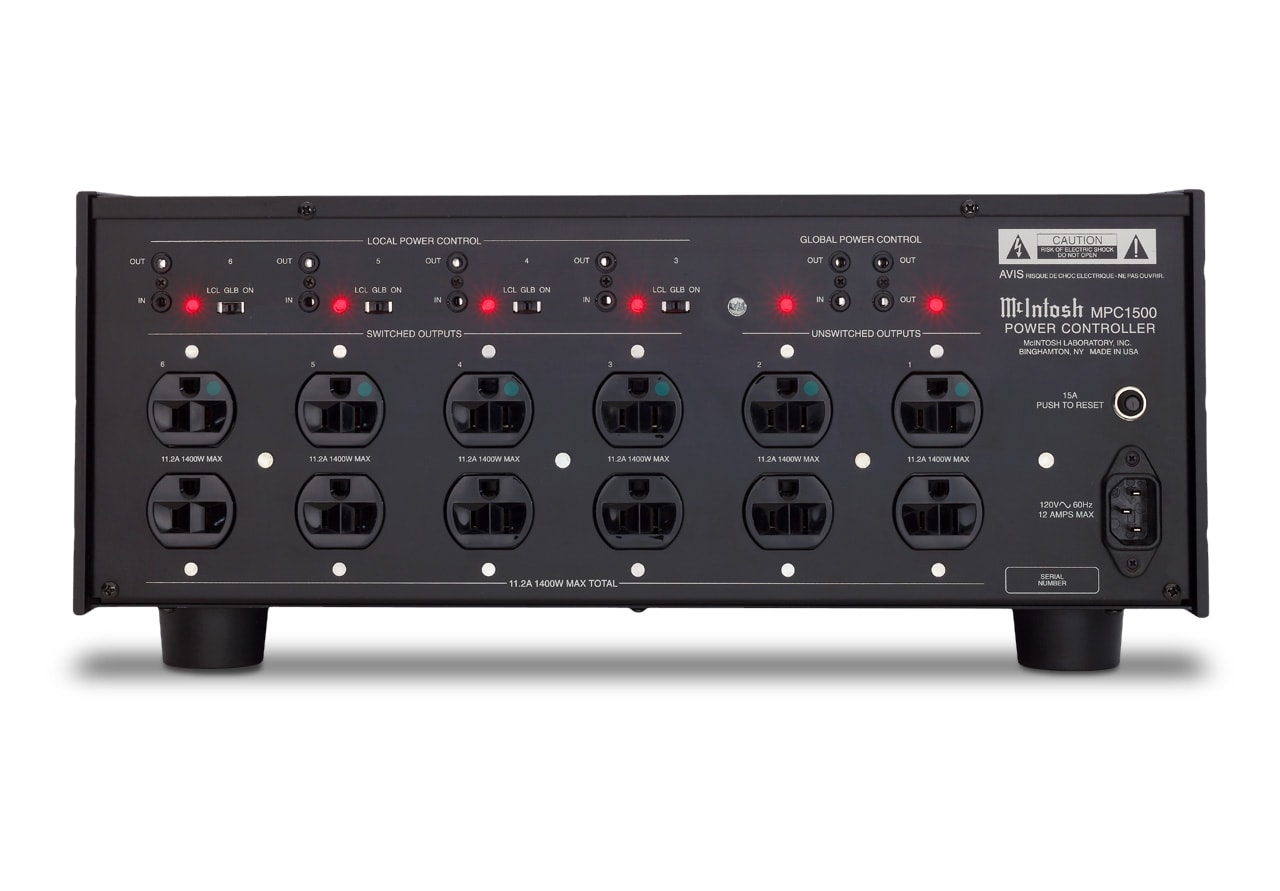

The MPC1500 comes with either 6 medical grade Type B1 (a.k.a. NEMA 5-15R) duplex receptacles, or 6 high quality Type F1 (a.k.a. CEE 7/3 or “Schuko”) single receptacles. Only the appropriate version is available in each individual country to ensure compatibility with local power systems. Two of the receptacles are always active when the MPC1500 is plugged in. Control of the other 4 receptacles can be configured to your preferences via the rear panel Power Control switches. LED indicators on both the front and back show the current in-use state of each receptacle.

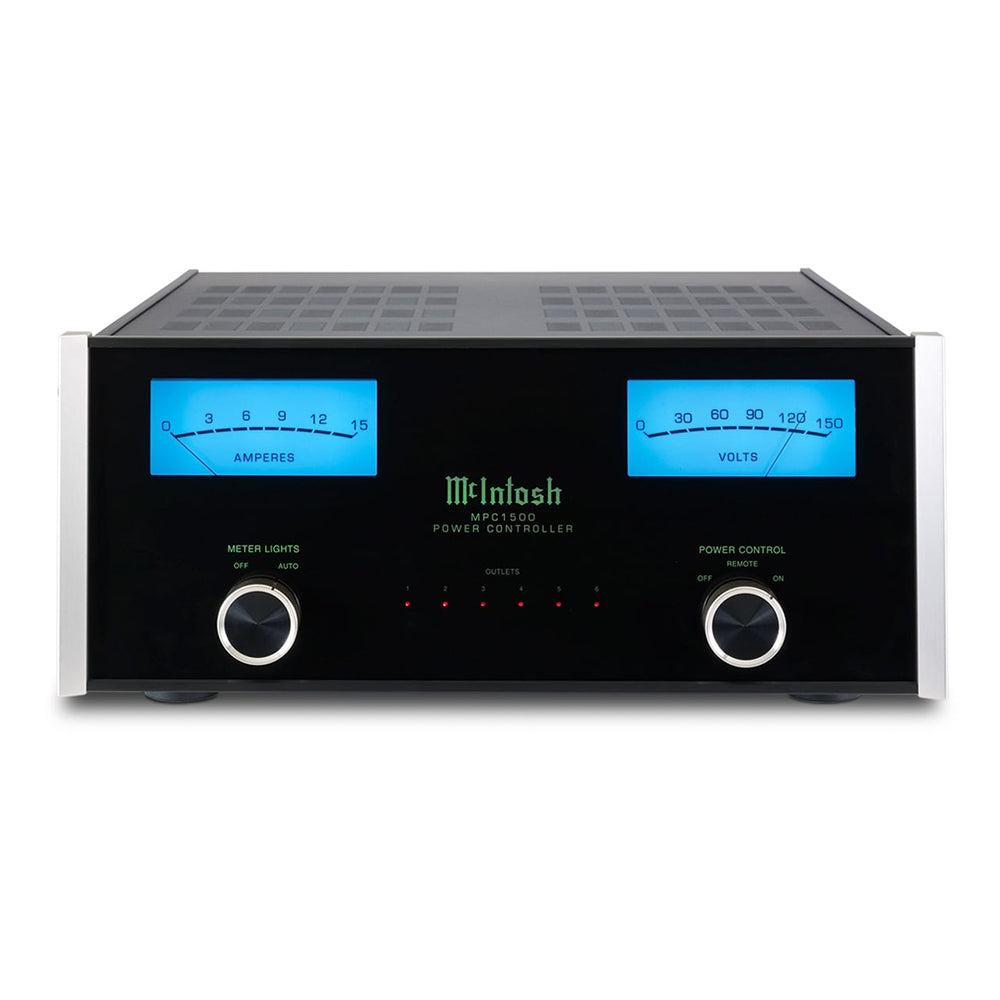

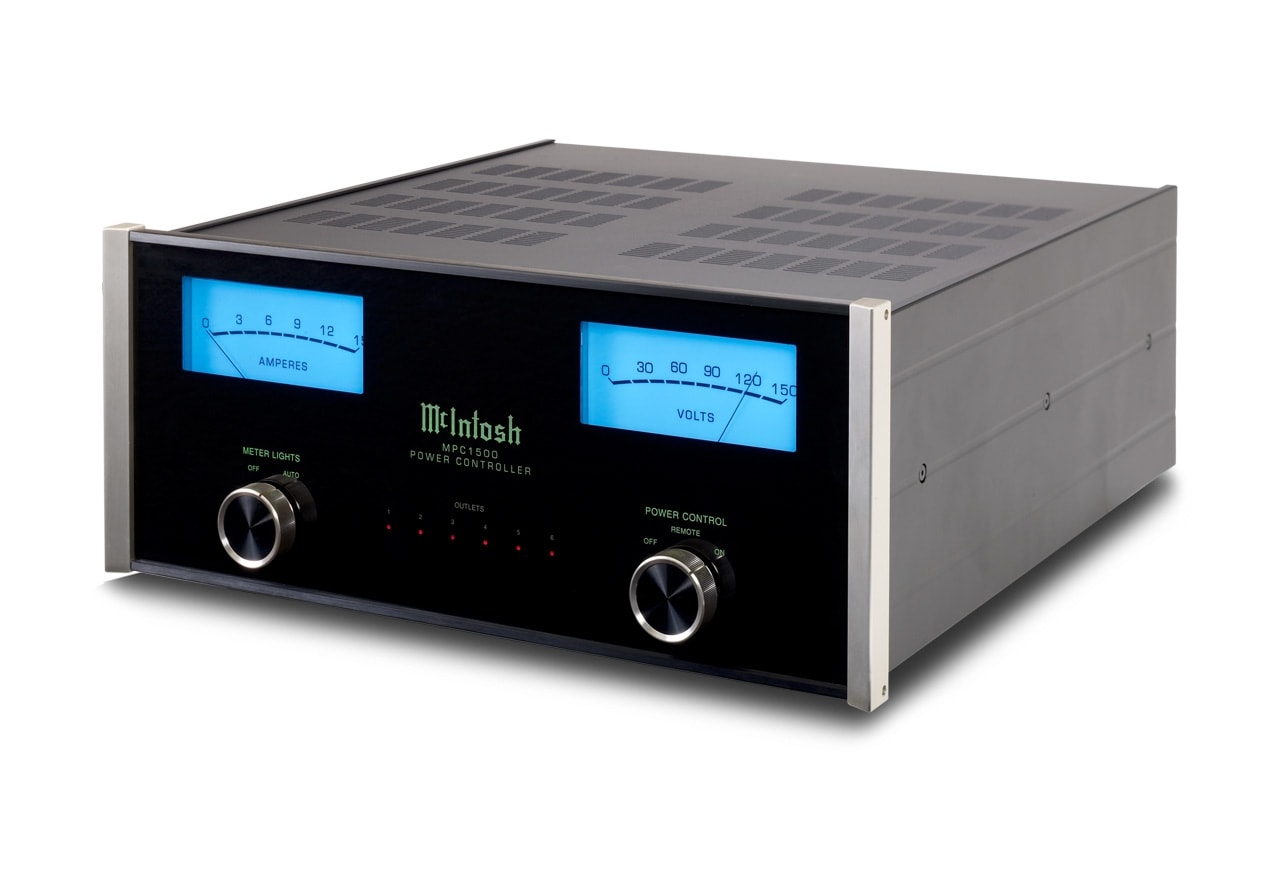

Blue Watt meters have been repurposed to show the real time incoming voltage and the actual current draw of the connected devices. The meters will be scaled to the correct amperage and voltage based on the local country (e.g. the voltage meter will be scaled to 250 for countries that use the Type F receptacle). Regardless if the unit has Type B or Type F receptacles, all versions of the MPC1500 feature the timeless McIntosh black glass front panel with blue meters, an illuminated logo, control knobs, and aluminum end caps.
SPECIFICATIONS
- LOAD REGULATION: ± 2.5 %
- OUTPUT VOLTAGE: 120 Volts AC Nominal
- POWER REQUIREMENT: 120 Volts, 60Hz; 12.0 Amps, maximum current; 1440 Watts, maximum power
- DIMENSIONS (W X H X D): 17-1/2" (44.45cm) x 7-5/8" (19.37cm) (including feet) x 22" (55.88cm) (including front panel, knobs and cables)
- WEIGHT: 87 lbs (39.46 kg)
- SHIPPING WEIGHT: 105 lbs (47.63 kg)
