The MC2KW Monoblock Power Amplifier is designed to exceed the demands of true lifelike playback level, delivering 2000 watts of continuous power and 8000 watts peak power. Sheer power output is but the beginning of the story, however.
OVERVIEW

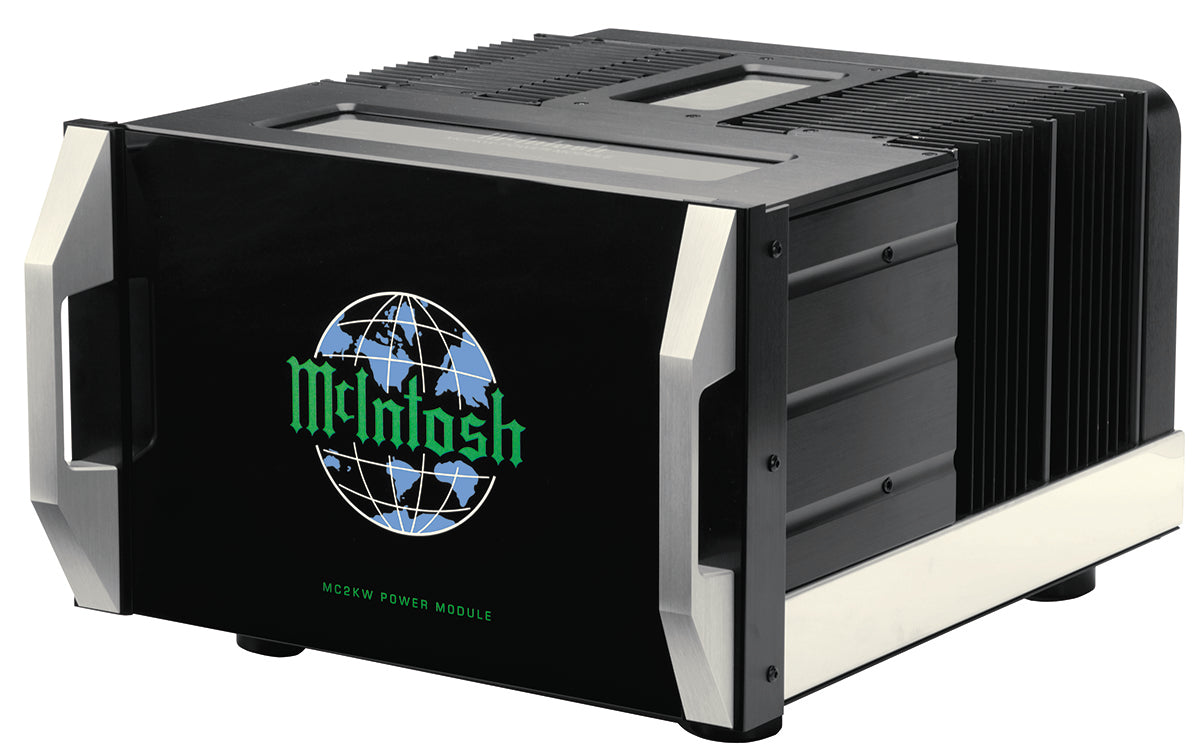

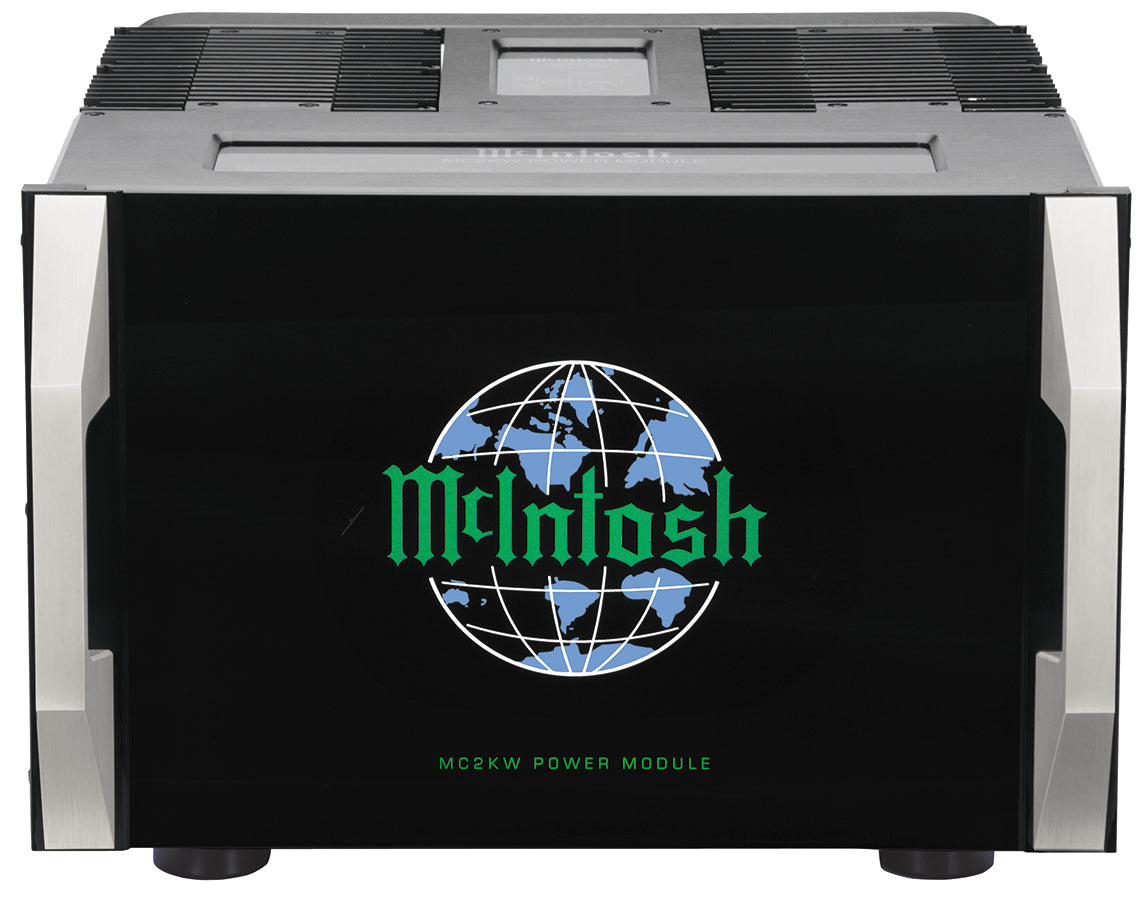

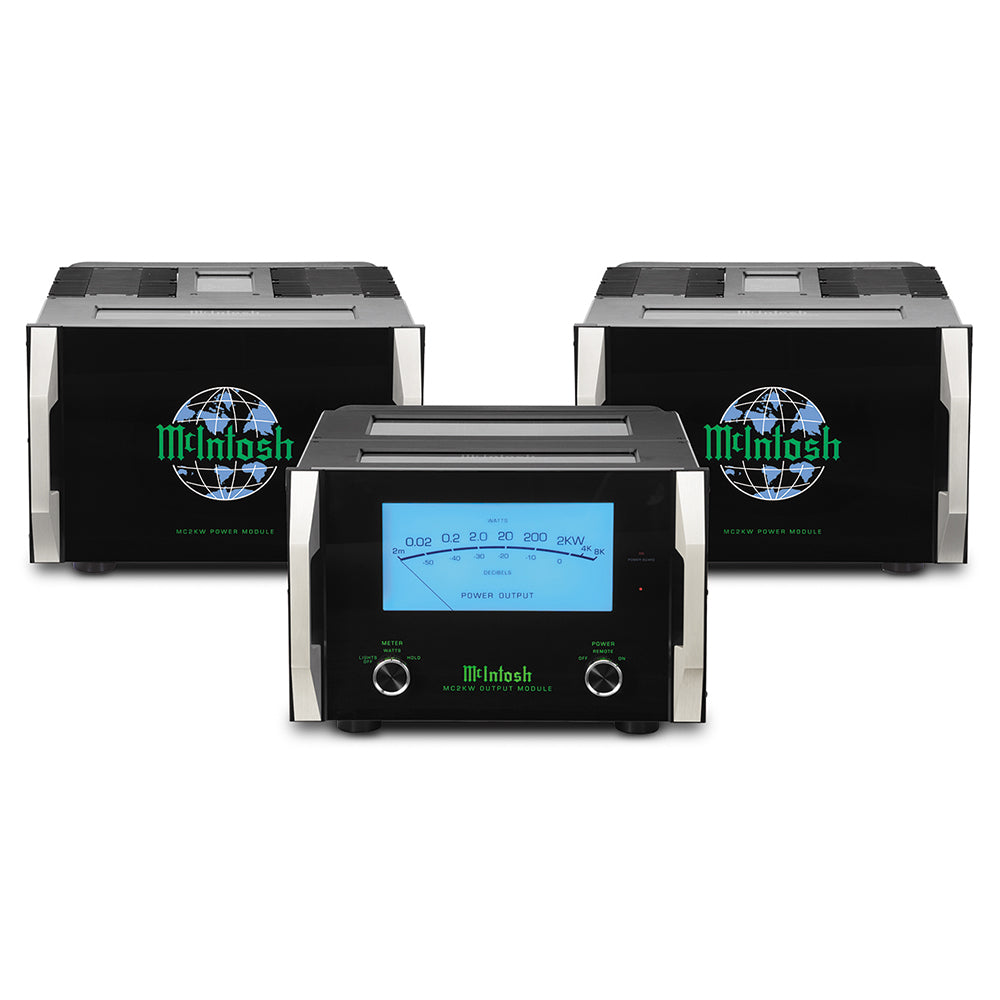

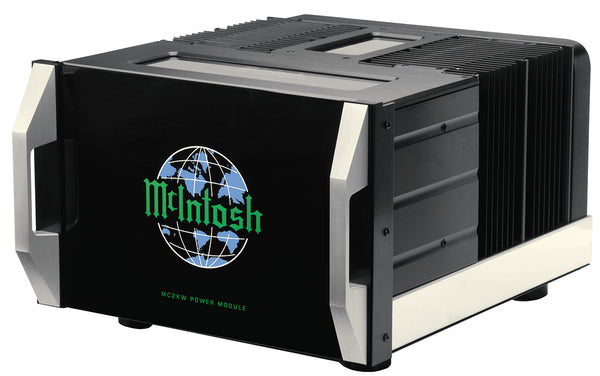

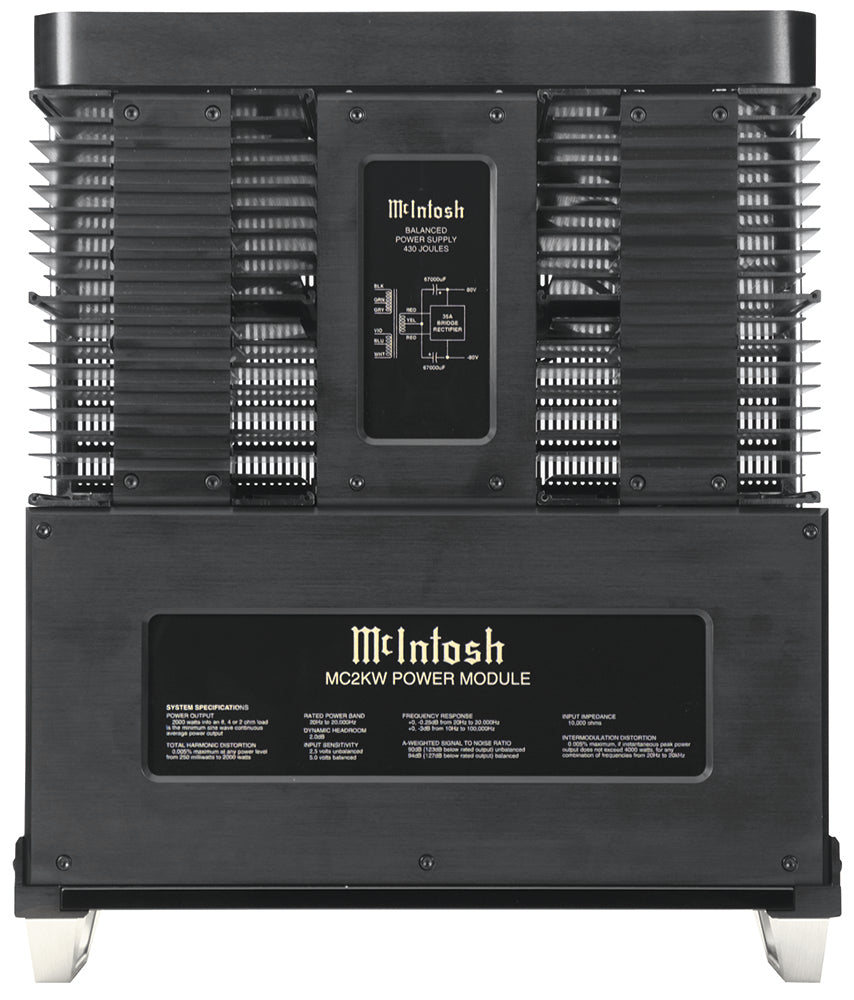

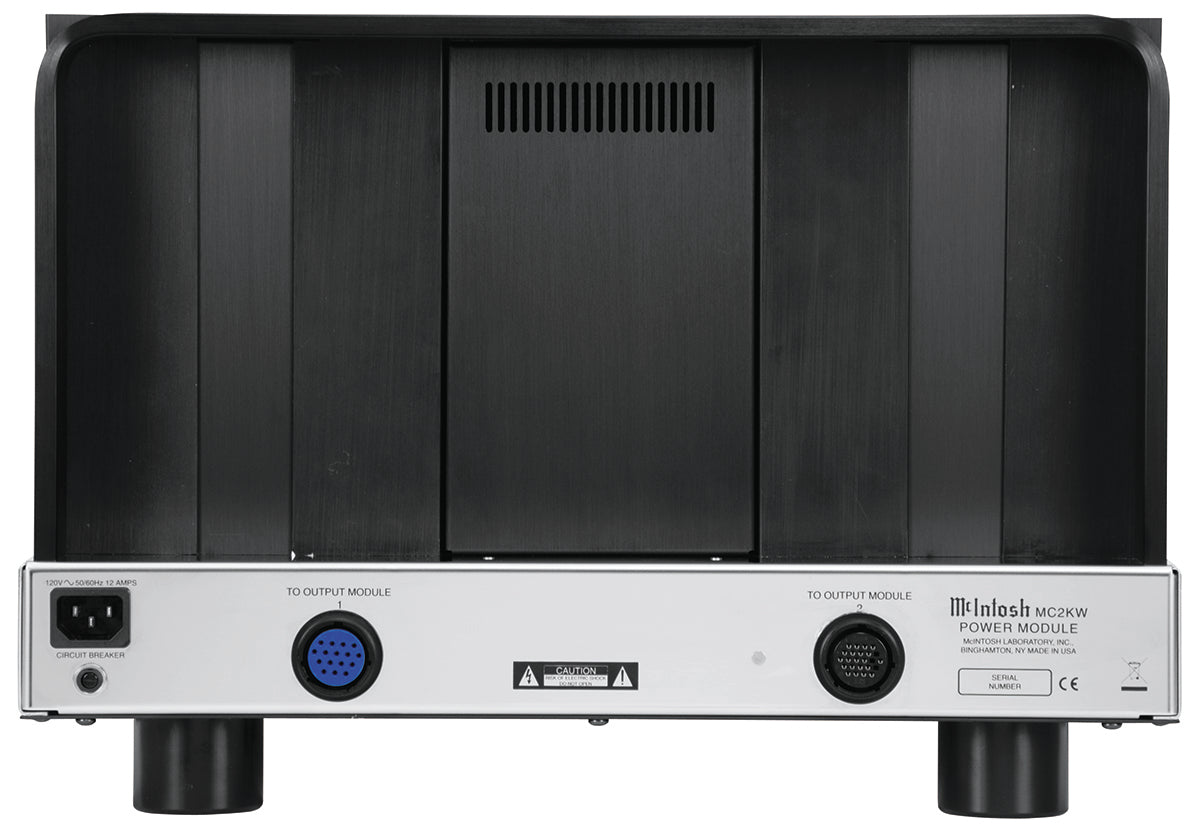

The MC2KW features McIntosh Quad Balanced Circuitry, which, in the process of creating such extraordinary power, actually cancels virtually all noise and distortion. The MC2KW’s unique design incorporates three modules. Two 1000-watt Power Modules each contain half the balanced circuitry and a power supply.

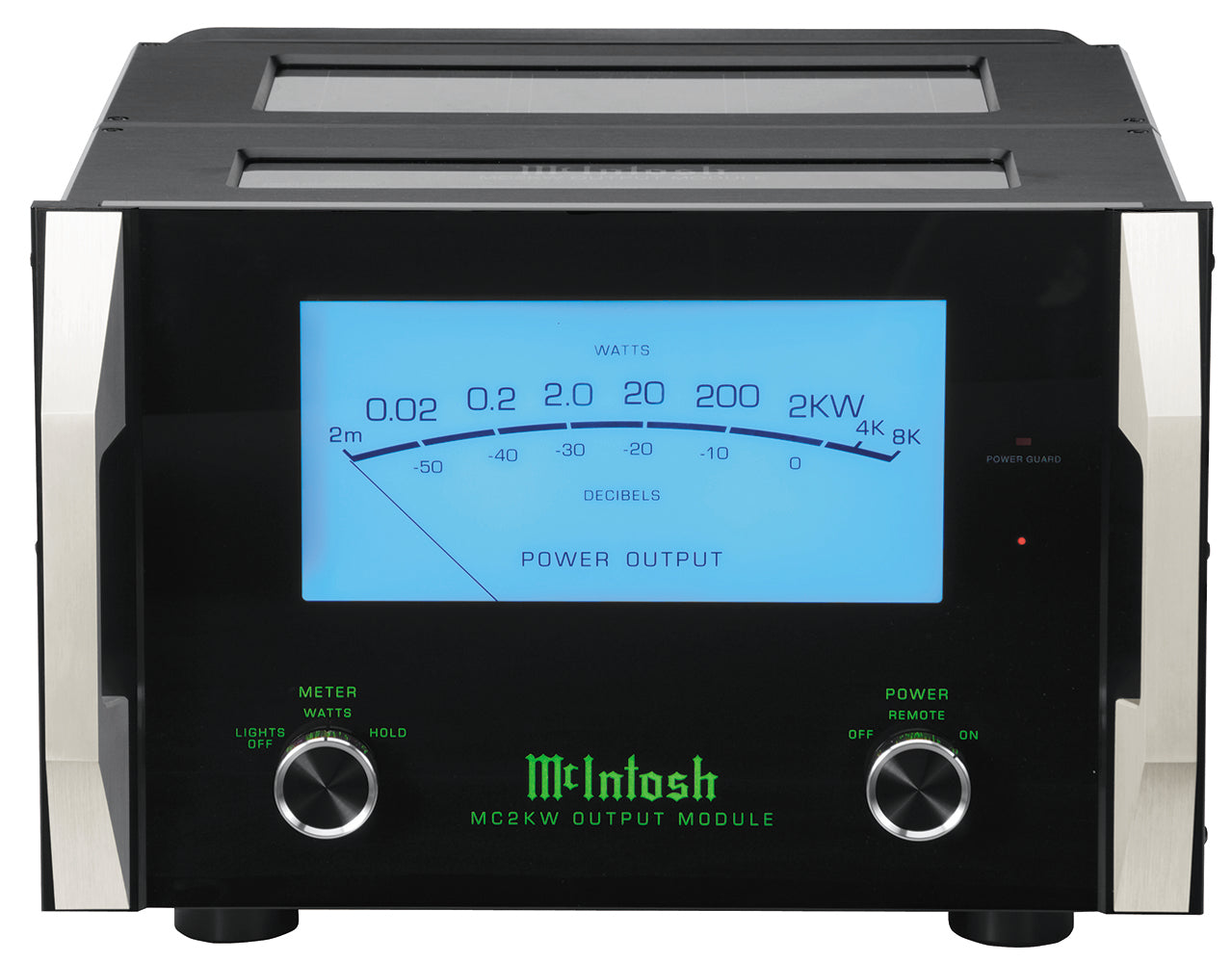

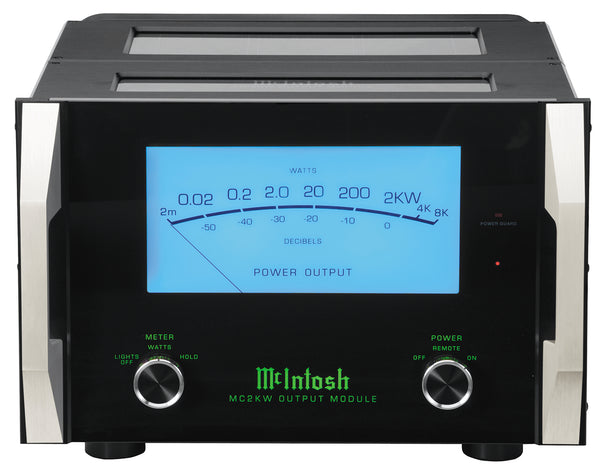

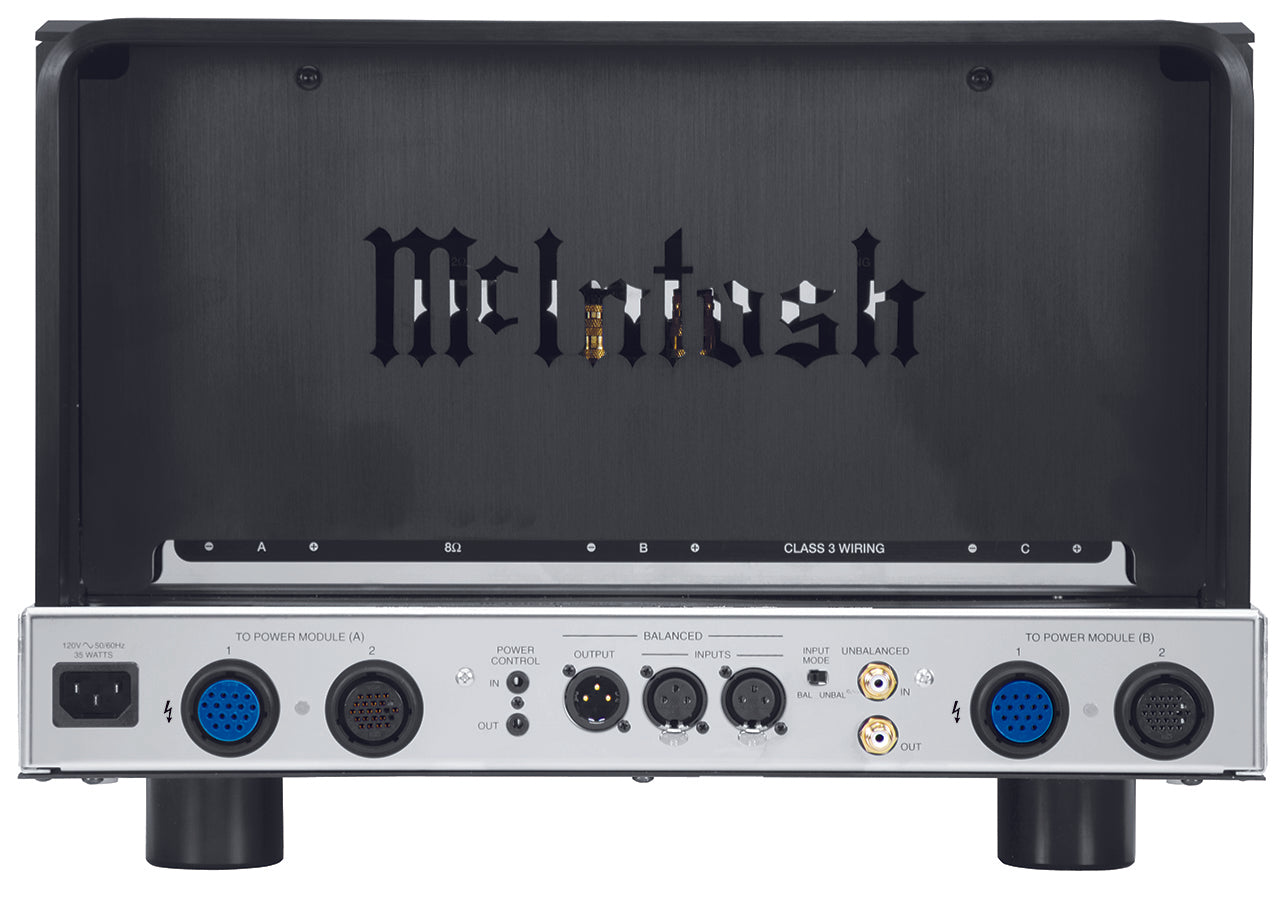

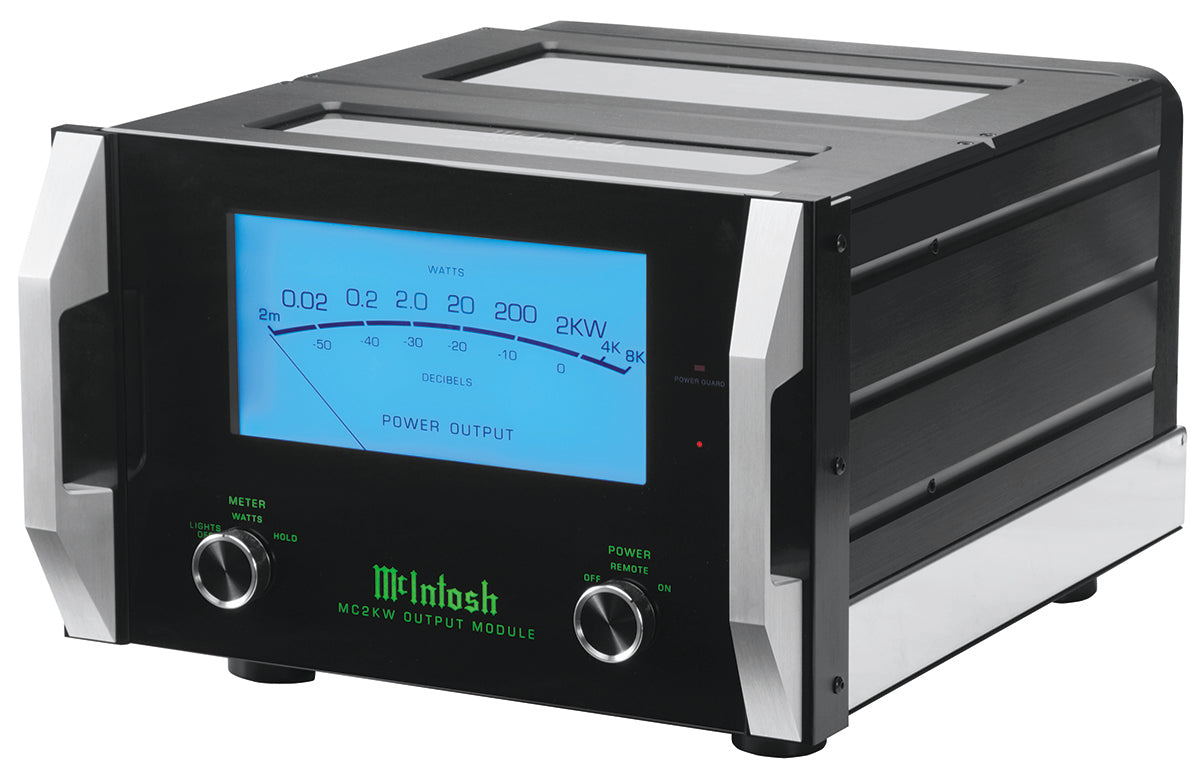

The Output Module houses the input and output connections, meter, output Autoformer, and functions as the control center. The bifilar-wound, mirror-image output transformer combines the two signals from the Power Modules, cancelling noise and distortion while summing the power output.
FEATURES
- 1 Channel x 2,000 Watts
- Balanced and Unbalanced Inputs
- Thruputs for Bi and Tri-Amping
- Connections for 8, 4, and 2 Ohms

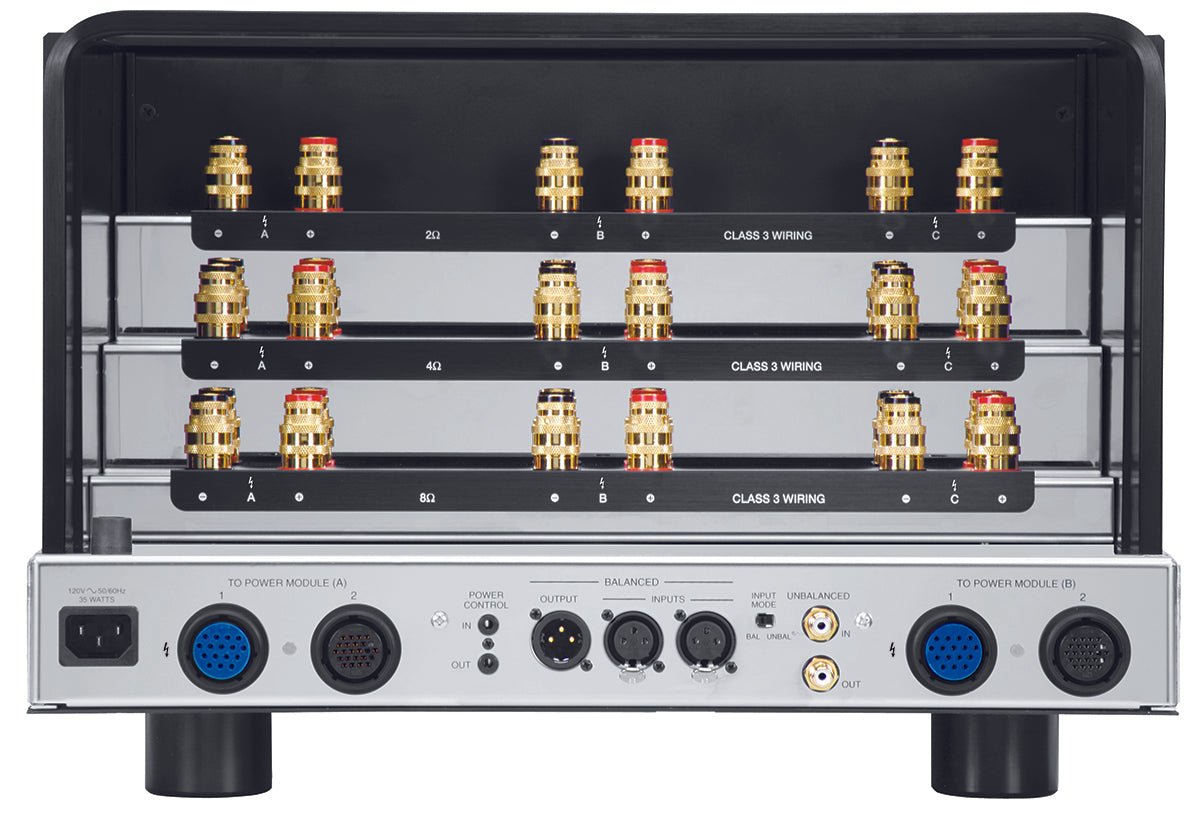

- 3 Full Sets of Terminals for Tri-Wiring
- Power Control Triggers (In and Out)
- Peak Responding Output Meter
- Meter Hold Front Panel Switch
- Silent Convection Cooling
- Cool-Running High Efficiency Circuits
- Thermal Track Output Transistors
- Safe Operation to Below 2 Ohms
- Sentry Monitor Protection
- Power Line Inrush Protection
- Fiber Optic Front Panel Lighting
SPECIFICATIONS
- POWER OUTPUT PER CHANNEL: 2000W @ 2, 4 or 8 Ohms
- NUMBER OF CHANNELS: 1
- TOTAL HARMONIC DISTORTION: 0.005%
- S/N BELOW RATED OUTPUT: 123dB Unbalanced; 127dB Balanced
- DYNAMIC HEADROOM: 2dB
- DAMPING FACTOR: >40 Wideband
- RATED POWER BAND: 20Hz to 20kHz
- FREQUENCY RESPONSE: +0, -0.25dB from 20Hz to 20,000Hz; +0, -3dB from 10Hz to 100,000Hz
- REMOTE POWER CONTROL: Yes
- MULTI-CHANNEL DB25 CABLE: N/A
- CIRCUIT CONFIGURATION: Quad Balanced
- CIRCUIT DESIGN: Transistor
- MONO BRIDGE: N/A
- MONO PARALLEL: N/A
- AUTOFORMER: Yes
- METERS: Yes
- METER LIGHT SWITCH: Yes
- BALANCED INPUT: Yes-2
- FRONT PANEL: 1/2" Glass with handles
- ILLUMINATION: LED Fiber Optic
- CHASSIS STYLE: Open Stainless Steel (each module)
- GOLD PLATED BINDING POSTS: Yes, 200 amp, 3 sets for each tap
- DIMENSIONS (W X H X D): Each Module: 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 26-5/8" (62.54cm) (including the front panel, handles, knobs and interconnect cables)
- WEIGHT: Output Module (1 included): 123 lbs (55.8 kg); Power Module (2 included): 127 lbs (57.6 kg) ea
- SHIPPING WEIGHT: Output Module (1 included): 148 lbs (67.1 kg); Power Module (2 included): 152 lbs (68.9 kg) ea
