Using state-of-the-art wireless technology, the JLINK™ TRX system delivers pure, high-fidelity sound throughout your home, invisibly and effortlessly. By broadcasting at an ultra-high frequency of 2.4 GHz, the JLINK™ TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between.
OVERVIEW
Using state-of-the-art wireless technology, the JLINK™ TRX system delivers pure, high-fidelity sound throughout your home, invisibly and effortlessly.

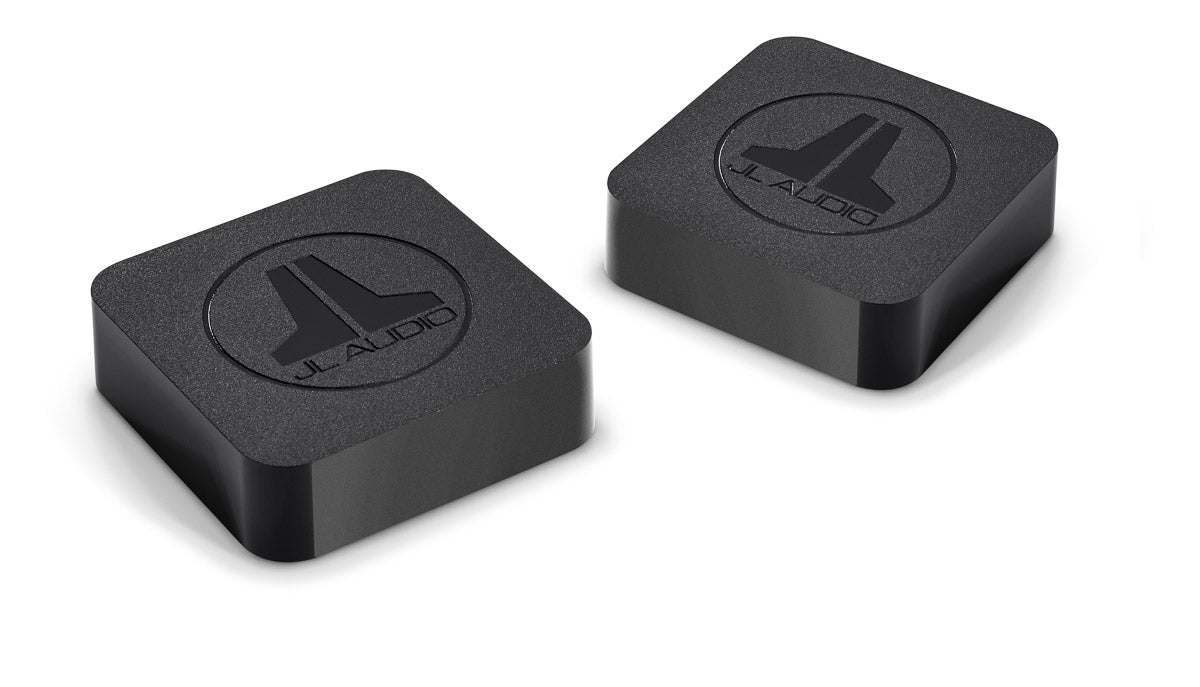

By broadcasting at an ultra-high frequency of 2.4 GHz, the JLINK™ TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can send crystal clear, stereo sound from a source unit to a receiver, preamp or powered loudspeakers, wirelessly, up to 100 feet away (30 meters) without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide the transmitter and receiver chassis out of sight. A JLINK™ port is also included on the receiver for direct connection with JLINK™ compatible JL Audio products.
Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK™ TRX system gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.
• Outstanding fidelity in subwoofer and full-range applications
• Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)
• RCA-type input/output connectors are compatible with most audio equipment
• Up to 3 JLINK™ transmitters can be used concurrently (3 channels to choose from)
• Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter
• Receiver includes JLINK™ port for use with compatible JL Audio products.
SYSTEM SPECIFICATIONS
• S/N Ratio: 80 dB @ 1 kHz, 500 mV
• THD+N:0.02% @ 1 kHz, 500 mV
• Crosstalk: >75 dB @ 1 kHz, 500 mV
• Frequency Response: 16 Hz – 22 kHz (+0, -1dB)
• Wireless Range: 100 feet / 30 meters (typical)

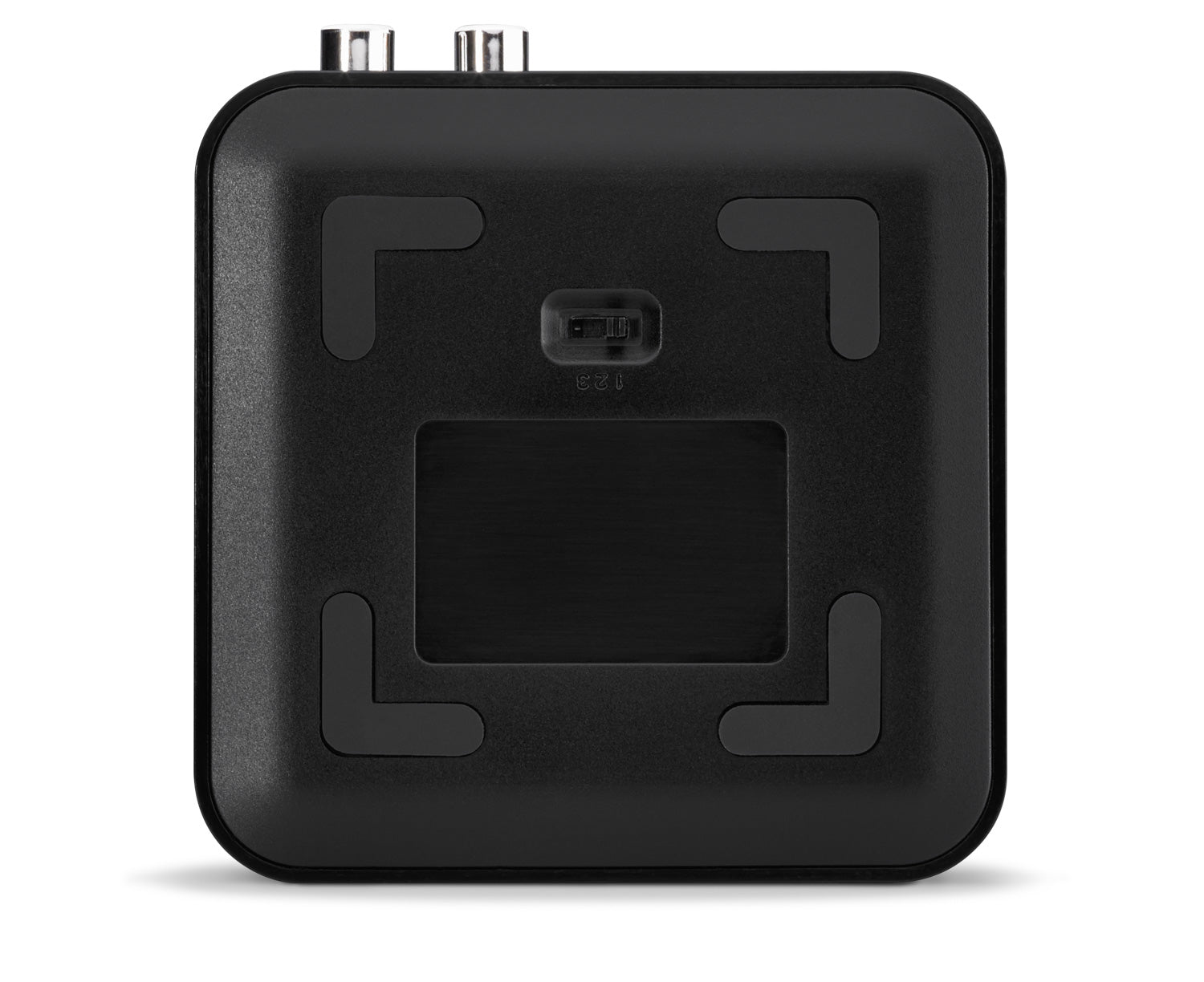

• Wireless Channels: 3 available, selectable via switch
• Latency: 14 mS
• Operating Temperature: 32 to 104 °F / 0 to 40 °C
• AC Power Adaptor: 1 A, 5 volts DC
TRANSMITTER SPECIFICATIONS
• Input Impedance: 25 kΩ
• Outputs: Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
• Receivers Supported: Up to 4
• Bit Depth/Sample Rate: 16 Bit / 48 kHz
• Power Requirements: 200 mA, 5 volts (via AC adaptor)
• Height (H): 1.12 in / 28.5 mm
• Width (W): 3.5 in / 89 mm
• Depth (D): 3.5 in / 89 mm

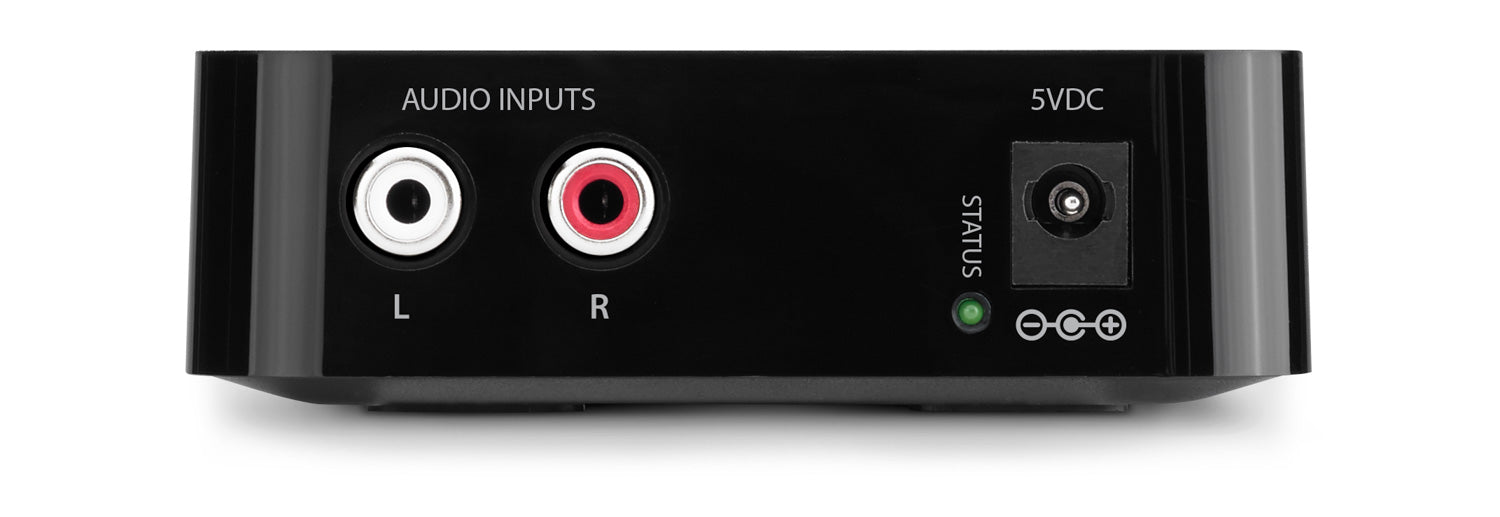

• Inputs: Analog, left and right RCA-type

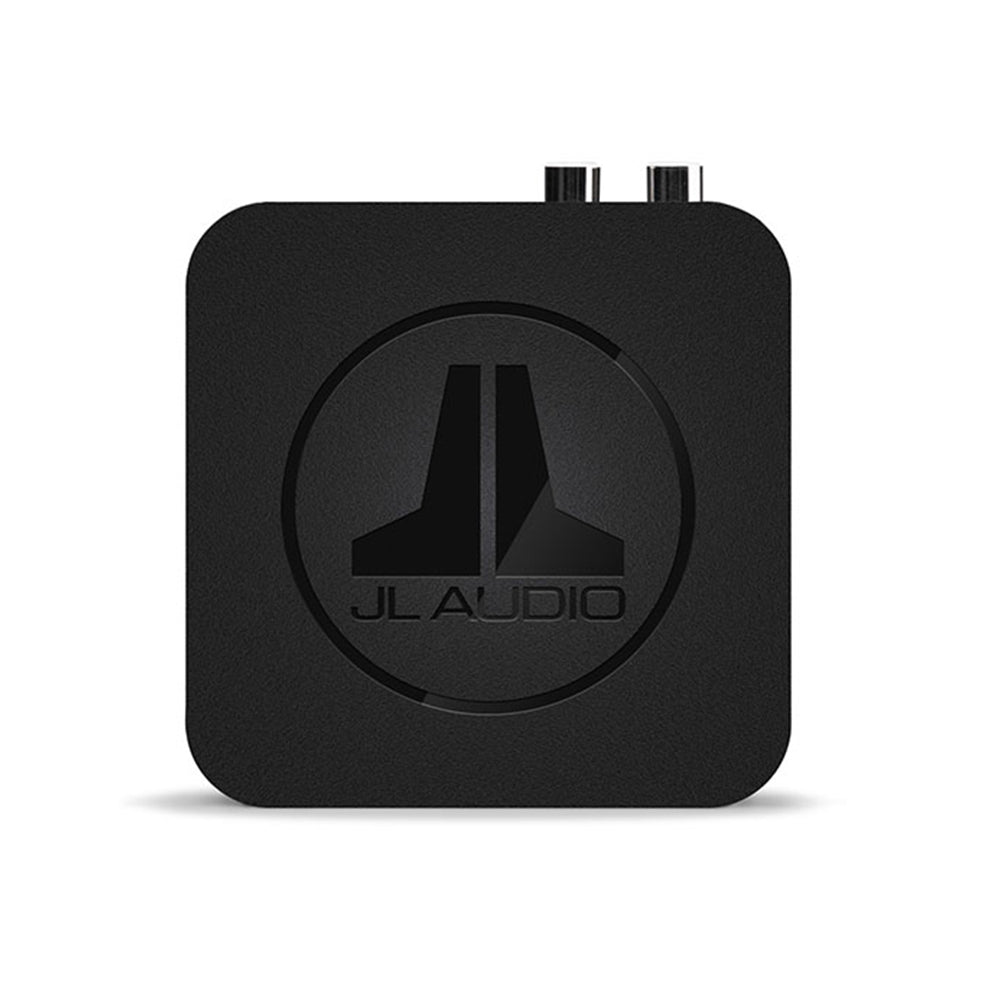

RECEIVER SPECIFICATIONS
• Inputs: Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless

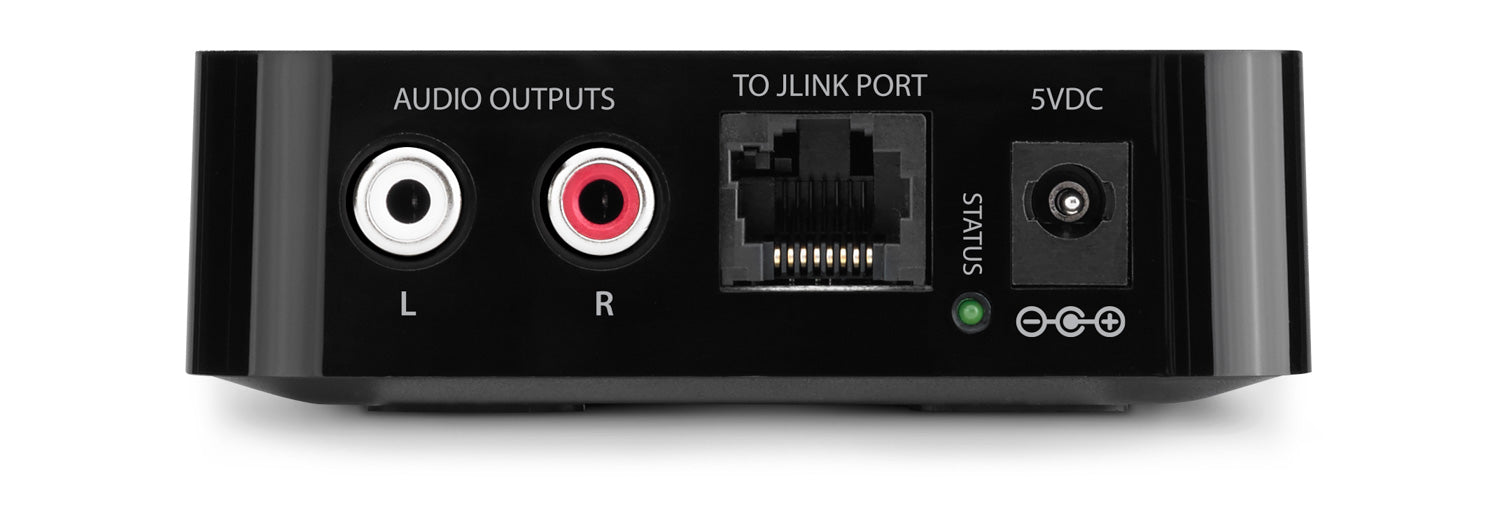

• Outputs: Analog, left & right RCA-type Analog via JLINK port to compatible product
• Output Impedance: 250 Ω
• Full Scale Output Voltage: 1.2 V
• Power Requirements: 100 mA, 5 volts (via AC adaptor or JLINK port)
• Height (H): 1.12 in / 28.5 mm
• Width (W): 3.5 in / 89 mm
• Depth (D): 3.5 in / 89 mm
