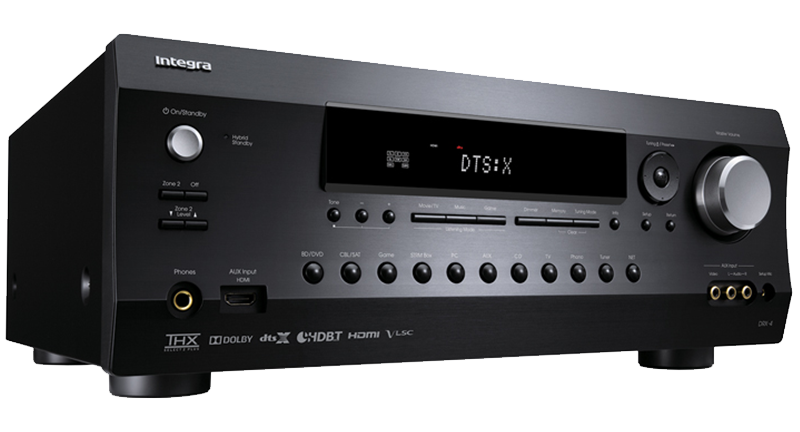

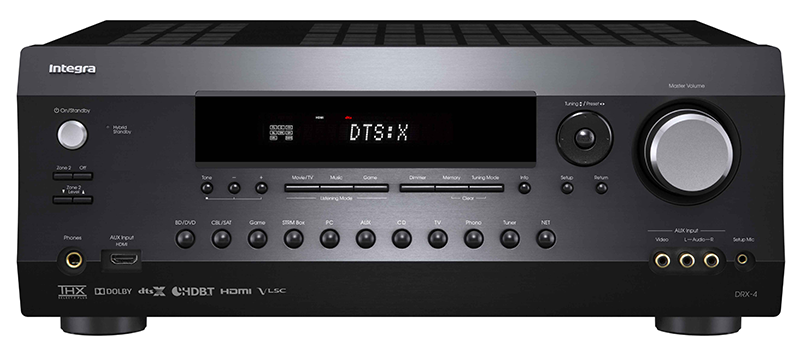

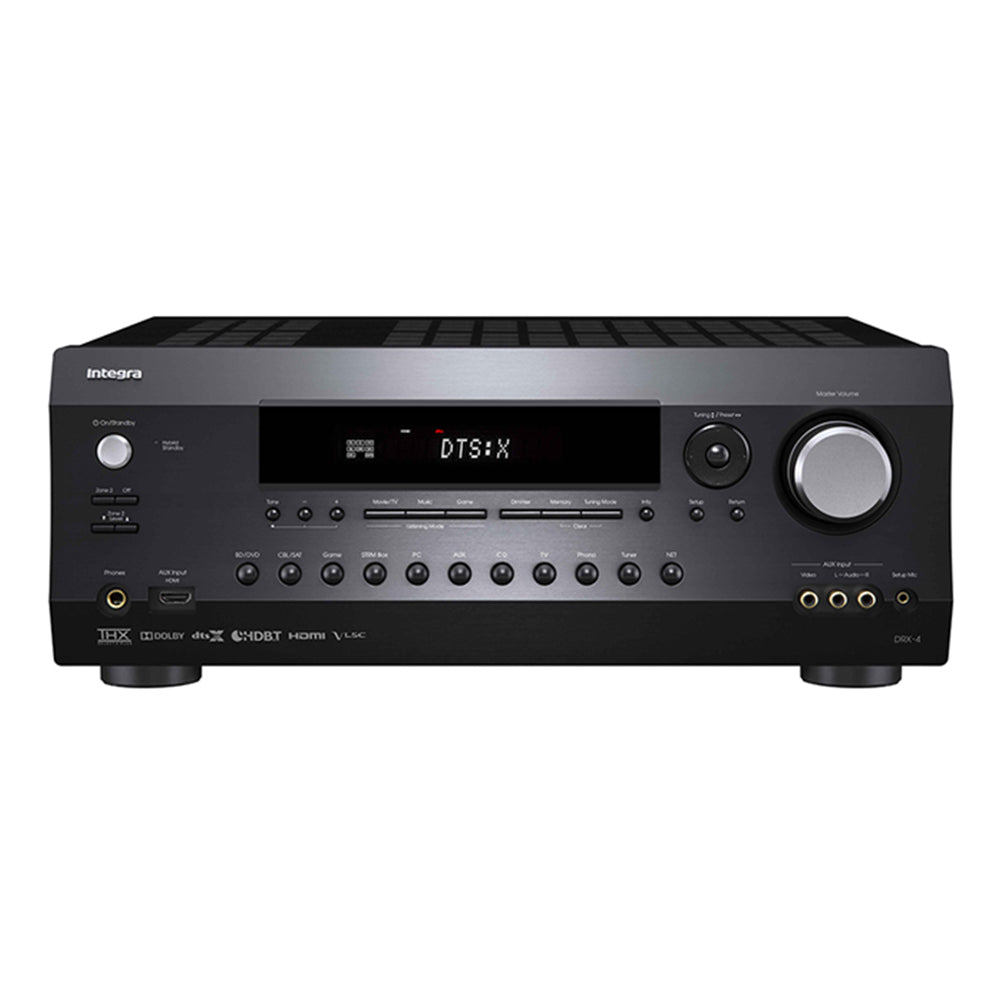

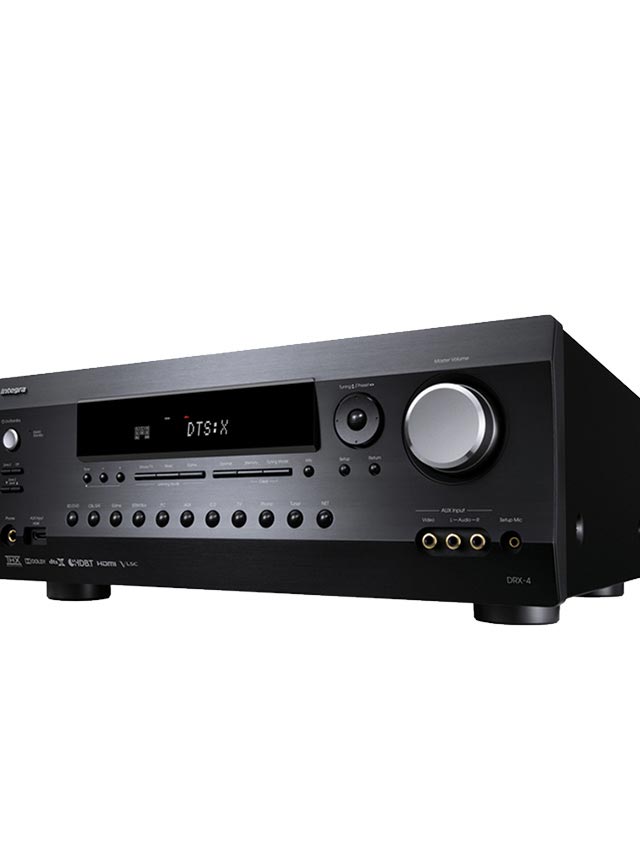

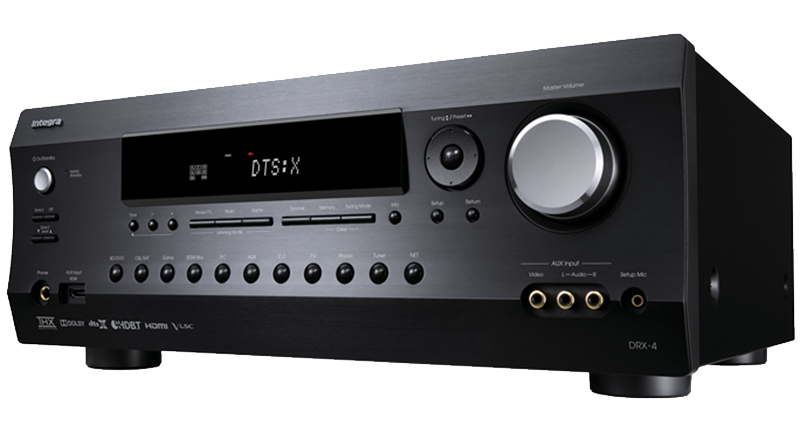

This state-of-the-art powerhouse is engineered to share any audio source throughout the home!

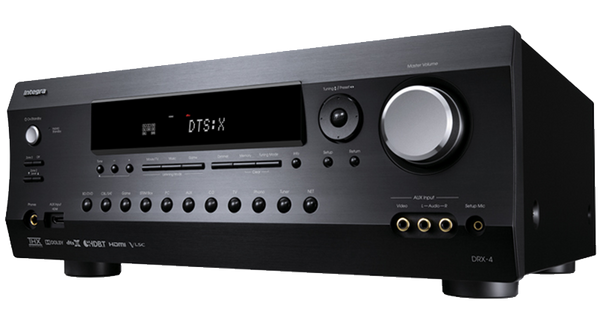

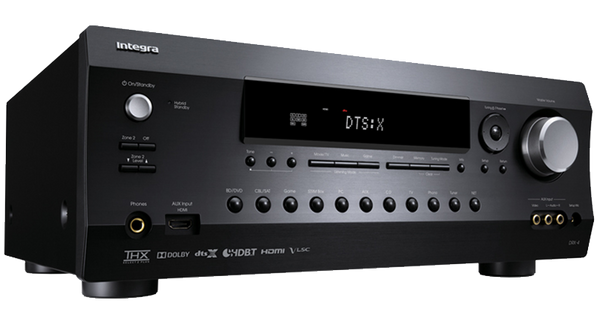

The DRX-4 is one of Integra's new lineup of 7.2 channel A/V receivers, and is Select2 Plus THX certified. THX was born out of George Lucas' Star Wars legacy in 1983, coinciding with the release of “Star Wars Episode VI: Return of the Jedi." No matter what you’re listening to, it will sound powerfully full, clean and clear. A premium-quality digital-to-analog converter implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of any audio format, including compressed, lossless, and hi-res audio.
OVERVIEW
This state-of-the-art powerhouse is engineered to share any audio source throughout the home!
The DRX-4 is one of Integra’s new lineup of 7.2 channel A/V receivers, and is Select2 Plus THX certified. THX was born out of George Lucas’ Star Wars legacy in 1983, coinciding with the release of “Star Wars Episode VI: Return of the Jedi.”
After the Skywalker Sound audio facilities and Stag Theater were completed, Lucasfilm began receiving requests from visiting commercial theater owners and Hollywood studio executives to incorporate the Ranch’s performance standards into their cinema auditoriums and aging mixing rooms. Realizing that this could change the way moviegoers experienced feature films, Lucas and the soon-to-be THX team designed a certification program to go beyond the walls of Skywalker Ranch.
THX spends 40-60 hours testing over 2000 data points ensuring that the DRX-4 is capable of meeting rigorous audio and video performance standards for reference level, distortion free playback and includes THX Loudness Plus technology to bring out intricate details at lower listening levels.
The DRX-4 has Google Cast for Audio, AirPlay, Wi-Fi and Bluetooth technologies built in. Stream virtually any audio from a smartphone, tablet or PC to your home theater for powerful sound. With Spotify, Pandora, and TuneIn built-in, you can select a station and search for music available on these services via the Onkyo Remote app on your phone. The free Integra Remote app puts a range of streaming options at your fingertips, from universal hi-res audio via network-attached devices to internet streaming services to music on your smartphone and tablet. Further, Tidal and Google Cast for Audio will be operable with an upcoming firmware update.
Integra products are designed and engineered to meet the demands of custom audio/video systems installers. The DRX-4 includes system integration connectivity and IP control with support for 2-way communication with 3rd party home automation systems. A pair of infrared (IR) inputs and an IR output make for a clean, reliable installation and allow pass-through of IR signals to control other devices connected to the DRX-4, such as a TV or Blu-ray player. Three fully programmable 12 volt triggers can be used to raise/lower a projection screen, power on/off an external amplifier, and open/close the drapes all with the touch of a button!
☆Note: Support for DTS:X™, Google Cast™, MQA, Tidal™ will be enabled on these receivers following firmware updates currently scheduled for Fall 2016.
FEATURES
AMPLIFIER
• # Channels: 7.2
• POWER (8 Ω 20-20kHz 0.08%) / CH: 110
• Amplifier Frequency Response: 5Hz – 100kHz
• Wide Range, High Current Power Supply: Natural Harmonics Technology, Massive High-Power Transformer
• High Instantaneous Current Capability: 35 Amps, 1kHz, 00.1 Ω Pulse
• THX Certified: ✓
• Continuous 6 Ω Rated: ✓
• Hand Selected Parts to Ensure Low Impedance Performance: Custom- Audio Tuned
• Discrete Output Stages for All Channels: Discrete 2-Stage
• All Channels Equal Power Output: ✓
• PUSH-PULL Amplifier Design: ✓
• Independent Power Supply: 2
• Bi-amp Capability – Front L/R Channels: ✓
PROCESSING
• Dolby Atmos and Dolby Surround: ✓
• Dolby TrueHD: ✓
• DTS:X and DTS Neural:X: ✓ (Future Firmware Update)
• DTS-HD Master Audio: ✓
• THX Processing Modes & Loudness Plus: ✓
• VLSC for Noise Free Signal Path: Front Left / Right Channels
• AccuEQ Automatic Room Calibration: Advanced w/AccuReflex
• GAME Surround Modes (Rock, Action, Sports, Role Play): ✓
• Advanced Music Optimizer to Enhance Compressed Audio Files: ✓
• Premium Quality Digital-to-Analog Conversion: 384k / 32-bit AKM 4458
• 32-Bit DSP Chip for Advanced Processing: ✓
• Ultra-Low-Jitter Circuitry to Improve Audio: ✓
• Adjustable Crossover by Channel Pair: 40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz
• Accurate Speaker Distance Setting: 0.1 – foot
• A/V Sync Delay (by Source): -100 to +500 ms

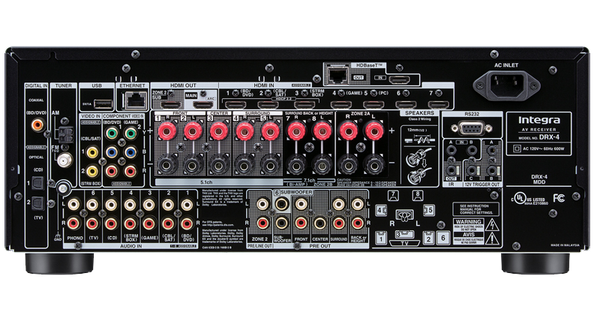

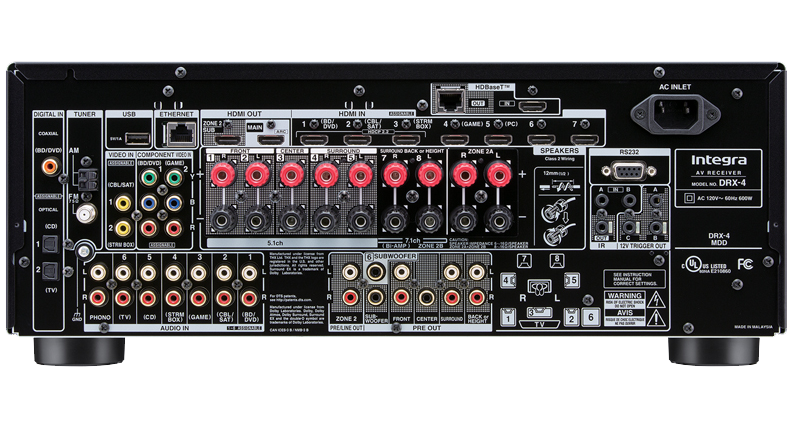

CONNECTIVITY
• HDMI Inputs / Output(s): 8 / 2
• HDMI 4K / 60 Hz- Capable HDMI Terminals: with HDR Support
• HDCP 2.2 Copy-Protection Compatibility: ✓
• HDMI Support for High Dynamic Range (HDR): ✓
• HDMI Support for BT.2020: ✓
• 4K / 60 Hz 4:4:4 Colorspace Support: ✓
• HDMI Support for 3D, Audio Return Channel and CEC: ✓
• HDMI Support for Deep Color, x.v.Color, LipSync: ✓
• HDMI Support for DVD-Audio, SACD, Multichannel PCM: ✓
• Front Panel HDMI Input: ✓
• HDBaseT Output: ✓
• Analog to HDMI Upconversion: From 480i / 576i
• 4K Upscaling from 1080p: via HDMI
SPECIFICATIONS
AMPLIFIER SECTION
• Power Output (8 Ω, 20 Hz-20 kHz, FTC): 110W / Channel (8 Ω)
• Dynamic Power: 250W / Channel (3 Ω), 220W / Channel (4 Ω), 130W / Channel (8 Ω)
• THD (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half Power)
• Input Sensitivity and Impedance: 200 mV / 47 k-Ω (LINE), 3.5 mV / 47 k-Ω (Phono MM)
• Rated RCA Output Level and Impedance: 1 Vrms / 470 Ω (Subwoofer Pre Out), 200 mV / 2.3 k-Ω (Zone Line Out), 2.0 V / 2.3 k-Ω (Zone Pre Out)
• Phono Overload: 70 mV (MM 1 kHz, 0.5%)
• Frequency Response: 5 Hz – 100 kHz / +1 dB-3 dB (Direct Mode)
• Tone Control: ±10dB, 90 Hz (Bass), ±10dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio: 106 dB (Line, IHF-A), 80 dB (Phono)
• Speaker Impedance: 6 Ω – 16 Ω
VIDEO SECTION
• Input Sensitivity / Output Level and Impedance: 1.0 Vp-p / 75 Ω (Component Y), 0.7 Vp-p / 75 Ω (Component Pb/Cb, Pr/Cr), 1.0 Vp-p / 75 Ω (Composite)
• TUNER SECTION
• Tuning Frequency Range: FM 87.5 MHz – 107.9 MHz, AM 530 kHz – 1,710 kHz
• FM / AM Preset Memory: 40 Stations
GENERAL
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 600 W
• Stand-by Power Consumption: 0.1 W
• Dimensions (W X H X D): 17 1/8″ x 6 7/8″ x 14 13/16″, 435 x 174 x 376.5 mm
• Weight: 24.3 lbs. (11.0 kg)
CARTON
• Dimensions (W X H X D): 22 7/16″ x 11 3/4″ x 18 7/16″, 570 x 298 x 469 mm
• Weight: 30.9 lbs. (14.0 kg)
