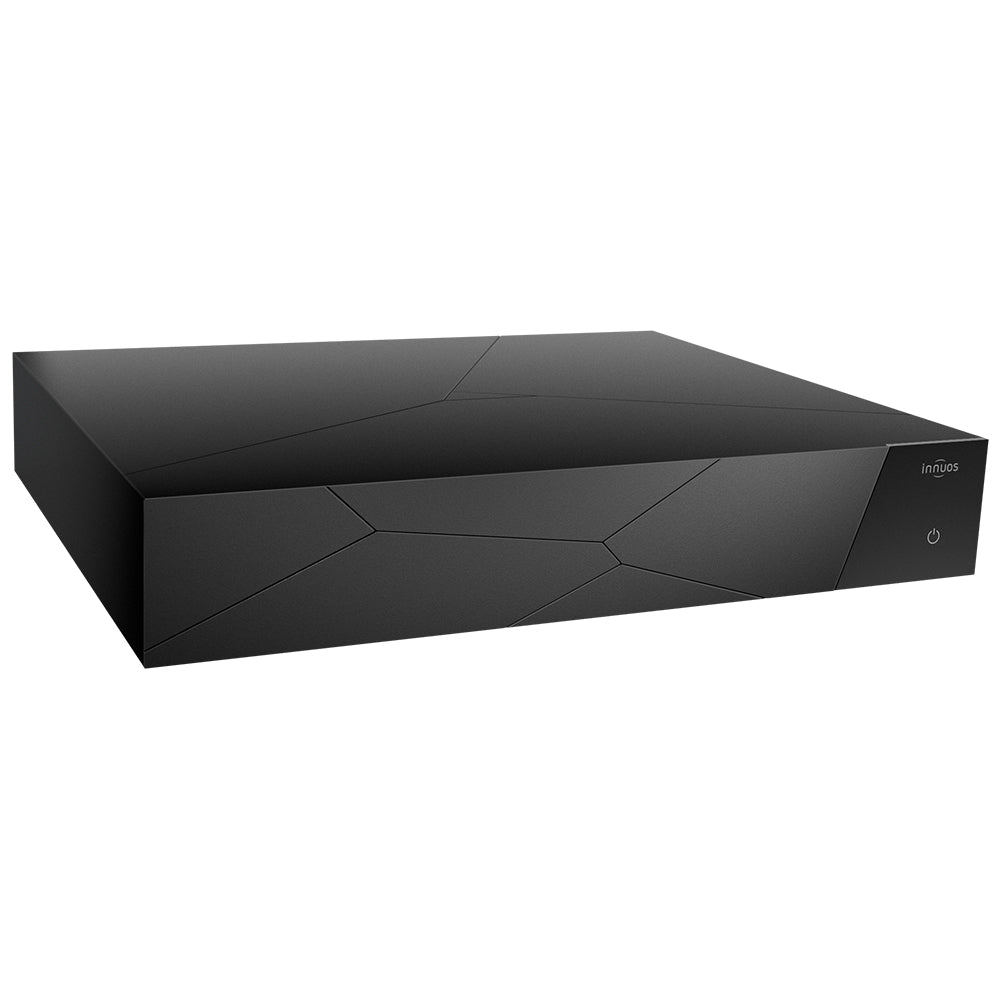

Innuos Stream3 Streamer

The Innuos Stream3 is the brand’s highest-performance music streamer, designed not only for pristine digital playback but also fully capable as a server with optional internal storage and CD ripping via an external USB optical drive. Whether used as the centerpiece of a complex system or a streamlined all-in-one digital source, the Stream3 delivers an uncompromised, precisely timed signal, free of noise and distortion, allowing connected DACs to perform at their absolute best. You will experience the full texture, depth, and emotion of your music like never before.

ARC6-CX LPSU
Hear the difference of high-end power architecture with the integrated ARC6-CX module, combining 132,000uf Mundorf capacitance, active rectification and CX power regulation onto a single module to greatly reduce impedance and supply ultra-clean power to the system, sourced from a large 300VA toroidal transformer and medical-grade AC filtering to further reduce noise.

Premium Chassis
Housed in 10-mm thick, CNC-machined Aluminium, the Stream3 chassis provides comprehensive vibration dampening and shielding in an elegant design. The inclusion of a 4mm grounding port allows for even further possibility in noise reduction, revealing even greater levels of detail.

Optional PhoenixDAC
Turn the Stream3 into a truly high-end fully integrated streamer with the inclusion of the PhoenixDAC module, adding a direct XLR & RCA analogue output from a premium internal digital-to-analogue conversion stage powered independently by its own accompanying power supply, exclusively designed in partnership with Dr Sean Jacobs.

Storage
Add M2 NMVe SSD storage and create a home to maximize all your digital files and enjoy even more library management features in Sense app with the full scope of a music server. Choose from 2TB or 4TB of factory pre-fitted storage – or simply add your own instead.

Powerful Performance
Enjoy a smooth and responsive system thanks to the new Stream series mainboard, using 13th Gen Intel Quad-Core processing and 8GB of industrial-grade DDR5 RAM for a fast yet efficient platform that exceeds 200% faster processing than its predecessor. Hear the benefits of a low-latency system with the OS carried on a dedicated TLC power-loss protected SSD, featuring Real-Time Kernel technology trickled down from the ZEN Next-Gen series.

Connectivity
Stream3 is ready for the latest changes in connectivity, equipped with USB-C for the latest high-speed USB drives, DACs, or for charging smart devices. Still want to rip CDs to the internal storage? Add your own USB Optical Drive and begin ripping in seconds through using intuitive customised ripping engine. Connect to super-fast network speeds through the new 2.5gb Ethernet ports, with a bridged ‘Streamer’ output to connect another network device to.

• File Formats
  • WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF
  • MQA Supported
• Sample Rates
  • PCM: Up to 32-bit/768kHz
  • DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD
  • (24-bit/192kHz max output on SPDIF & BaseDAC modules)
• Connectivity
  • USB (DACs, Imports, Backups, USB Drive Playback)
  • 3 × USB 3.2
  • 1 × USB-C
• Network
  • 2 × 2.5Gb Ethernet, Bridged (wired only)
• Other
  • 1 × Digital Output Module Bay
  • 1 × Storage Expansion Bay (1 × M.2 NVMe SSD)
  • 1 × HDMI (service only)
  • 1 × Chassis Grounding Port (4mm)
  • 1 × AC Power Inlet
• Streaming Sources
  • Streaming Services*
    • Qobuz, TIDAL, Deezer, HighResAudio, IDAGIO
    • Spotify Connect, TIDAL Connect, Qobuz Connect
    • Internet Radio & Podcasts
    • Radio Paradise FLAC and Interactive Services
  • Local Music Files
    • Internal M.2 NVMe SSD
    • NAS Drives/Servers
    • USB Drives**
• CD Ripping
  • Available via external USB optical drive and installed SSD storage
  • Metadata Sources: Discogs, FreeDB, GD3, MusicBrainz
  • Ripping Format Options: FLAC or WAV
• Control Software & Integrations
  • Innuos Sense App for iPadOS/iOS v16.6 or later
  • Innuos Sense App for Android 7 or later
  • Innuos Sense App for Amazon Fire OS 7 or later
  • Web browser access via my.innuos.com or local IP address
  • Optional: Roon (Core and Endpoint), HQPlayer (NAA), AssetUPnP (Server Mode)
• Power
  • 230V AC / 115V AC
• Dimensions & Weight
  • 420mm (W) × 330mm (D) × 85mm (H)
• Contents
  • Innuos Stream3
  • AC Power Cable (2.0m)
  • Ethernet Cable (2.0m)
  • Quick Start Guide

*Premium subscription required
**‘Folder View’ only; full library integration unavailable
