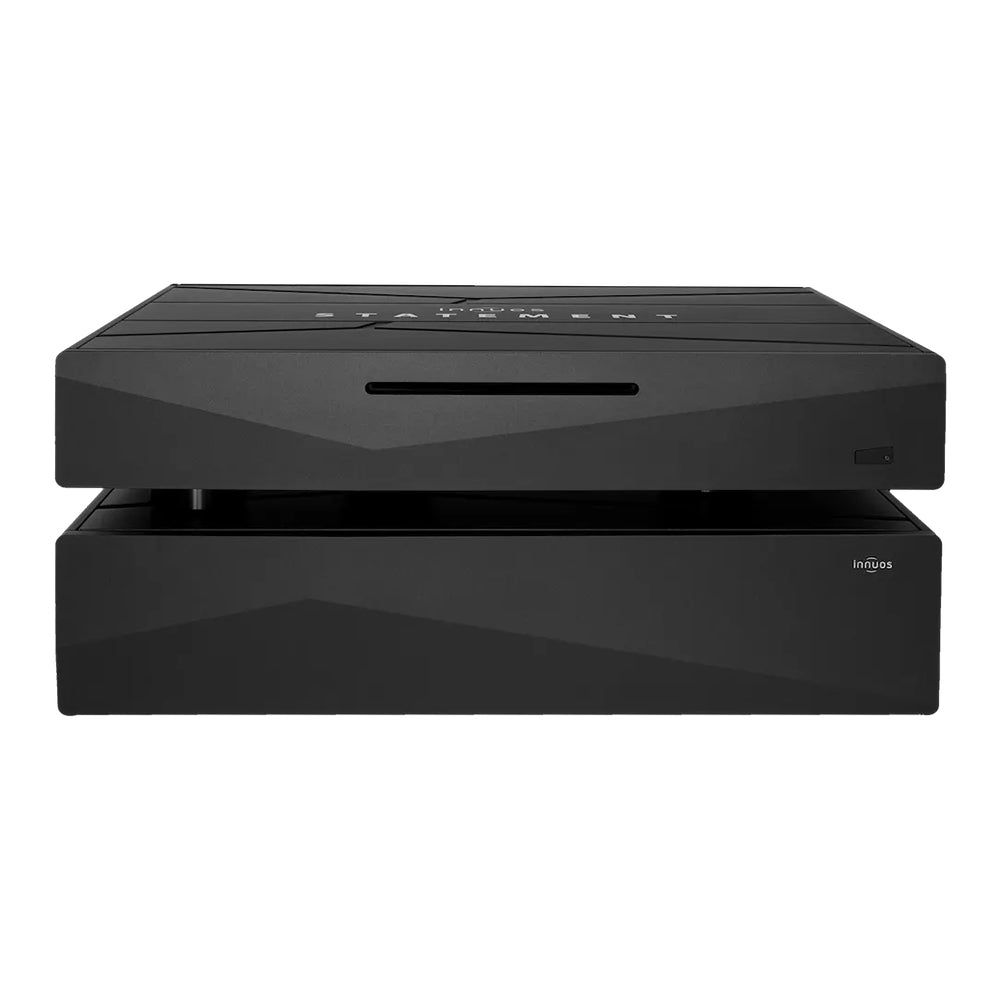

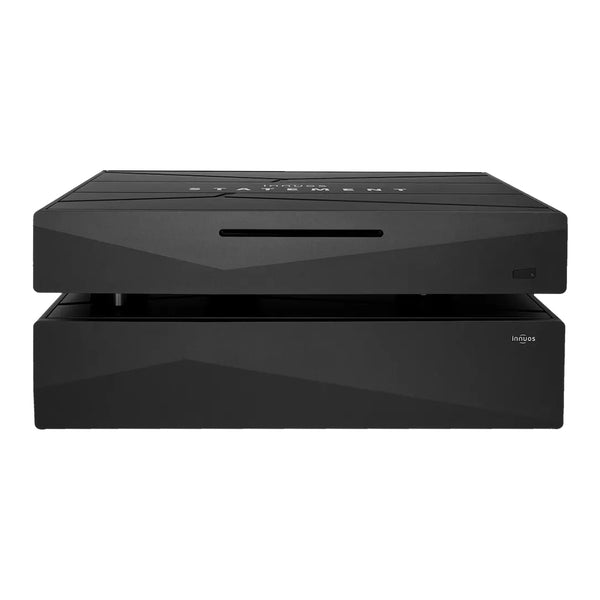

Innuos STATEMENT NEXT GEN Network Server

The Next Gen Power Supply is the result of Innuos’ ongoing research and development efforts with an innovative power supply design and top-of-the-line components.

The results are crystal clear: superb realism with detailed textures, expansive soundstage and wide dynamics.

The upgraded STATEMENT umbilical cables, produced exclusively by The Chord Company, improve upon the stock cables with a multi-stranded design and significantly more shielding. They also come in longer length options allowing you to separate the two STATEMENT components on to independent platforms for further isolation.

Power to perform
Each critical component of the server receives its own dedicated power supply from one of the 8 independent power rails, further preventing component cross-contamination. The STATEMENT uses a dedicated power supply for each of the Ethernet and USB high-precision oven-controlled crystal oscillator (OCXO) clocks, ensuring these clocks work at their best.

Optimised chassis
Housed in a casing of 10mm-thick CNC-machined aluminum, the STATEMENT is not just a pretty face. The thick metal enclosure helps to isolate external EMI, and its weight helps dampen harmful vibration into the system. By using a double-enclosure design, it also helps to contain the vibration effects of the massive 540VA toroidal transformer at its heart.

Precision-time signal
STATEMENT’s custom-designed components include USB and Ethernet
re-clocking for higher precision and lower phase noise. At the heart of the design are 3 principles: The use of very high-precision 3 parts per billion (3ppb) OCXO clocks for timing the signals, extreme care in powering important components preventing cross-contamination, and extremely short paths between components.

Reaching higher
The Next-Gen power section uses two custom-designed ARC6 AC/DC modules – each containing a high-precision active rectifier board, a massive 10mH DC choke and substantial capacitance provided by six Mundorf caps.

Smoother performance
The ARC6 modules are mounted on the new Adaptive Vibration Control (AVC) platform – a combination of Panzerholz wood with a specific density gel layer, which is highly effective at dampening high-frequency vibration coming from the chassis.
In the server section, the regulator modules include a dedicated processor booster module, providing up to 15A of current to the processor for faster transients. All rails are further smoothed by new Audio Note KAISEI capacitors benefitting all the main components: motherboard, USB reclocker, Ethernet clock module and SSD.

• Audio Outputs
  • Re-clocked USB 2.0 supporting USB Audio Class 2, DoP, Native DSD, and MQA
  • Re-clocked dedicated Ethernet Streamer Port
  • Supported formats: 16, 24, or 32-bit / 44.1kHz up to 768kHz, DSD64, DSD128, Native DSD up to DSD512 on selected DACs

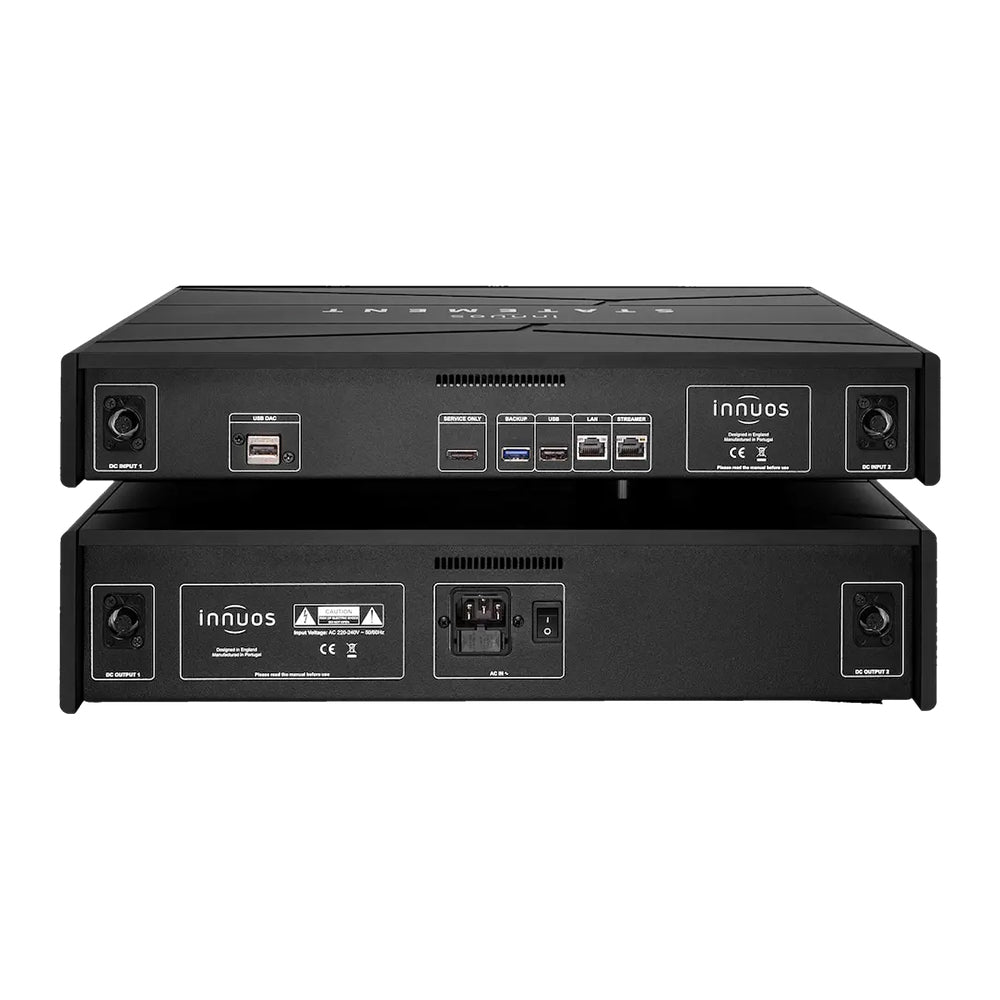

• Connectivity
  • 2 × Rear panel RJ45 – Bridged Gigabit Ethernet
  • 2 × USB 2.0 (1 × re-clocked), 1 × USB 3.0
• Formats
  • CD Formats: Red Book
  • Disc Compatibility: CD, CD-R, CD-RW
  • CD Ripper Formats: FLAC (zero compression), WAV
  • Playback Audio Formats: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA
• User Control Interfaces
  • Web Interface: Modern web browsers from iOS, Android, Windows, and Mac OS X
  • Mobile: Innuos Sense App (iOS/Android/Kindle Fire)
• Hardware
  • Storage Options: 1TB, 2TB, 4TB, 8TB power-loss protection SSD with vibration and EMI treatment
  • Ripping: TEAC slot-loading drive with metadata from FreeDB, MusicBrainz, Discogs, GD3
• Streaming and Compatibility
  • Streaming Services: NAS, Deezer, HighResAudio, Qobuz, TIDAL, Radio Paradise, Internet Radio
  • Integrated UPnP Server
  • Compatibility:
    • Roon Core and Roon Bridge
    • Sonos Multi-room
    • DLNA/UPnP compatible devices
    • USB DACs complying to USB Audio Class 2 or supporting DSD over DoP protocol
    • Native DSD via supported USB DACs
• Requirements
  • Internet connection for album metadata, Internet Radio, streaming services, and software updates
  • Network access via Ethernet
  • Premium subscription required for some streaming services such as Qobuz, TIDAL, etc.
• Power
  • Mains Supply: 230V AC / 115V AC – 8× Internal Linear Power Supply
  • Power Consumption: 20W when idle, 35W peak
• Physical
  • Dimensions:
    • Server: 420mm × 352mm × 88mm (W × D × H)
    • Power Supply: 420mm × 352mm × 102mm (W × D × H)
  • Weight:
    • Server: 8.2 kg
    • Power Supply: 16.4 kg
  • In the Box:
    • Innuos STATEMENT NG Music Server
    • Mains Cable
    • 2 × 0.3m Umbilical Interconnect
    • 2m Ethernet Cable
    • Quick Start Guide
