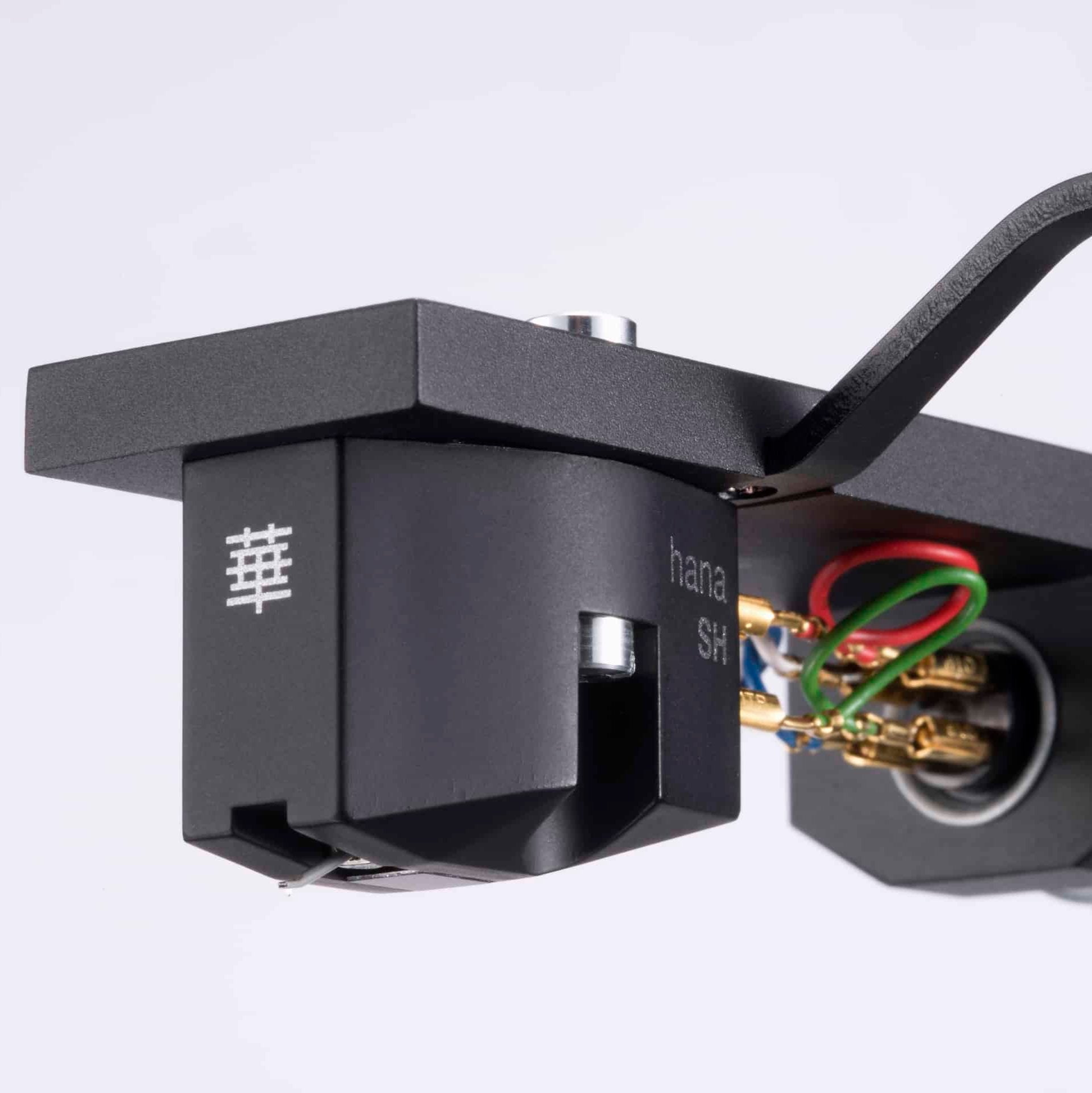

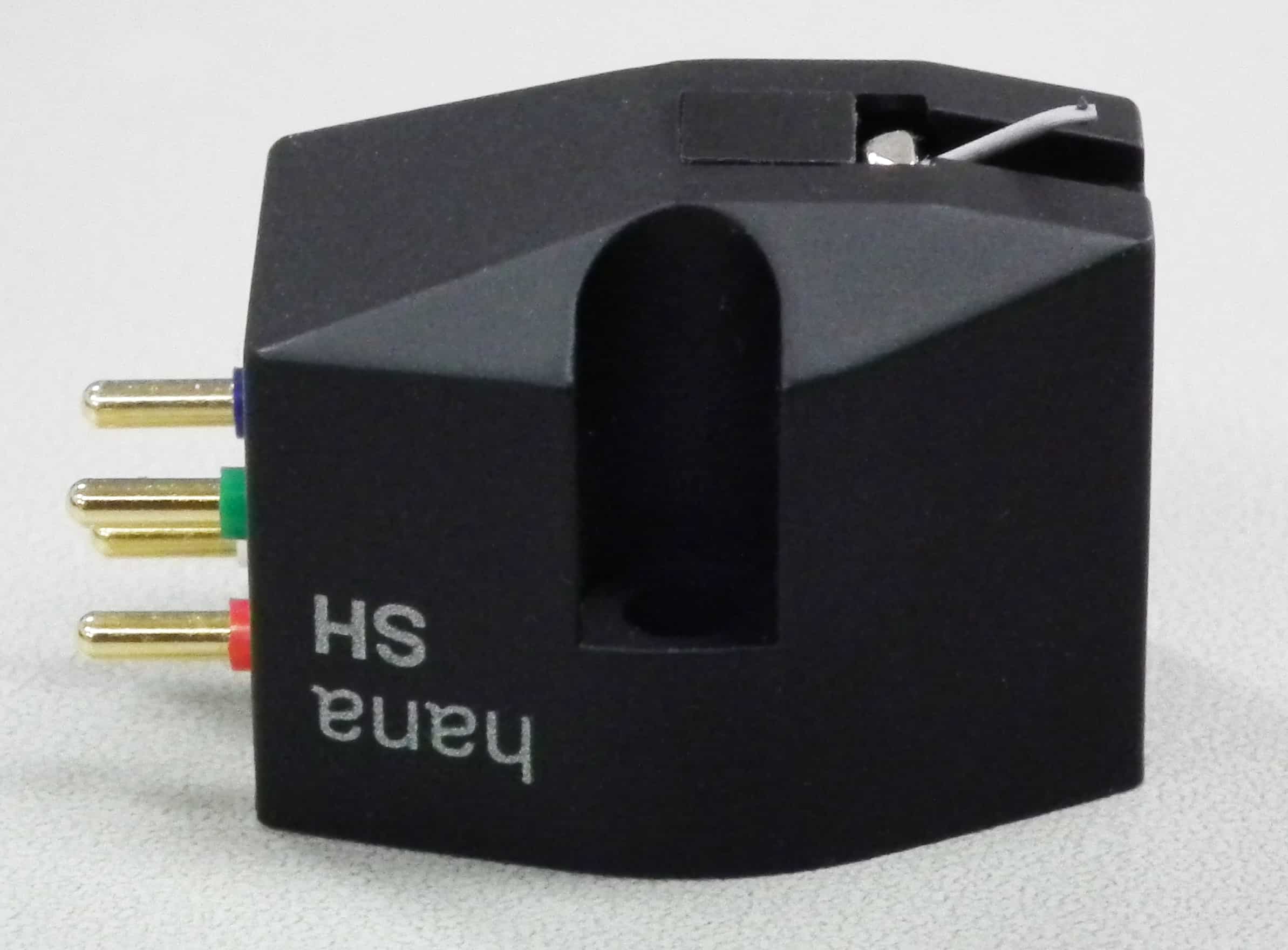

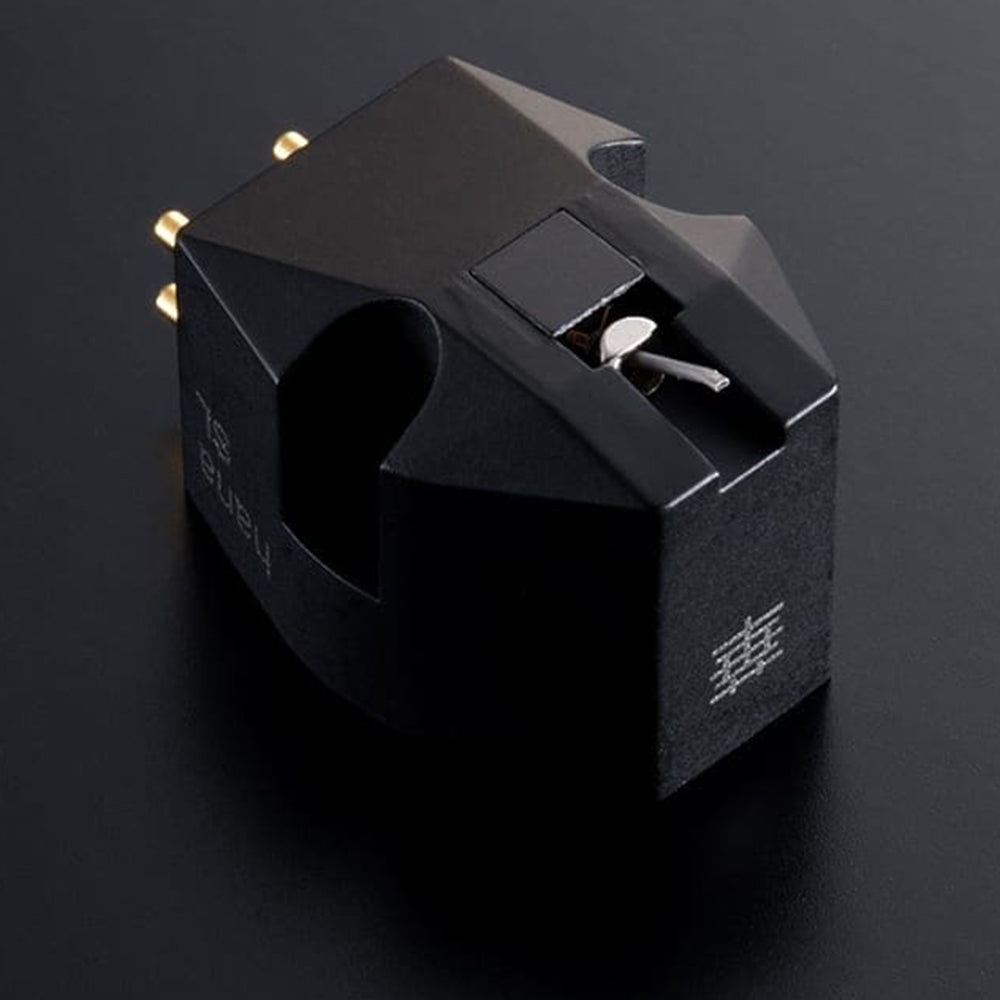

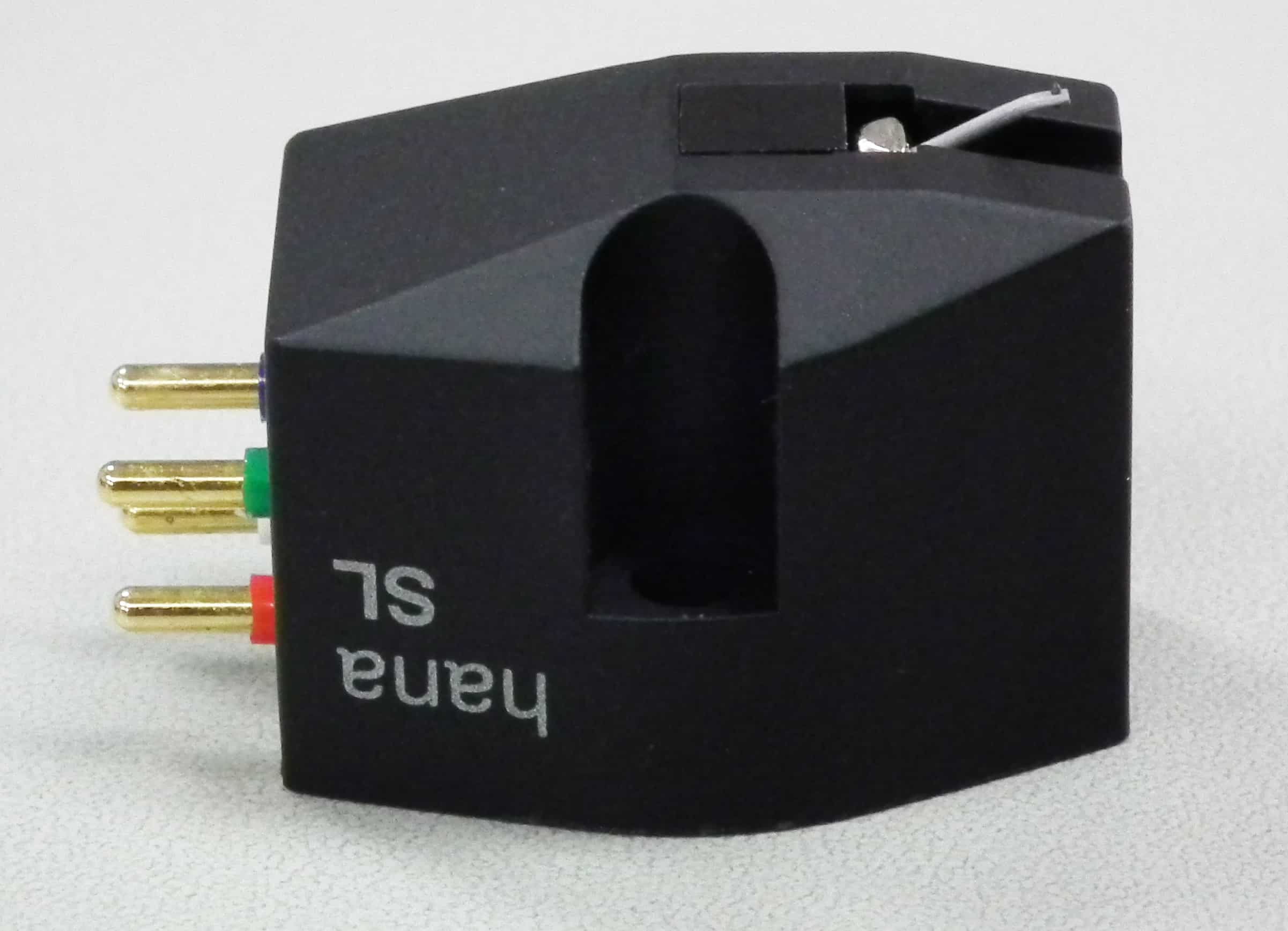

Hana SH/SL Cartridge

  • $750.00
Zoom image

Hana SH/SL Cartridge

Type:
  • $750.00

The Hana SL and SH models, distinguished by their black body, provide tighter channel balance, greater channel separation, and improved high-frequency extension compared to their EH and EL counterparts. The SL and SH models also feature an upgraded Shibata stylus. Hana cartridges by Excel represent the best materials, including alnico magnets, cross-shaped armatures, and proprietary manufacturing processes.

OVERVIEW

The Hana SL and SH models, distinguished by their black body, provide tighter channel balance, greater channel separation, and improved high-frequency extension compared to their EH and EL counterparts. The SL and SH models also feature an upgraded Shibata stylus.

Hana cartridges by Excel represent the best materials, including alnico magnets, cross-shaped armatures, and proprietary manufacturing processes. Hana has excelled at creating MC cartridges noted worldwide for their sound and value, which retain their “musical magic” regardless of their phono stage pairing.

SPECIFICATIONS

• Output Voltage: SH 2mV, SL 0.5mV
• Stylus shape: Shibata
• Impedance: SH 130Ω/1kHz, SL 30Ω/1kHz
• Suggested Loading: SH 47kΩ, SL >400Ω
• Weight: 5.0 grams
• Compliance: 10 µm/mN
• Tracking force: 2.0 grams
• Warranty: 2 years

Availability: This product typically ships in 1-2 weeks.
