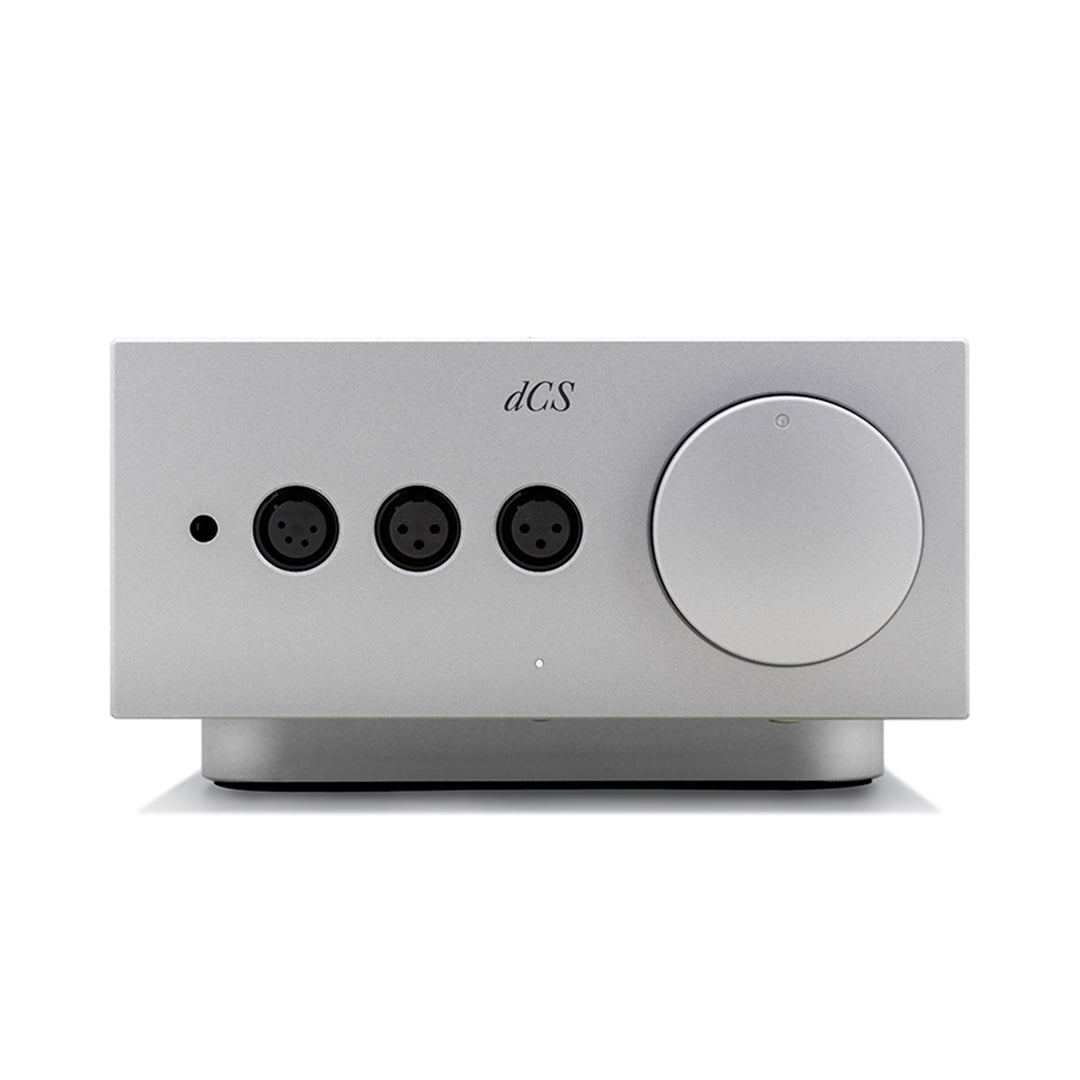

dCS Lina Headphone Amplifier (Silver Finish)

dCS Lina Deep Dive, Part 1: Drive -- An in-depth look at the design of the Lina Headphone Amplifier, exploring how dCS' engineers set out to create a versatile amp that can drive even the most demanding headphones to their full potential.

This powerful solid state, Class AB amplifier is engineered to drive a vast range of headphones - from planars to sensitive IEMS - to their full potential. With its low noise floor, wide bandwidth, vast dynamic range, and excellent linearity, it delivers all of the sonic benefits you’d expect from a dCS product, and is designed to complement virtually any headfi setup.

• Class AB design with DC servo system delivers high power efficiency and excellent linearity
• Solid state design delivers consistent, clean performance
• Solid aluminium chassis minimises the risk of electromagnetic interference for enhanced audio performance
• Includes 3 headphone outputs. 1 x dual 3-pin balanced XLR, right and left channel. 1 x single 4-pin balanced XLR. 1 x single 1/4’’ (6.35mm)headphone jack

• Product Dimensions / Weight: 121.5mm (H) x 220mm (W) x 356mm (D) / 7.5kg

• Finish: Silver machined aluminium

• Electronics: Pure analog design; automatic voltage switching

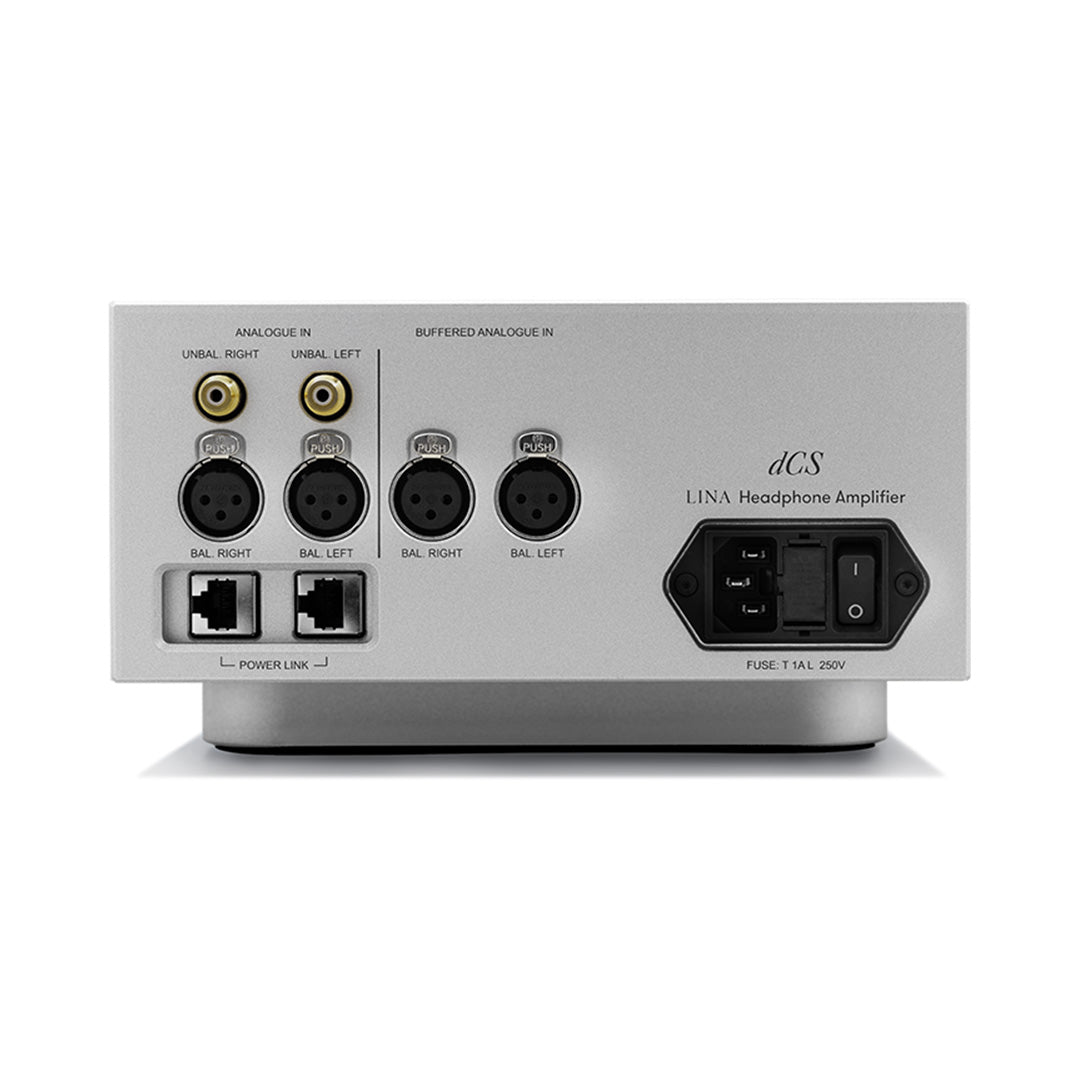

• Analog Inputs
• 1 x stereo pair unbalanced RCA, input impedance 48kΩ
• 1 x stereo pair unbuffered balanced XLR, input impedance 16kΩ
• 1 x stereo pair buffered balanced XLR, input impedance 96kΩ

• Headphone Outputs
• 1 x dual 3-pin balanced XLR, right and left channel
• 1 x single 4-pin balanced XLR
• 1 x single ¼” (6.35mm) headphone jack
• Power Link (synchronizing on/off state with other products): 2 x RJ45
• Power: 90-120v & 230-240v, 50/60Hz nominal
• Frequency Response: 1Hz-100kHz better than +0/-3dB
• THD+N: <0.005% @ 1kHz 6V rms balanced putput into 30 ohm (80kHz bandwidth)
• Channel Separation: Balanced input to balanced output into 30Ω. Better than 100dB @ 1kHz. Better than 80dB, 20Hz–20kHz.
• Signal to Noise Ratio: 110dB 20Hz-20kHz A-weighted (referenced to 6V dms balanced input and output)
• Power Output
• 2x Balanced 2W into 30Ω
• 2x Balanced 0.48W into 300Ω
• 2x Unbalanced 1.6W into 30Ω
• 2x Unbalanced 0.2W into 300Ω
• Included with Lina Headphone Amplifier: 1 x mains cable; 2 x XLR (0.5m); 1 x Ethernet cable (2m); 1 x Power Link cable (0.5m)
