Clearaudio Innovation Basic Wood Turntable

Price
$8,500.00
Finish:Silver/Natural
Tonearm:None
The Innovation Basic Wood is based on the technology of the Clearaudio Innovation Wood turntable, but uses a single, smaller plinth as opposed to the stainless steel sub-platter found on the Innovation Wood. Its resonance-optimized chassis shape is based on the proven success of Clearaudio’s three-point design — a combination of Panzerholz wood, aluminum layers, and aluminum pods.

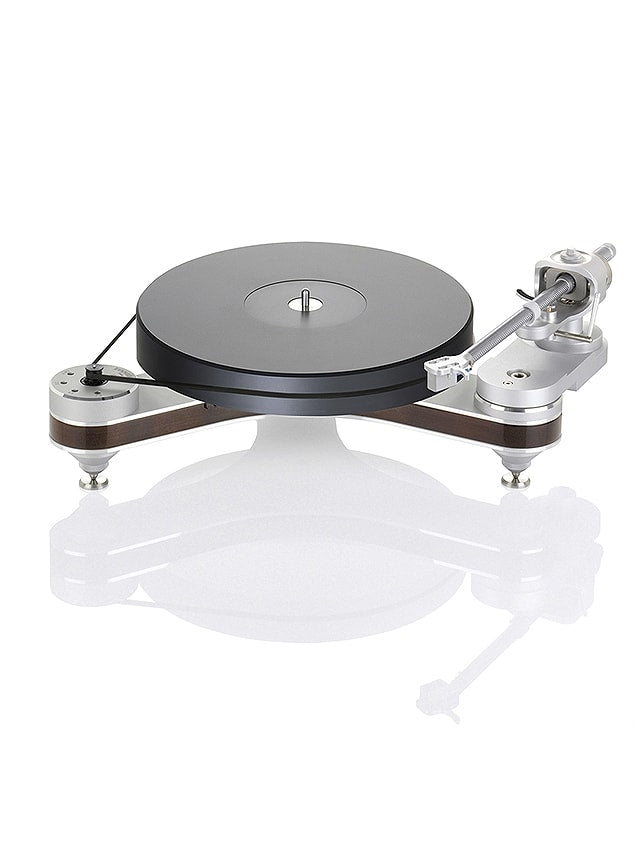

The Innovation Basic Wood is available in Silver aluminum with Panzerholz wood finished in Natural or upgraded Piano Black Lacquer.





OVERVIEW

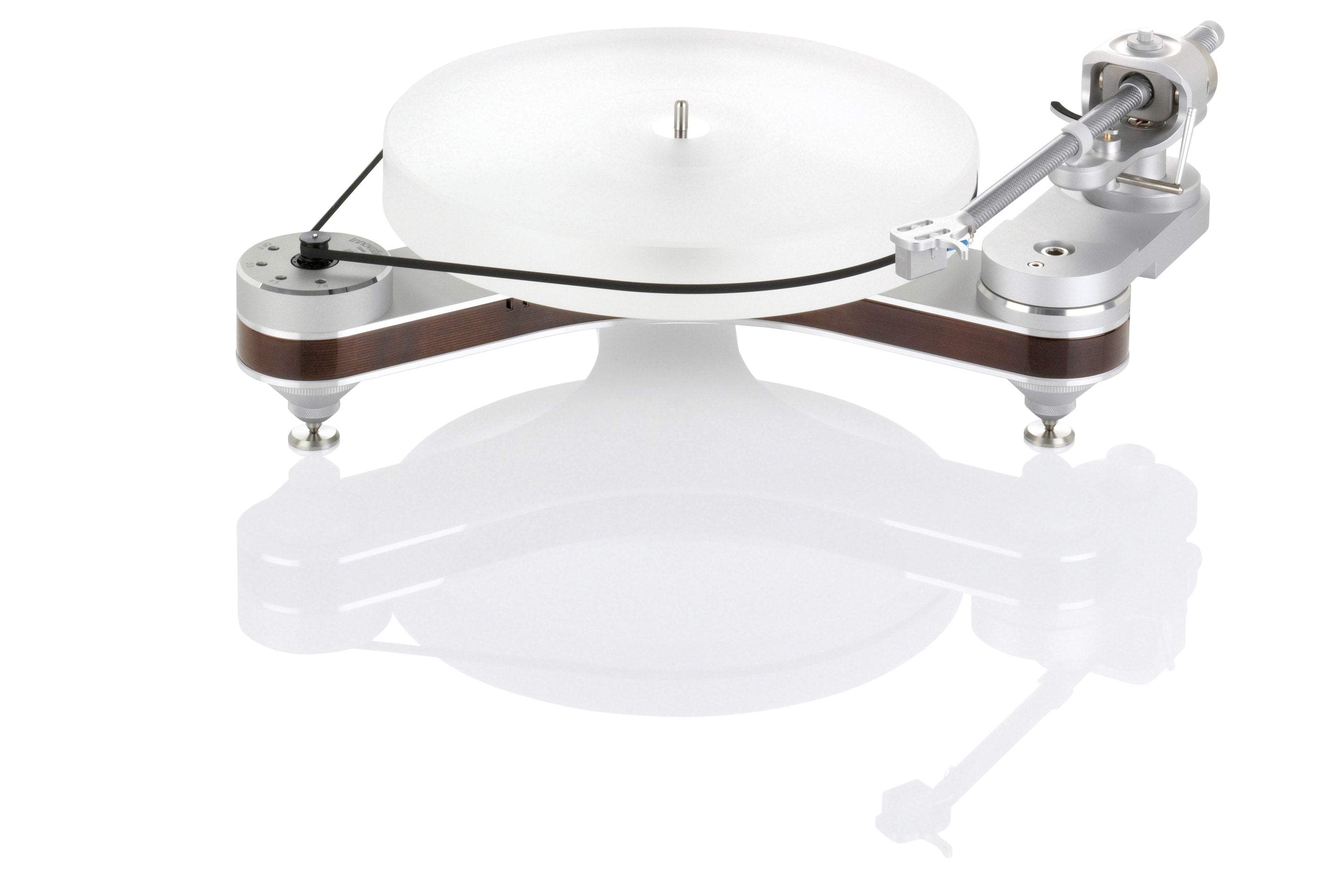

The Innovation Basic Wood uses Clearaudio’s patented CMB (Ceramic Magnetic Bearing) technology, where the platter magnetically levitates on an inverted bearing attached to a low-friction ceramic shaft. The high-torque DC motor is equipped with electronic OSC (Optical Speed Control). The high-density, dynamically balanced 38mm polyoxymethylene (POM) platter provides excellent dimensional stability. A clear acrylic platter is available by special order. The Innovation Basic Wood also features a second tonearm mount.

The Innovation Basic Wood is available in Silver aluminum with Panzerholz wood finished in Natural or upgraded Piano Black Lacquer.

TONEARM OPTIONS

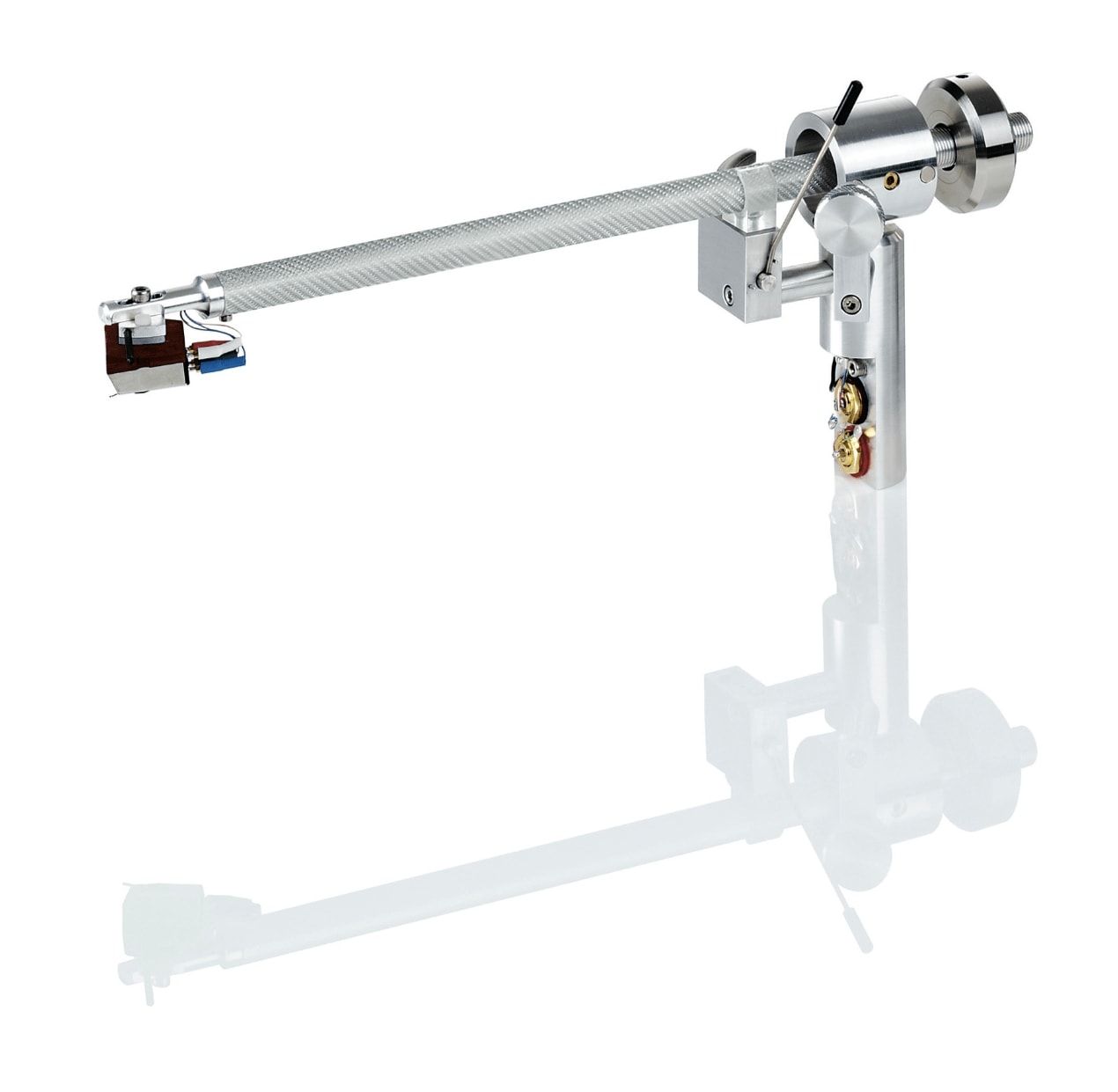

Satisfy Carbon Fiber
The Satisfy CF (Carbon Fiber) tonearm features high-quality, handmade Swiss vertical and lateral bearings composed of polished sapphire. A carbon fiber arm tube is exceptionally rigid and reduces resonance for enhanced clarity. A two-piece aluminum headshell with adjustable azimuth allows the accurate alignment of any phono cartridge type. Anti-skating control is applied by an innovative magnetic system that acts on the side of the bearing housing. Clearaudio’s hardwired Direct Wire tonearm cable assures signal integrity, ideal for all high-quality cartridges, including low-output moving coils.

The Satisfy CF uses the Clearaudio/Linn standard mount, making it compatible with all Clearaudio turntables and an ideal replacement tonearm for other brand turntables.

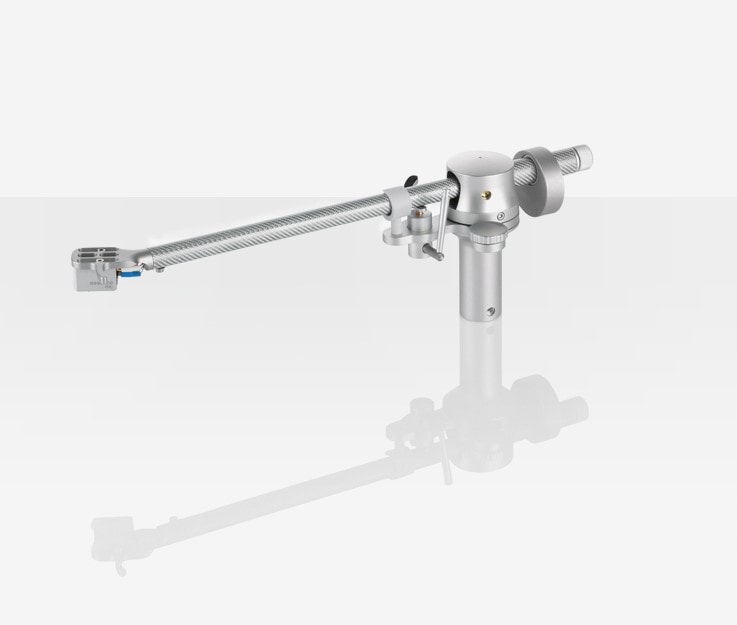

Tracer Tonearm
The Tracer Tonearm is a pivoted tonearm with adjustable VTA, azimuth, and anti-skate. Tracer also features a mechanical bearing, precision VTF adjuster, and 1M DirectWire cable.

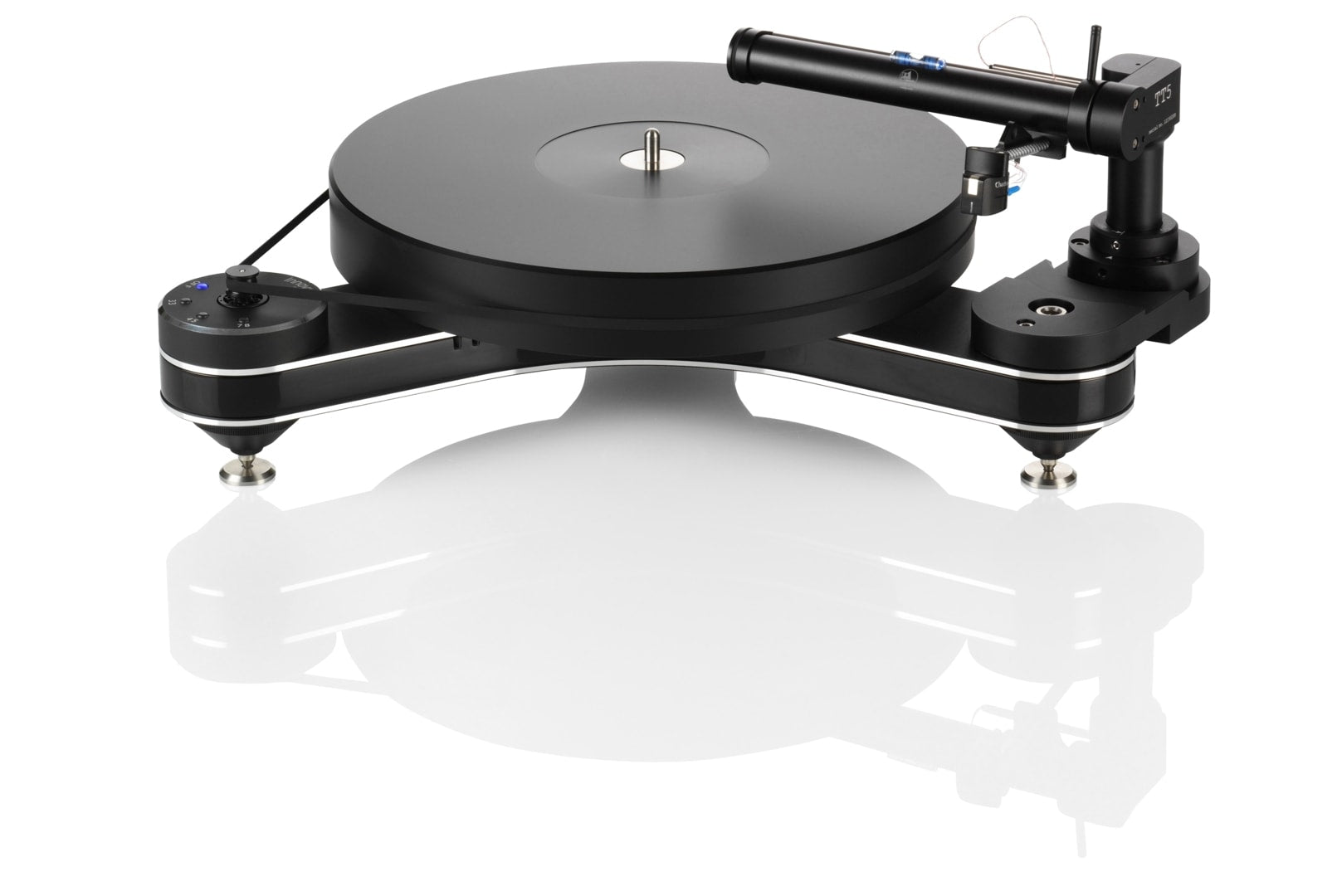

TT-5 Linear Tonearm
The new TT-5 linear tracking tonearm with Swing Base features a fixed, rigid construction. Like all Clearaudio linear tonearms, it moves tangentially with the record groove, pulling the armwand along a polished glass rod on precision rollers. The TT-5 Swing Base allows the entire arm to be swung out of the way when changing records, not compromising rigidity or performance.

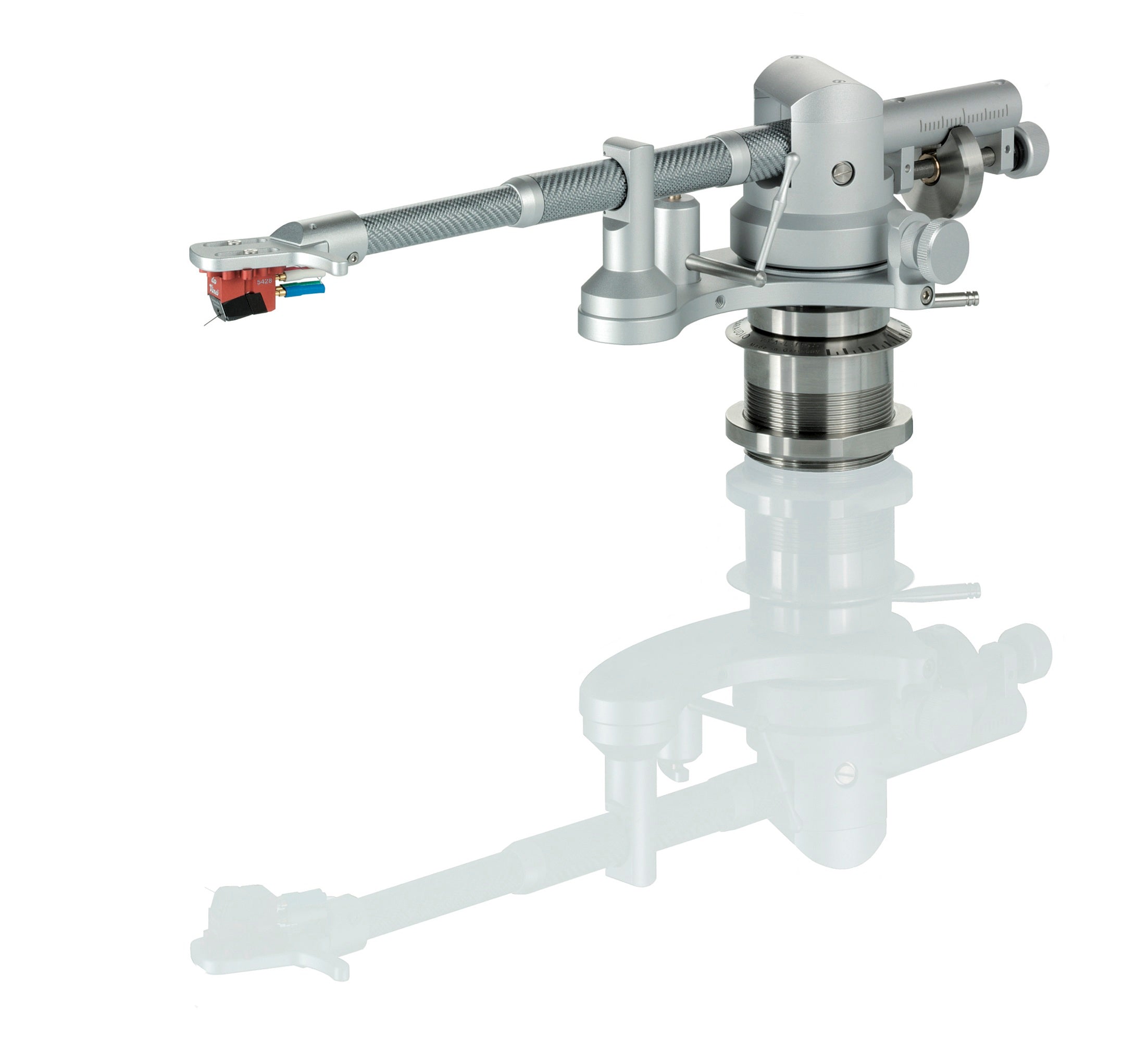

Universal Tonearm
The carefully hand-assembled Universal is Clearaudio’s finest pivoted tonearm. Its vertical and horizontal ball bearing assembly is precision-machined to ultra-high tolerances. The Universal features a three-piece carbon fiber arm tube, reducing resonances to a vanishing degree and delivering excellent performance with a wide range of phono cartridges. Its aluminum one-piece headshell allows for accurate azimuth adjustment, reduces mass, and increases rigidity. Additionally, fine adjustments for anti-skate and vertical tracking force (VTF) offers accurate alignment of any phono cartridge type.

The Universal comes with easily interchangeable counterweights, allowing it to work with nearly any cartridge manufactured today. Its internal wiring is Clearaudio’s best Six Stream cable, as found on their Statement TT-1 tonearm. This assures superior signal integrity, and is ideal for all high-quality cartridges, including low-output moving coils. The Universal uses the Clearaudio/Linn standard mount, making it compatible with all Clearaudio turntables and an ideal replacement tonearm for other brand turntables. Available in 9-inch and 12-inch versions.



SPECIFICATIONS



  • Construction details: Resonance-optimized chassis shape, belt-driven with self-adjusting speed control, dynamically balanced 70 mm / 2.75" POM platter

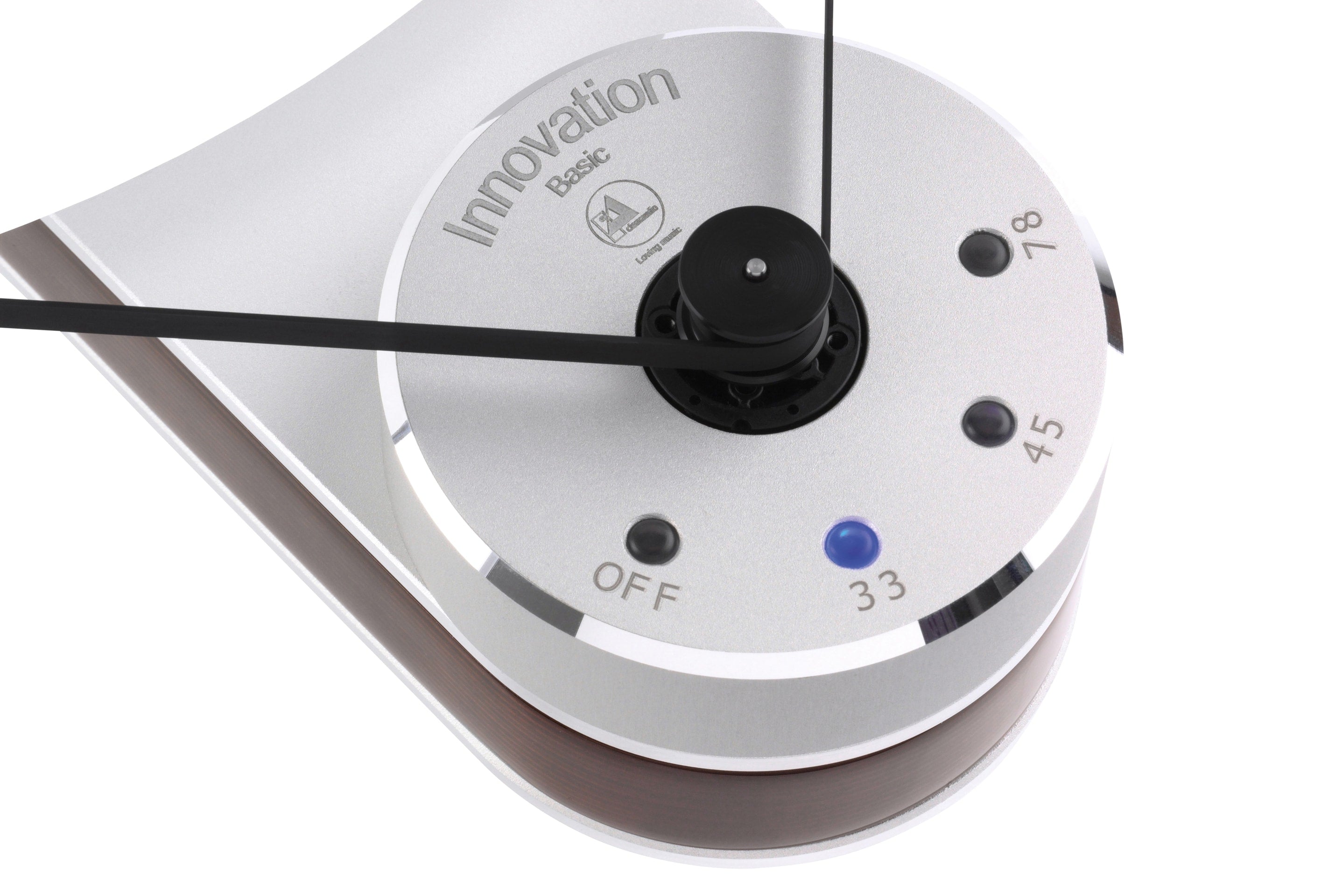

  • Speed ranges: 33 1/3, 45, and 78 RPM, convenient electronic controls
  • Motor: High-torque DC motor
  • Bearing: CMB (Ceramic Magnetic Bearing)
  • Platter: CNC-machined POM (polyoxymethylene), 70 mm thickness
  • Speed accuracy: less than +- 0.05 %
  • Weight: 26 lbs without tonearm and power supply
  • Dimensions: 18.86" x 19.09" x 5.55"
  • Other special features: OSC (optical speed control) in real time via infrared sensor, playback with two tonearms possible
  • Warranty: 5 years



In stock! Usually ships within 24 hours.
Availability: This product is available for purchase in-store only. Contact us for more information.
