$1,295.00
$1,795.00

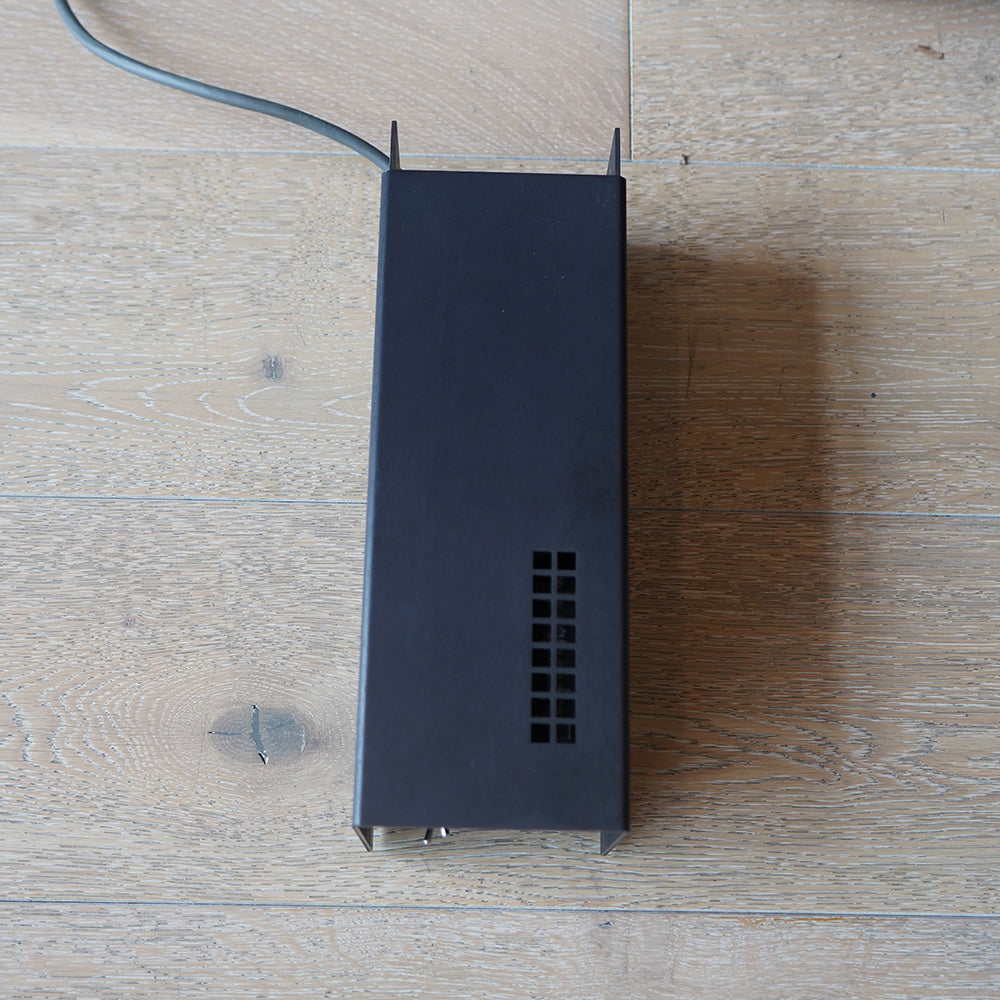

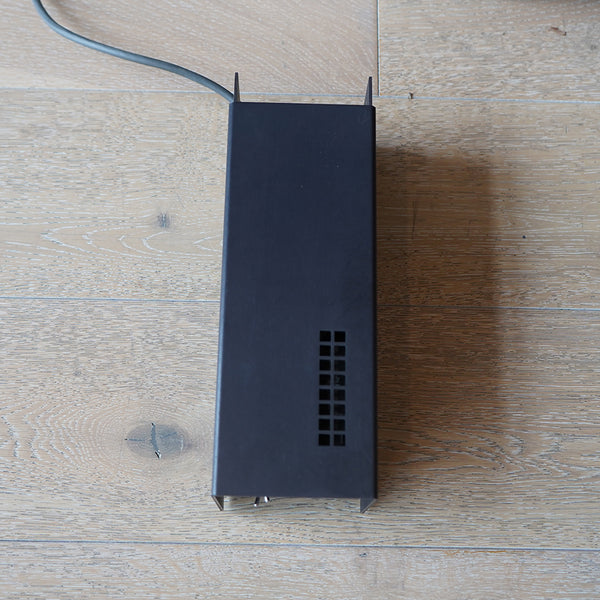

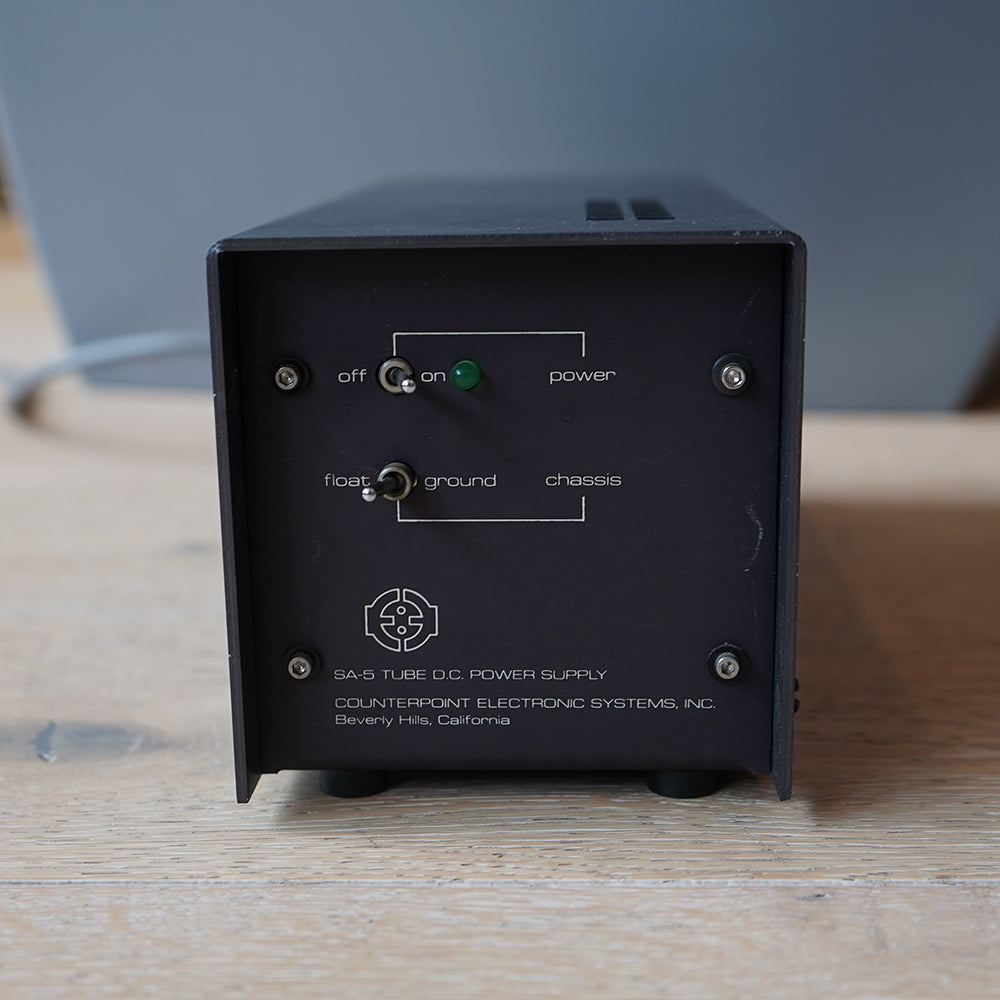

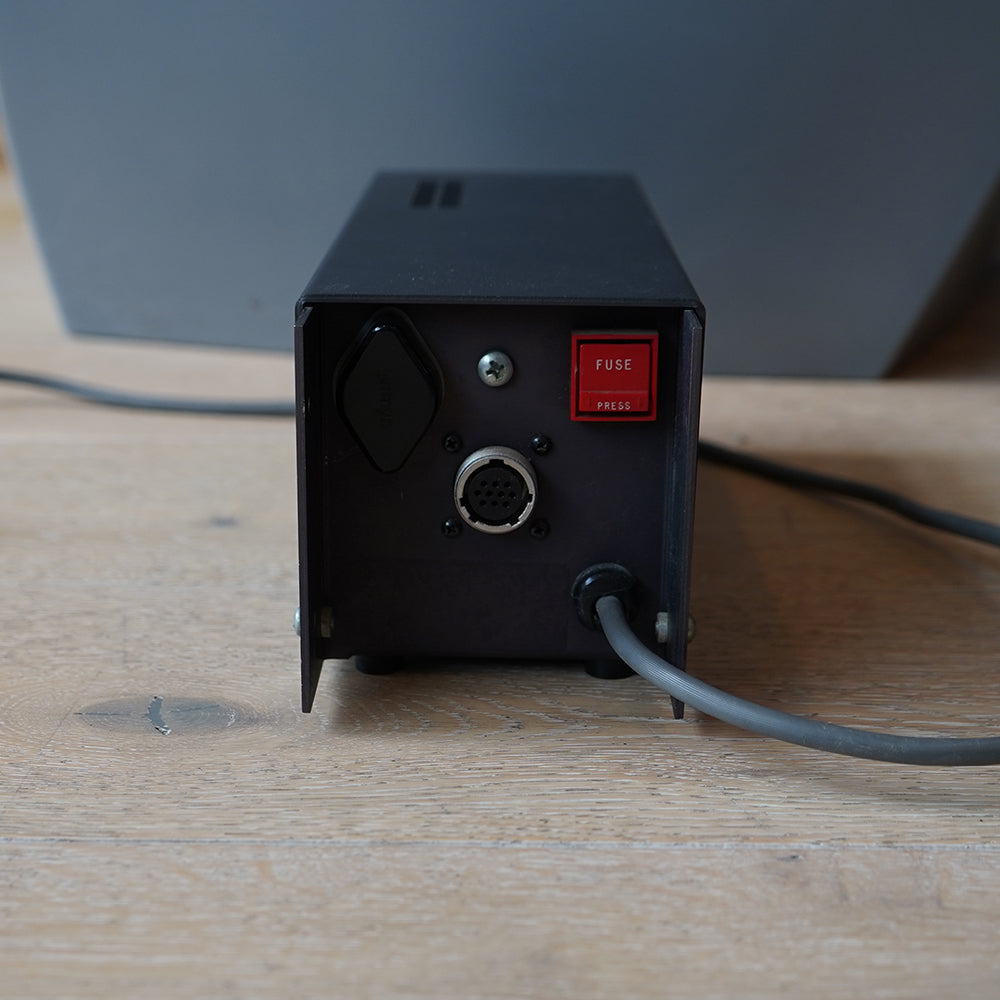

A tube type preamplifier in which a DC power supply unit and a control amplifier unit are housed in a separate case. The power supply unit containing the large-capacity power transformer, filament constant voltage circuit, rectifier circuit, and filter circuit is separated from the amplifier body and separated into a separate case. This reduces the adverse effect of AC hum noise caused by high voltage or filament voltage on the circuit of the body.
OVERVIEW

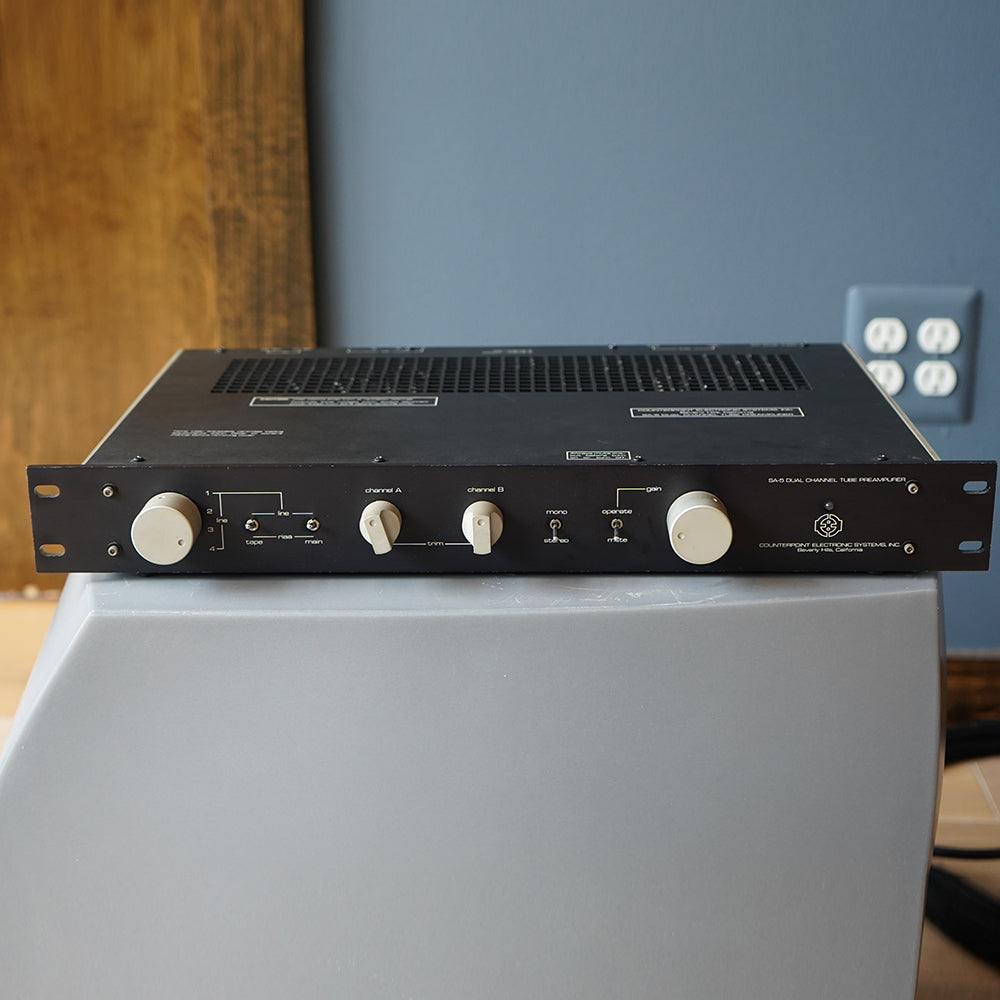

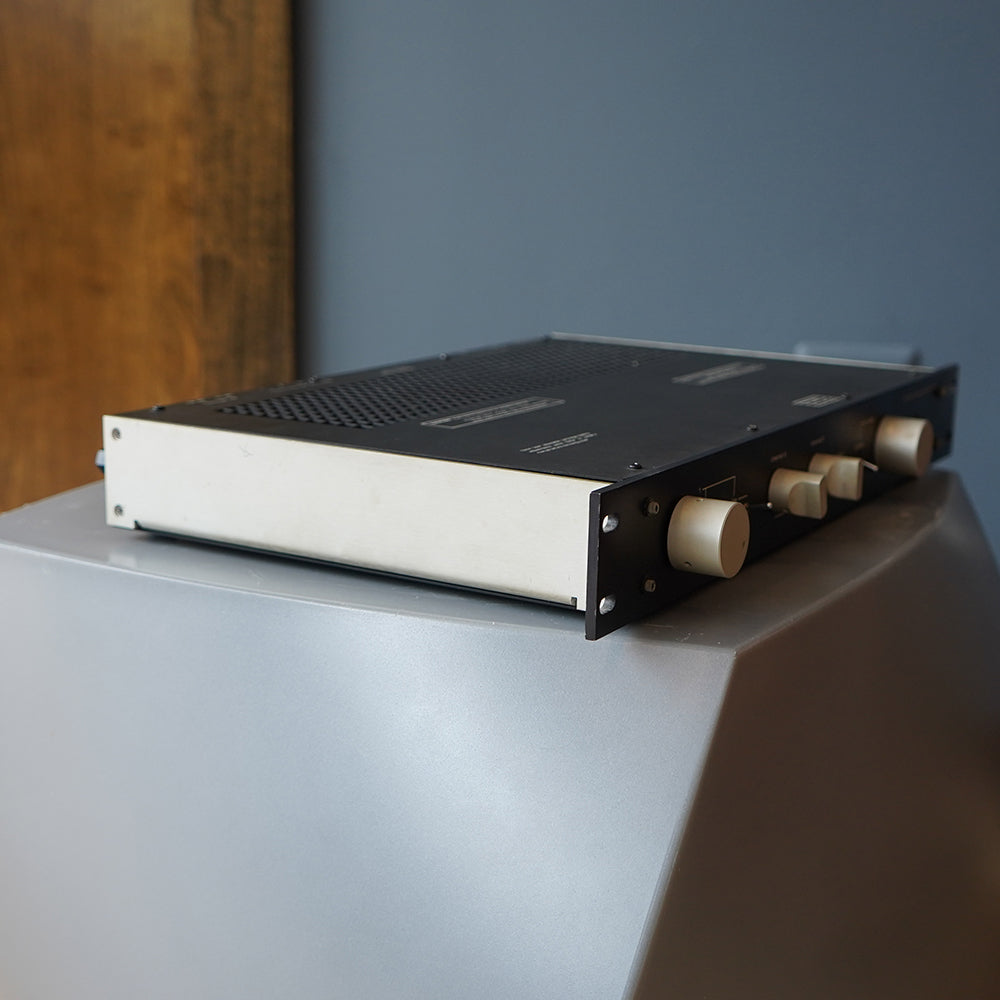

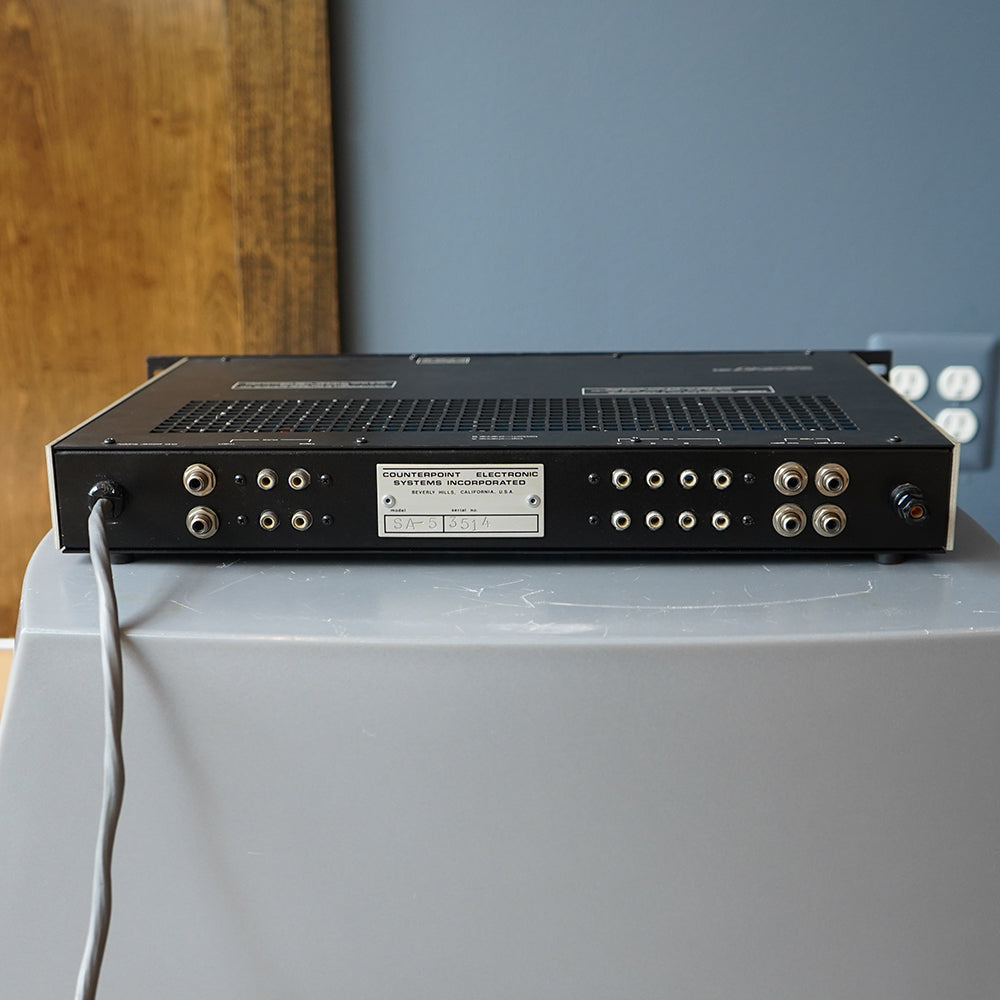

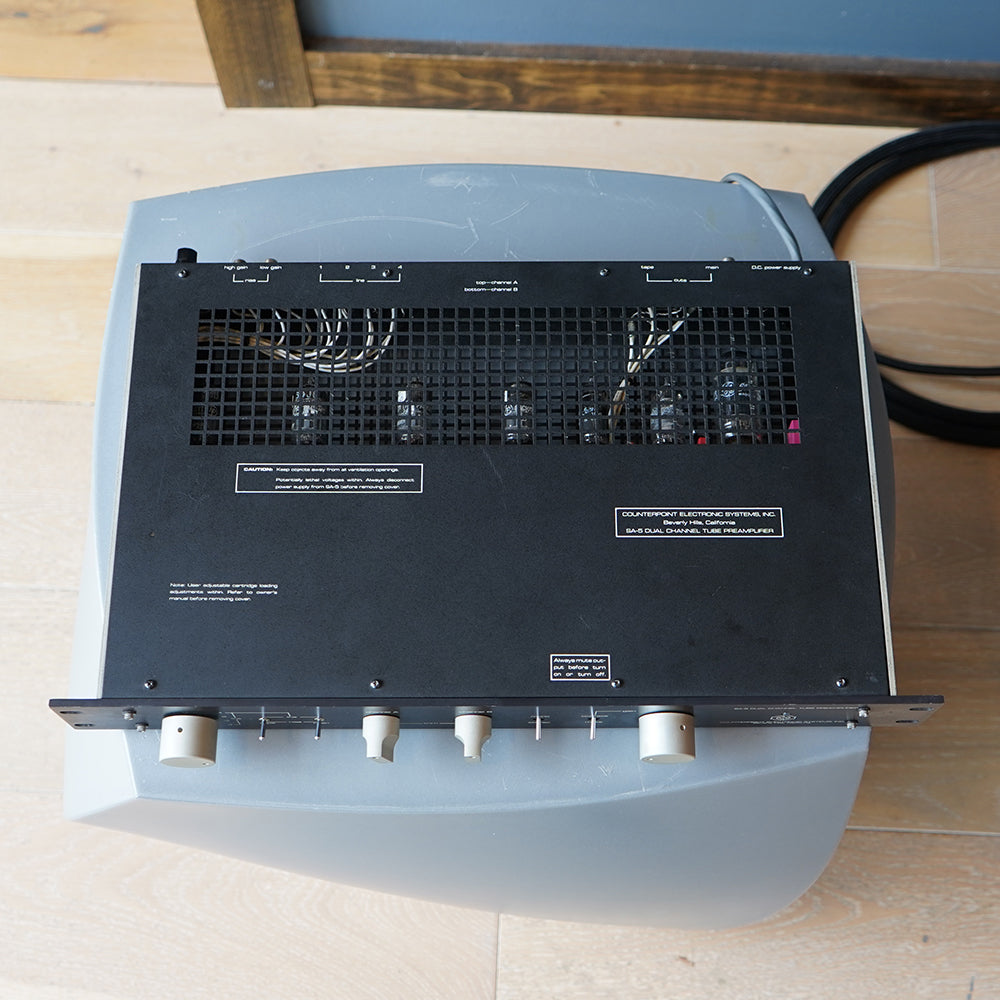

Great condition pre-owned Counter Point SA-5 Tube Preamplifier in black finish.

Unit does not come with original box but will be professionally packed for shipping.

Rated 8/10 for minor cosmetic wear consistent with age and use.

SPECIFICATIONS



  • Type: Tube type preamplifier
  • Gain (1 kHz): Low-gain RIAA input: 49 dB, High-gain RIAA input: 65 dB
  • Playback bandwidth: 5 Hz ~ 88 kHz (No Load), 5.5 Hz ~ 83 kHz (at 50k Ω load), 5.5 Hz ~ 50 kHz (50k Ω, 1000 pF Load)
  • Signal-to-noise ratio (100 mv1 kHz input standard): -86dB (400 Hz to 80 kHz, input short), -83dB (20 hz to 80 khz, input short)
  • Total harmonic distortion factor: 0.18% (1 kHz at 1 Vrms output)
  • RIAA deviation: 40 Hz to 22 kHz ± 0.05 dB
  • Rise time: 4 μ sec (No Load), 7 μ sec (at 1000 pf Load)
  • Maximum power output: 30 v (peak)
  • External dimensions: Body : Width 483x Height 64x Depth 297 mm, Power Supply : 105 mm W x 110 mm H x 293 mm D
  • Weight: Body : 4.7 kg, Power supply : 3.4 kg



ADDITIONAL INFORMATION

Please call 734.662.3595 and ask for Richard if you have any questions about this product.

We make every effort to update our ads quickly when inventory fluctuates, but we encourage you to call and check product availability, as we are also a brick and mortar store.

Only 1 left in stock!
