Just as the Reference Anniversary was shockingly better than its predecessors, the Reference 10 offers a further level of resolution, refinement and dynamism that vividly improve the musical experience in every way. Words can only fall short of your own experience; to understand how much more profound listening to your favorite recordings can be, you must hear the Reference 10. It is stunning.
OVERVIEW
Just as the Reference Anniversary was shockingly better than its predecessors, the Reference 10 offers a further level of resolution, refinement and dynamism that vividly improve the musical experience in every way. Words can only fall short of your own experience; to understand how much more profound listening to your favorite recordings can be, you must hear the Reference 10.
FEATURES

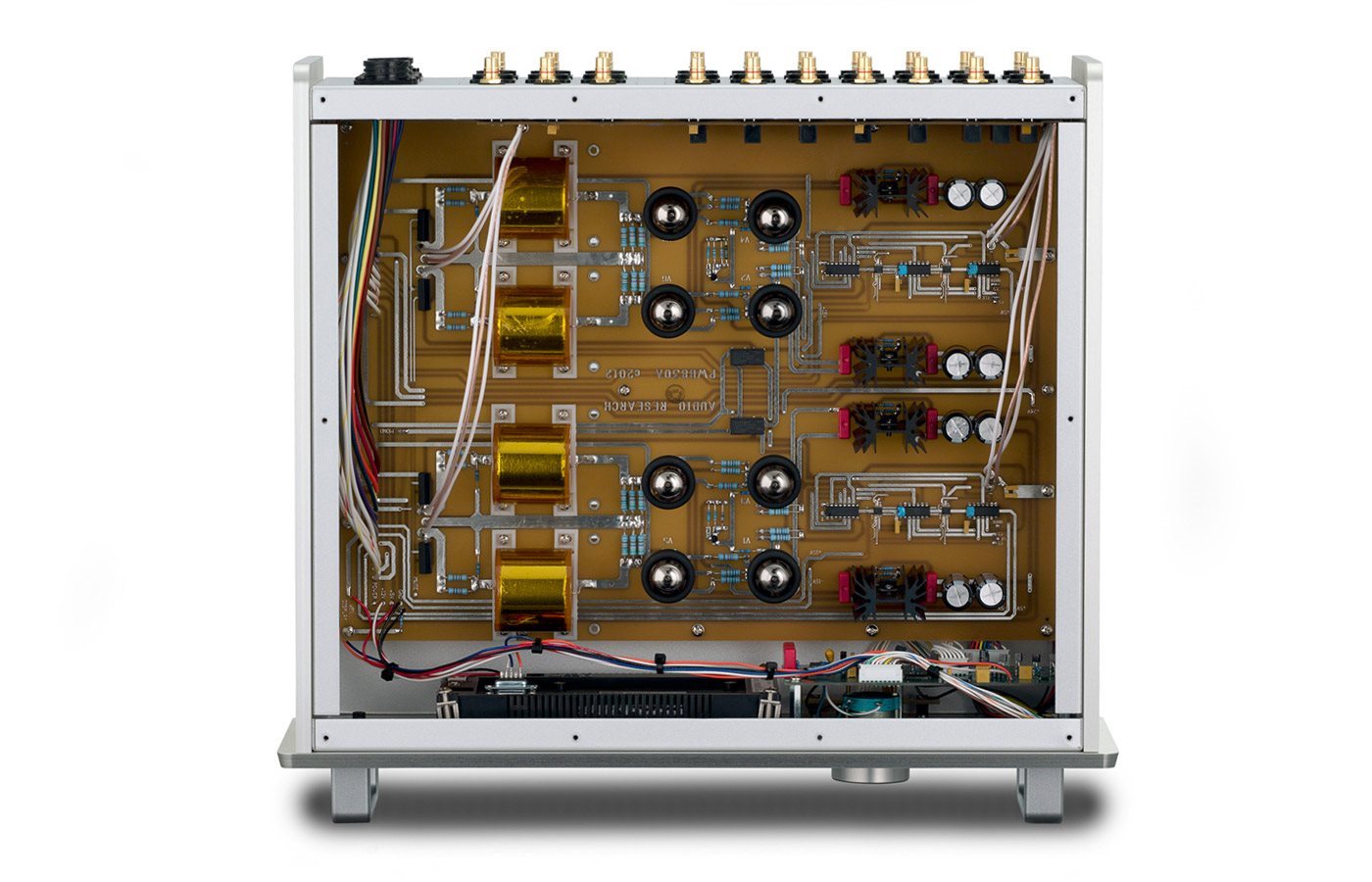

Inside the Reference 10 lies critically chosen new components, proprietary custom-made capacitors, wiring, and new connectors that cumulatively provide a level of performance never before achieved. Key Audio Research design traits remain: The signal path is fully discrete, all-tube, pure Class-A, with zero feedback.

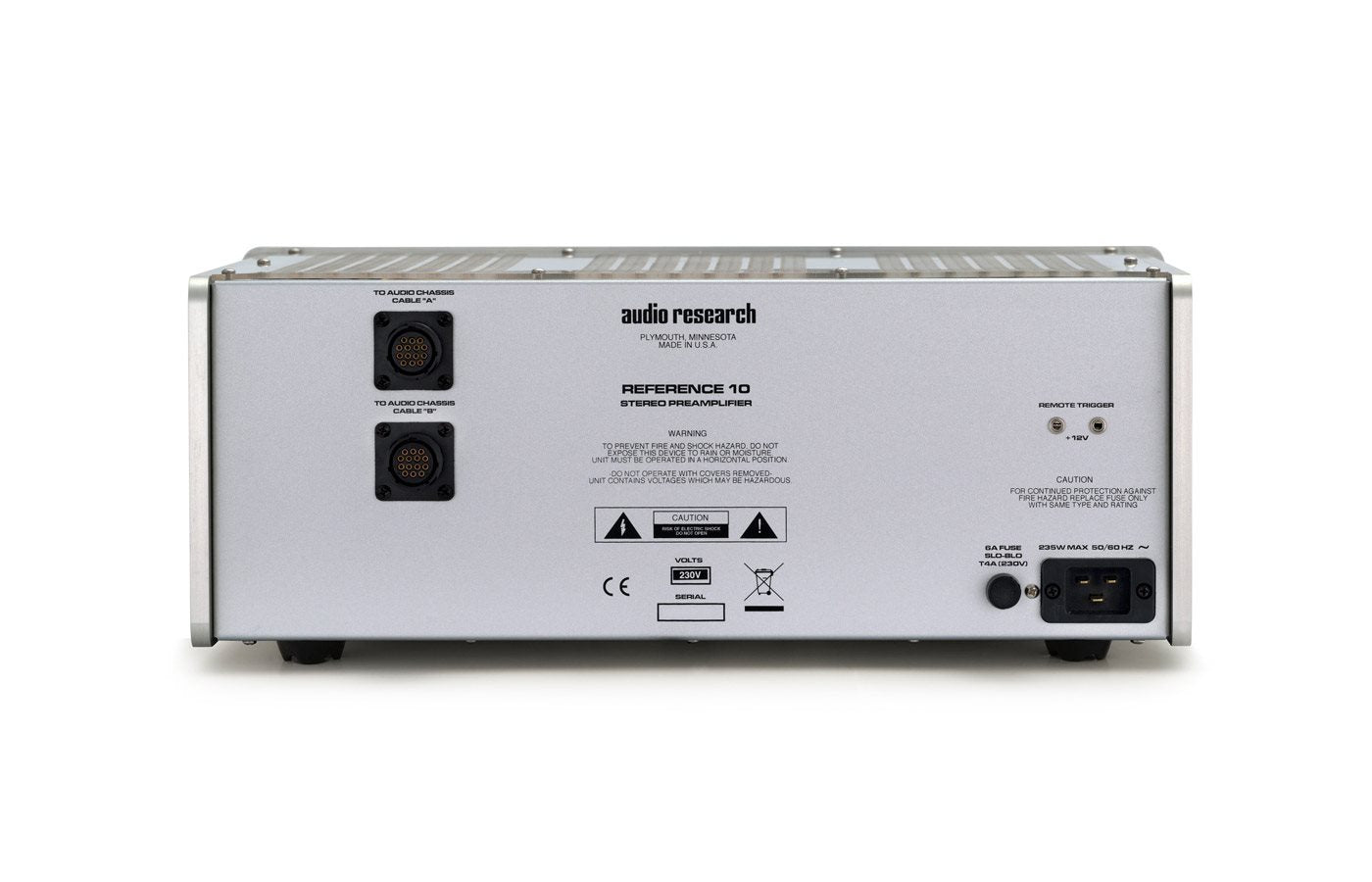

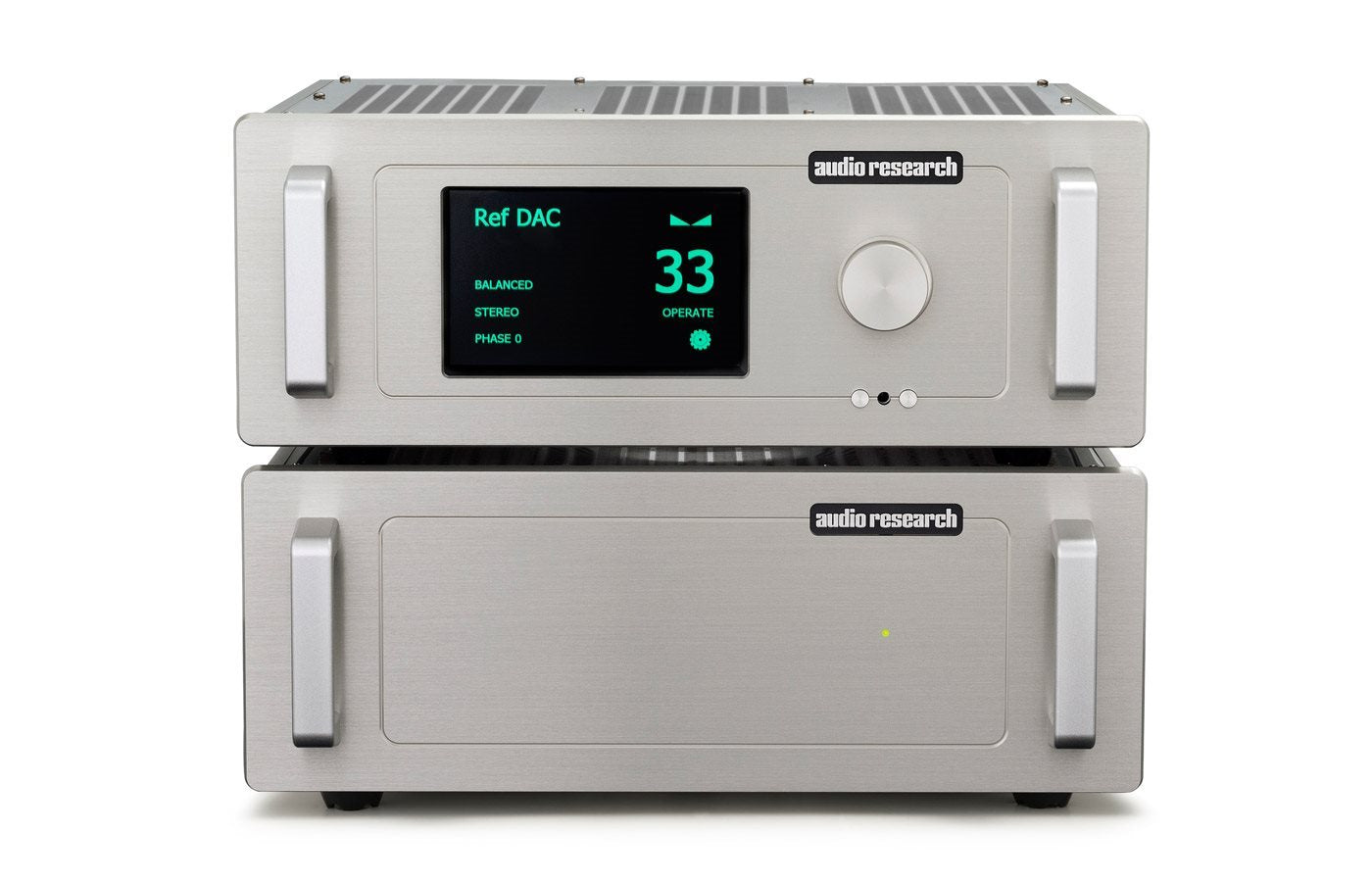

The Reference 10 follows a new aesthetic path as well. It has a very modern and elegant finish that will attract new admirers without alienating fans of Audio Research’s older products. The front panel of the main control unit has a new, large round volume knob on the right side, with two buttons under it for Power and Mute - the only two buttons on the unit - and a large display on the left. The ARC logo is above the knob on the right, making this the first asymmetrical Audio Research preamplifier ever. The left side of the front panel contains an interactive touch-screen display that allows the user to intuitively control almost all functions. The power supply chassis, connected to the main unit via two umbilical cords, simply has one green LED under its offset Audio Research logo.
All of the side panels are finished identically to the front panels: Natural anodized, one quarter-inch thick, with no screws visible. The entire chassis (including rear panel) is painted silver to complete the look. There are beautiful new, clear acrylic covers with a revised perforation pattern. And, there is no printing on the front panel of either chassis.
SPECIFICATIONS
- FREQUENCY RESPONSE: +0 -3dB 0.1Hz to 200kHz at rated output. (BALANCED, 200k ohms load.)
- DISTORTION: Less than .006% at 2V RMS Balanced output.
- GAIN: Main output (SE or BAL input)12dB Balanced output, 6dB Single Ended output. Tape output: 0dB. (Processor input: 0dB Balanced)

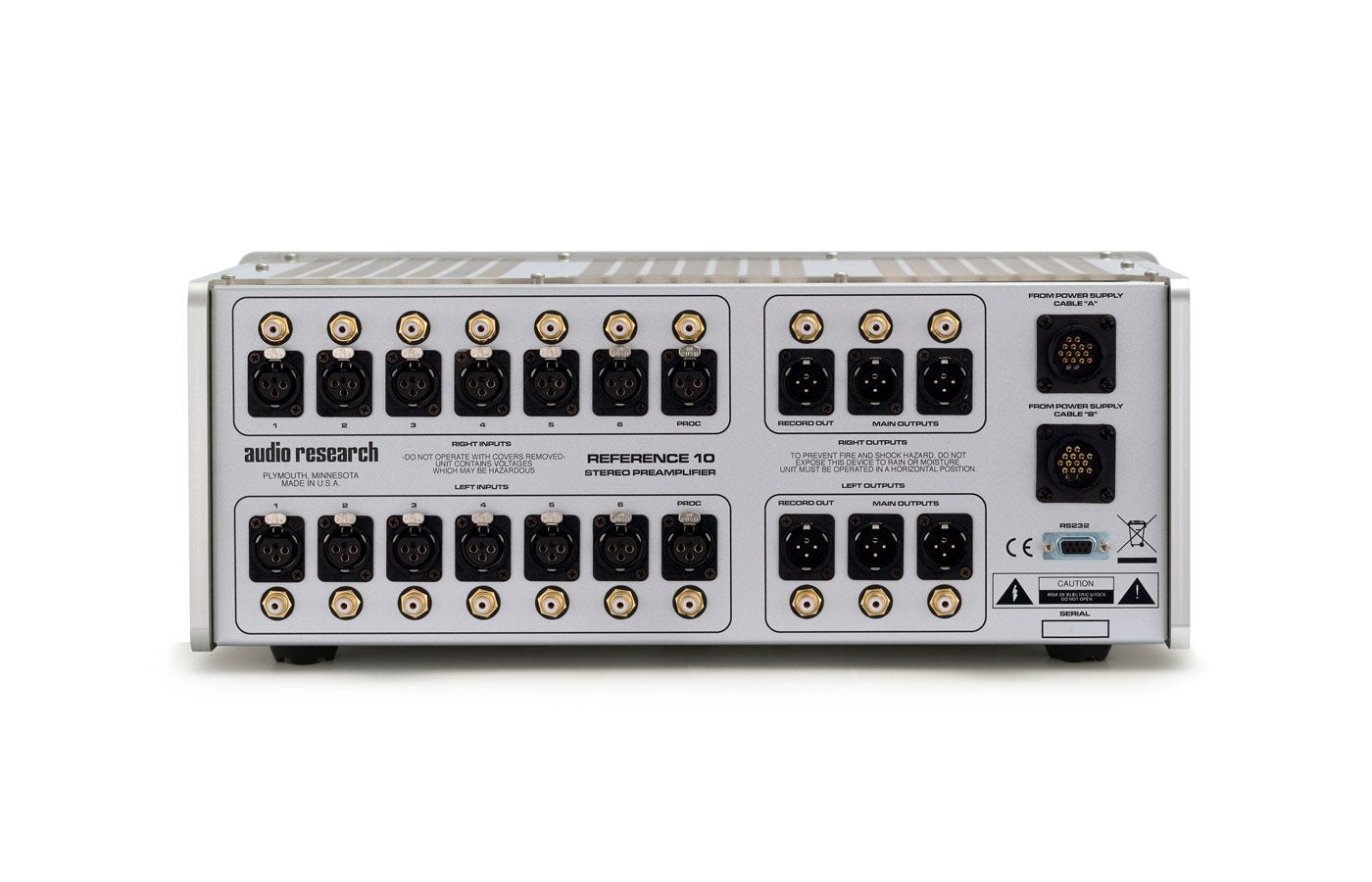

- INPUT IMPEDANCE: 120K ohms Balanced, 60K ohms SE, Inputs (7): 1, 2, 3, 4, 5, 6, PROCESSOR. (XLR and RCA connectors).
- OUTPUT IMPEDANCE: 600 ohms Balanced, 300 ohms SE main (2), 20K ohms minimum load and 2000pF maximum capacitance. Outputs (3): 2 main, 1 tape (XLR and RCA connectors).
- OUTPUT POLARITY: Non inverting.
- MAXIMUM INPUT: 20V RMS maximum Balanced, (10V RMS SE).
- RATED OUTPUTS: 2V RMS (1V RMS SE) into 200K ohm balanced load (maximum balanced output capability is 30V RMS at less than 0.5% THD at 1kHz).
- CROSSTALK: -80dB or better at 1kHz.
- CONTROLS: Volume (104 steps). Push Buttons: Power, Mute, Interactive Touch Panel. Rear RS-232 control and IR input.

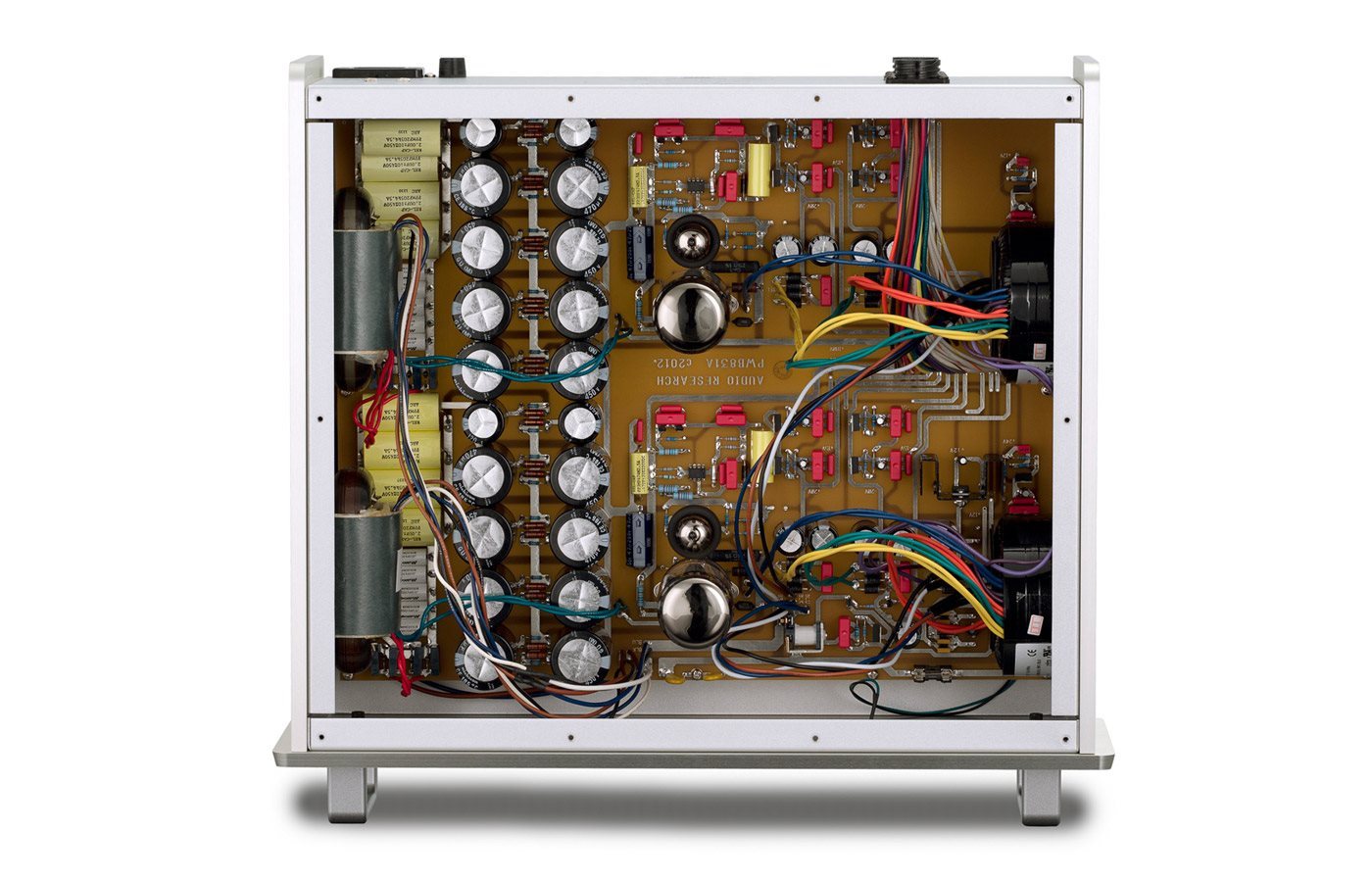

- POWER SUPPLIES: Electronically regulated low and high voltage supplies. Automatic 40 sec. warm-up/brown-out mute. Line regulation better than .01%.
- NOISE: 1.7uV RMS residual IHF weighted balanced equivalent input noise with volume at 1 (109dB below 2V RMS output.)
- TUBE COMPLEMENT: (8)-6H30P dual triodes, plus (2 each) 6550C and 6H30P in power supply.
